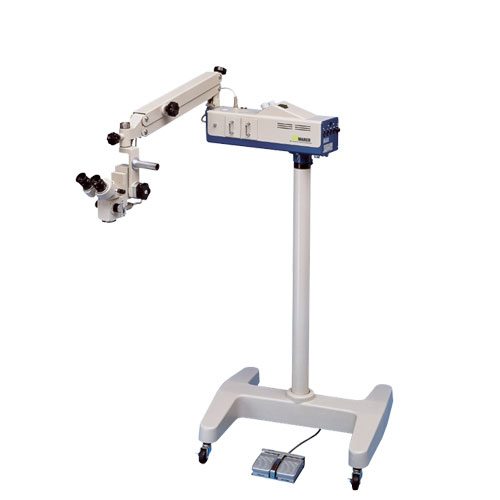

Surgiscope 3

The Marco SurgiScope 3 Operation Microscope combines a simple compact design with the uncompromising optical quality necessary for microsurgical techniques. Its list of features offers the practitioner a built-in three-step

Surgiscope 3

The Marco SurgiScope 3 Operation Microscope combines a simple compact design with the uncompromising optical quality necessary for microsurgical techniques. Its list of features offers the practitioner a built-in three-step magnification drum, motorized focusing, dual halogen lamp system, and a variety of optional accessories. Documentation is also possible with available video and 35mm camera kits. Affordably priced, the SurgiScope 3 is a true professional microscope dedicated for all in-office surgical procedures. Mounting options include a wall mount, table mount, unit mount, or floor stand.

Uncompromising Optics

Its list of features offers the practitioner a builtin three-step magnification drum, motorized focusing, dual halogen lamp system, and a variety of optional accessories

Compact Design

The Marco SurgiScope 3 Operation Microscope combines a simple compact design with the uncompromising optical quality necessary for microsurgical techniques.

Dedicated Performance

Affordably priced, the SurgiScope 3 is a true professional microscope dedicated for all in-office surgical procedures. Mounting options include a wall mount, table mount, unit mount, or floor stand.

  • Uncompromising Optics

    Its list of features offers the practitioner a builtin three-step magnification drum, motorized focusing, dual halogen lamp system, and a variety of optional accessories

  • Compact Design

    The Marco SurgiScope 3 Operation Microscope combines a simple compact design with the uncompromising optical quality necessary for microsurgical techniques.

  • Dedicated Performance

    Affordably priced, the SurgiScope 3 is a true professional microscope dedicated for all in-office surgical procedures. Mounting options include a wall mount, table mount, unit mount, or floor stand.

    Its list of features offers the practitioner a builtin three-step magnification drum, motorized focusing, dual halogen lamp system, and a variety of optional accessories

    Surgiscope 3 Specs

    Technical Details

    Binocular Tube 45° inclined with converging optics
    Eyepieces 12.5x
    Magnification Changes Built-in manual 3-step changer
    Total Magnification 4.6x; 7.7x; 12.3x
    Field of View 43.5mm; 26mm; 16.3mm
    Objective F=175mm (for ophthalmology) F=200, 250, 300, 350mm (for general micro-surgical fields)
    Focusing Speed Fine movement at 2.5mm/sec., stroke 36mm
    Working Distance 169mm
    Interpupillary Distance Adjustment 47 – 90mm
    Diopter Adjustment 0 – ±8D Illumination System
    Type Coaxial illumination by optical light-guide system
    Light Source 15V/150W halogen lamp
    Illumination Control Continuous adjustment
    Field of Illumination 45mm
    Filters Cobalt blue, red-free, heat-absorbing, UV retina shield
    Intensity of Illumination 80,000 lux Stand Section

    Dimensions

    Vertical Range of Counterbalanced Arm 15.75″ (400mm)
    Base Size 23.6″ x 22.0″ (600mm x 560mm)
    Weight 132lbs. (60kgs.)
    Height 59.84″ (1520mm)

    Power Specs

    Standard Accessories Electrical Power AC100, 115, 220, 240V, 50/60Hz
    Power Consumption 220VA

    Affordably priced, the SurgiScope 3 is a true professional microscope dedicated for all in-office surgical procedures. Mounting options include a wall mount, table mount, unit mount, or floor stand

    Surgiscope 3

    Simple Compact Design
    Uncompromising Optical Quality
    3-Step Magnification Drum
    Motorized Focusing
    Dual Halogen Lamp System
    Multiple Mounting Options
