TS-310 Tabletop Refractor & Chart System
A tabletop subjective refraction system that integrates chart and refractor into a single unit and significantly minimizes the examination footprint.

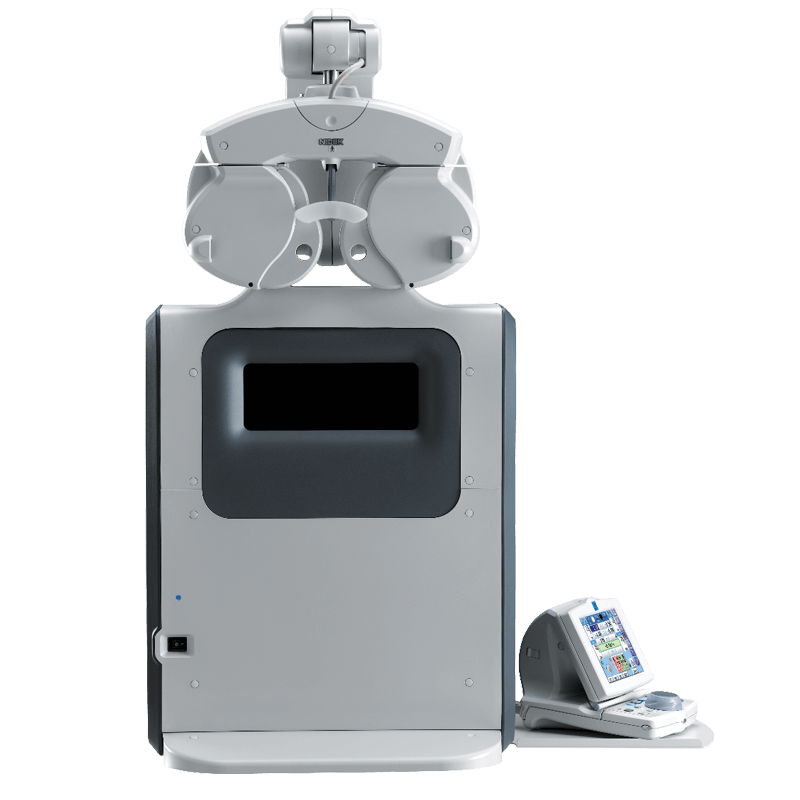

TS-310 Tabletop Refractor & Chart System
The TS-310 Tabletop Refractor & Chart System is a subjective refraction system that integrates chart and refractor into a single unit. Marco’s recognized quality examination is embodied in a new, groundbreaking design that redefines the conventional refraction systems and significantly minimizes the examination footprint. The TS-310 tabletop refractor fulfills the need for simple and reliable refraction equipment, in an attractive design, wherever space limitations exist.
- Combined digital Refractor and Chart System
- Ambidextrous Controls and dial button with S/C/A mode key
- Intuitive, high precision color LCD touch screen
- Same charts for far and near vision measurementv
- Contrast sensitivity test at 3 levels
- Ergonomic design with quiet and smooth lens change
- Flexible standing or seated measurement position

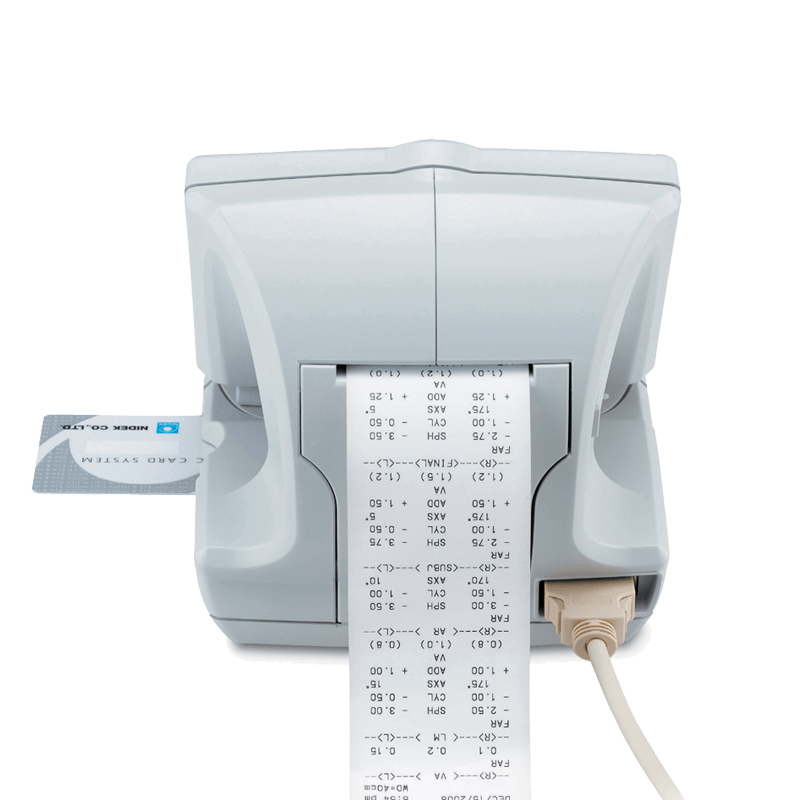

- Built-in high-speed line printer
- Versatile & compact footprint with simple installation
Refraction Workstations /
TS-310
Ergonomic Design
Beautiful ergonomic design enhances a stress-free examination environment for both operator and patient, while maintaining superior accuracy.
Smooth Lens Change
Speedy, smooth and quiet lens changing enables operator to make minute changes of prescription at the touch of a button.
Flexible Measurements
Regardless of personal measurement style, or sitting / standing ergonomic preferences, the TS-310 ensures comfortable examinations.

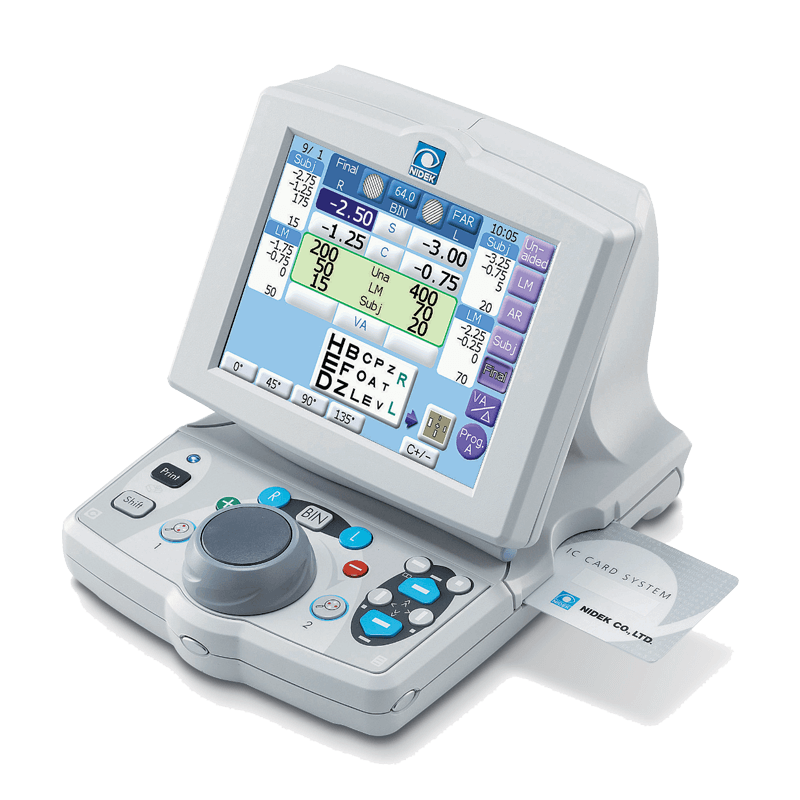

5.7" Touchscreen
The 5.7-inch color LCD touch screen displays all data with high visibility. Simple, understandable, and comfortable user interfaces ensure an effective operation
A tabletop subjective refraction system that integrates chart and refractor into a single unit. This groundbreaking design redefines the conventional refraction systems and significantly minimizes the examination footprint
Operation-Oriented Controls
The 5.7-inch color LCD touch screen displays all data with high visibility. Simple, understandable, and comfortable user interfaces ensure an effective operation. The main control dial, which has S / C / A mode key in its center, allows for quick and smooth refractive value changes.

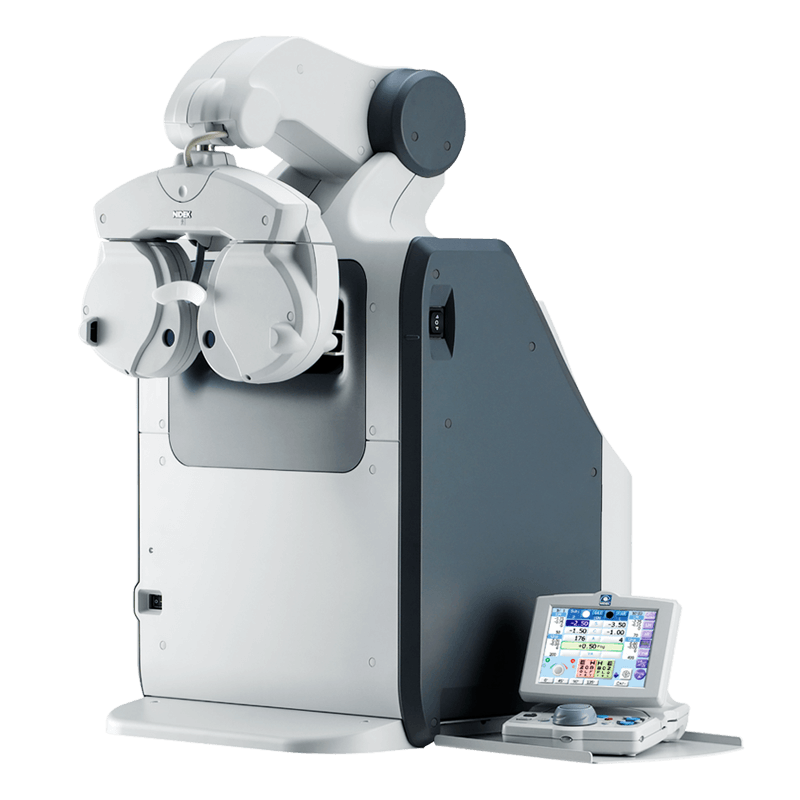

Sophisticated Refractor
Ergonomic design for a stress-free examination environment while maintaining superior accuracy. Speedy, smooth and quiet lens changes enables operator to make minute adjustments of prescription at the touch of a button. Detachable forehead rest and face shields, support easy maintenance. Antifogging protective glass lenses seal the unit.
Reliable Chart Unit
The TS-310 uniquely uses the same high resolution charts for both far and near testing. Switching between far and near is smoothly achieved with a single button push. The brilliant clarity of the LCD, allows visual acuity at 5m and near visual acuity at 40 cm to be measured with the same accuracy.
User Friendly Features

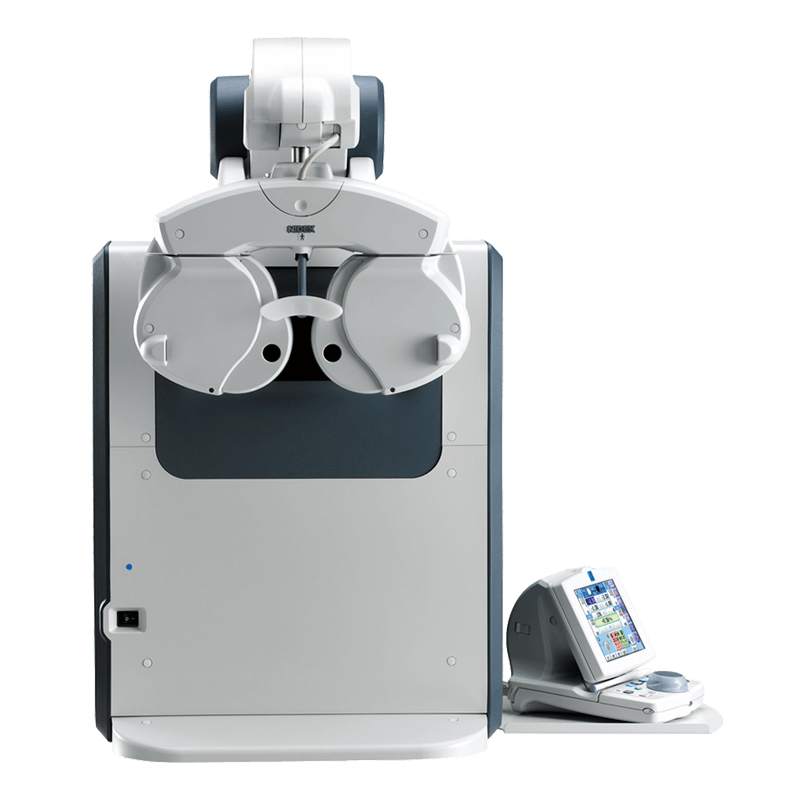

Clean symmetric design, without a refractor pole, allows examinations from either the right or left side of patients. In this way, TS-310 units can be positioned with the greatest flexibility. Regardless of personal measurement style, or sitting / standing ergonomic preferences, the TS-310 ensures comfortable examinations.

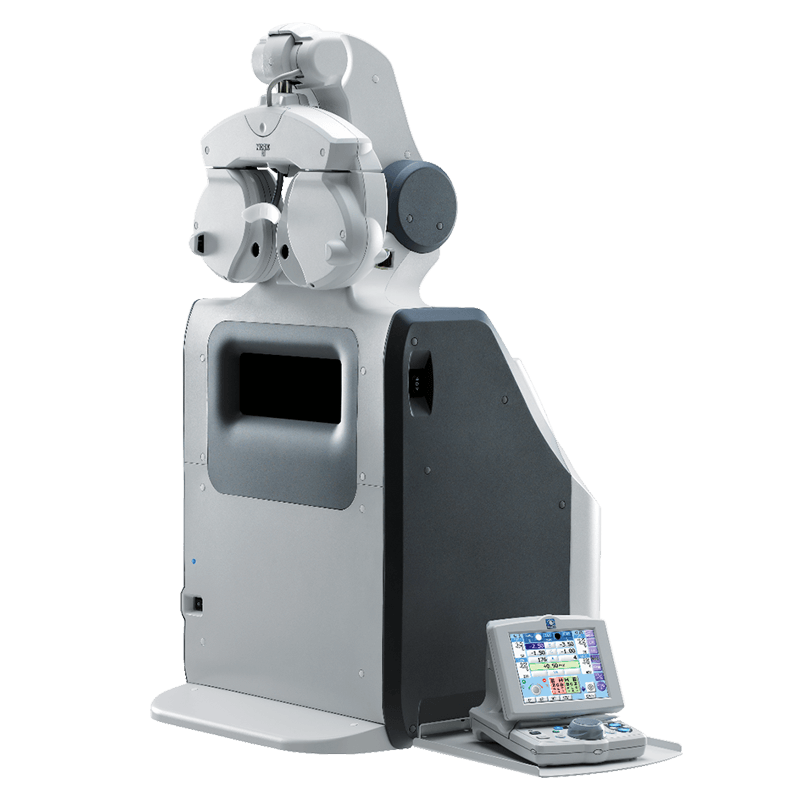

Scalable To Your Needs
Due to the compact and simple body shape, the TS-310 fits any table or location. Marco diagnostic products allow for quick and easy wireless data transfer* using the Eye Care card, Bluetooth, WLAN or infrared communication. This is helpful for making a simple integrated system without complicated wired connection.
Product Specs
Chart
| Chart Type | T, UK, M, P, PhM |
|---|---|
| Refraction Distance | Distance: 5 m, Near: 40 cm |
| Mask | Horizontal line, Vertical line, Single letter |
| Filter | Red / Green |
| Binocular vision test | Red-green, Prism |
Control Box
| Display | 5.7-inch Color |
|---|---|
| Printer | High Speed Line Printer |
Dimensions
| The Refractor Head Vertical Motion Unit Is At The Bottom | 446 (W) x 519 (D) x 763 (H) mm 17.6 (W) x 20.4 (D) x 30.0 (H) in |
|---|---|
| The Refractor Head Vertical Motion Unit Is At The Top | 446 (W) x 487 (D) x 907 (H) mm 17.6 (W) x 19.2 (D) x 35.7 (H) in |
| Mass | 32 kg, 70.5 lbs |
Accessories
| Standard Accessories | Forehead Rest, Face Shields, VD Check Adapter, Stylus Pen, Printer Paper, Dust Cover, Power Cord, Cover Plate, Cap, Screw, Hexagonal Wrench, Phillips Screwdriver |
|---|---|
| Optional Accessories | Eye Care Card, Communication Cable For An Auto Refractometer, Communication Cable For A Computer, Control Box Tray |
Refractor
| Measurable range | Sphere: -19.00 to +16.75 D (0.25 / 0.5 to 3 D increments) Cylinder: 0.00 to ±6.00 D (0.25 / 1 D increments) Axis: 0 to 180° (1°/5° increments) PD: 48 to 80 mm 5, 4 to 80 mm (100% convergence possible PD) Prism: 0 to 20Δ (0.1 / 0.5 / 2Δ increments) |
|---|---|
| Visual Field | 40° (VD = 12 mm), 39° (VD = 13.75 mm) |
| Forehead Rest Adjustment | 14 ±2 mm |
| Vertex Distance Marking | 12, 13.75, 16, 18, 20 mm |
| Level Adjustment | ±2.5° |
| Refractor Arm | Electrically-Driven |
| Up-&-Down Of Refractor Arm | 190 mm |
Auxiliary Lens Visual Field
| Cross Cylinder Lens | ±0.25 D |
|---|---|
| Occluder | Available |
| Pinhole Plate | ø2 mm |
| Red / Green Filter | Right Eye: Red, Left Eye: Green |
| PD check lens | Available |
| Fixed Cross Cylinder Lens | ±0.50 D |
| Spherical Lenses For Retinoscope | +1.5 / +2.0 D |
| Red Maddox Rod | Right Eye: Horizontal, Left Eye: Vertical |
| Dissociation Prism | Right Eye: 6ΔBU / Left Eye: 10ΔBI, Right Eye: 3ΔBD / Left Eye: 3ΔBU |
Power
| Power Supply | AC 100 to 240 V, 50 / 60 Hz |
|---|---|
| Power Consumption | 130 VA |
Super space-saving design of the TS-310 (from 0.4 to 0.7 m wide, 0.5 m deep), offers flexible room arrangement without compromising the precision of conventional refractions. The TS-310s compact footprint is ideal for office designs challenged by limitations of space.
TS-310 Tabletop Refractor & Chart System
