SC-1600 LCD Acuity Chart

The SC-1600 is a high resolution LCD screen providing a wide range of popular Snellen, ETDRS, and stereo testing options for binocular vision examinations. A dedicated, solid-state refracting device with an extreme emphasis on precise visual acuities.

SC-1600 LCD Acuity Chart

The SC-1600 is a high resolution LCD screen providing a wide range of popular Snellen, ETDRS, and stereo testing options for binocular vision examinations. A dedicated, solid-state refracting device with an extreme emphasis on precise visual acuities.

  • An aesthetically clean dedicated refracting device with an extreme emphasis on precise, high-quality visual acuities
  • Contrast sensitivity testing measures contrast at three distinctive levels below the normal threshold
  • Randomization feature helps to prevent patient letter/character memorization
  • User-friendly remote control includes an LCD chart display window for convenient operator reference
  • Ability to add up to 18 personalized images on removable SD card
  • Integrates with Marco’s Digital Refraction Systems

Advanced Display

Contrast sensitivity testing measures contrast at three distinctive levels below the normal threshold.

Modern Design

An aesthetically clean dedicated refracting device with an extreme emphasis on precise, high-quality visual acuities.

Dedicated Performance

A dedicated, solid-state refracting device with an extreme emphasis on precise visual acuities.

User-Friendly Remote

User-friendly remote control includes an LCD chart display window for convenient operator reference

  • Advanced Display

    Contrast sensitivity testing measures contrast at three distinctive levels below the normal threshold.

  • Modern Design

    An aesthetically clean dedicated refracting device with an extreme emphasis on precise, high-quality visual acuities.

  • Dedicated Performance

    A dedicated, solid-state refracting device with an extreme emphasis on precise visual acuities.

  • User-Friendly Remote

    User-friendly remote control includes an LCD chart display window for convenient operator reference

    The SC-1600 is a high resolution LCD screen providing a wide range of popular Snellen, ETDRS, and stereo testing options for binocular vision examinations. A dedicated, solid-state refracting device with an extreme emphasis on precise visual acuities

    Choose From 33 Popular Charts

    • 11 specialty/polarization charts
    • 9 Snellen charts: (5) 20/20 lines, (3) 20/15 lines, (2) 20/10 lines
    • 5 Numbers charts: (2) 20/20 lines, (1) 20/15 line, (1) 20/10 line
    • 4 Illiterate E charts: (2) 20/20 lines, (1) 20/15 line, (1) 20/10 line
    • 3 Children’s charts: (1) 20/20 line

    Marco CP-770 Automatic Projector

    • Marco SC-1600 Monitor
    • Marco SC-1600 Monitor
    • Marco SC-1600 Monitor

    Clean And Modern Design

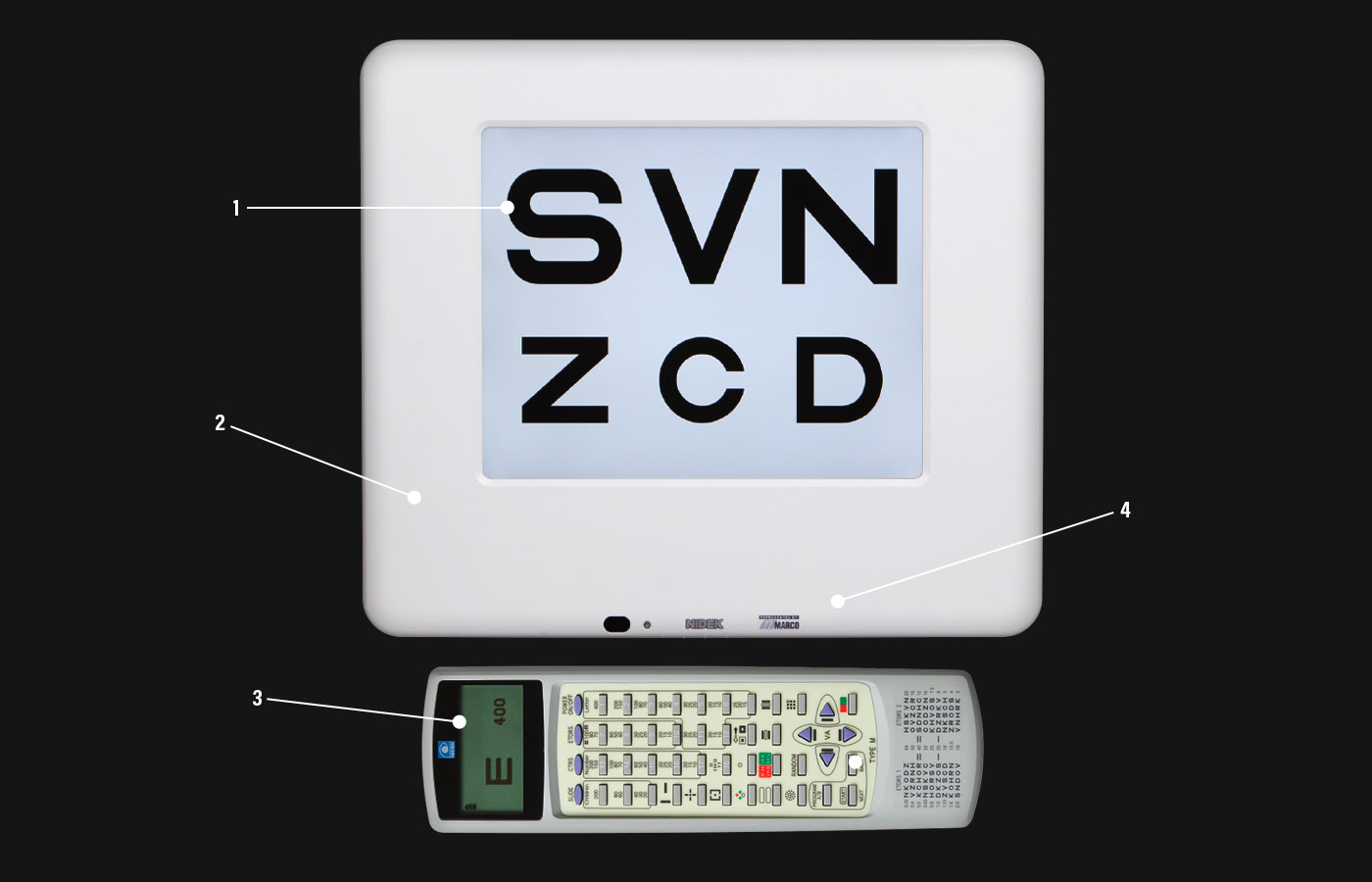

    Marco’s SC-1600 LCD acuity chart is an aesthetically clean dedicated refracting device with an extreme emphasis on precise, high-quality visual acuities. A white background with uniform brightness provides greater contrast and sharper letter edge quality. Contrast sensitivity testing measures contrast at three distinctive levels below the normal threshold.

    Optimized Remote Control

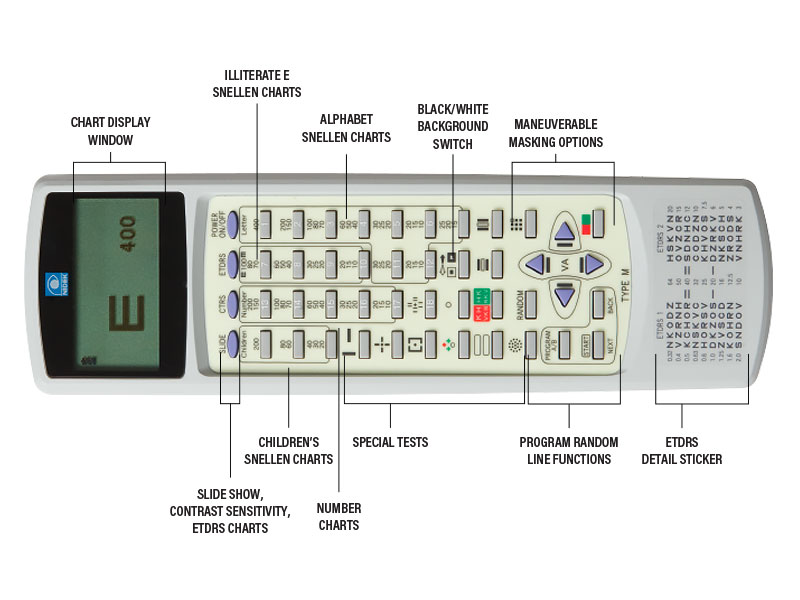

    Instant random access of 33 popular charts via infrared remote control. Chart masking buttons allow the user to isolate individual lines horizontally, vertically, as well as individual letters, numbers, and characters. Three programming buttons isolate separate programs for individual users.

    Marco SC-1600 Acuity Chart Remote Control

    • Marco SC-1600 Monitor integrated with refraction system
    • Marco SC-1600 Monitor Integration With TRS-5100 Refractor

    Seamlessly Integrated

    The SC-1600 integrates seamlessly with Marco’s digital refraction systems. This allows for communication between the SC-1600 and devices such as the TRS-5100 Refraction System, providing the ability to control chart functions directly from your refractors control unit.

    SC-1600 LCD Acuity Chart Specs

    Technical Details

    Type 17-inch SXGA LCD with long-lasting backlight
    Resolution 1280 x 1024 pixels
    Chart Window Size 13.6″ (W) x 10.86″ (H)
    Brightness 200 cd/m2 (5 level variable)
    Charts Type M, Type UK, Type P, Type T
    Distance of Installation 2.5-7m (8’–23′) (in the Mirror mode; 5 to 7mm), 0.5m increments
    Chart Selection Devices Remote control or control panel for TRS (RT-5100) refraction system
    Memory Card CF card / Built-in card slot
    Power Supply AC100 V- 240 V, 50 / 60 Hz
    Power Consumption 100 VA

    Dimensions

    Measurements 20.5″ (W) x 18″ (H) x 1.9″ (D)
    Mass (Approximate) 11 lbs.

    Accessories

    Standard Accessories Anchor Screws (x4), Mounting

    The SC-1600 utilizes a randomization feature which helps to prevent patient letter/character memorization. You can also add up to 18 personalized images on removable SD card.

    SC-1600 LCD Acuity Chart

    High-Resolution LCD
    Aesthetically Clean
    33 Popular Charts
    Randomization Feature
    Optimized Remote Control
    Refractor Integration
    Removable SD Card
