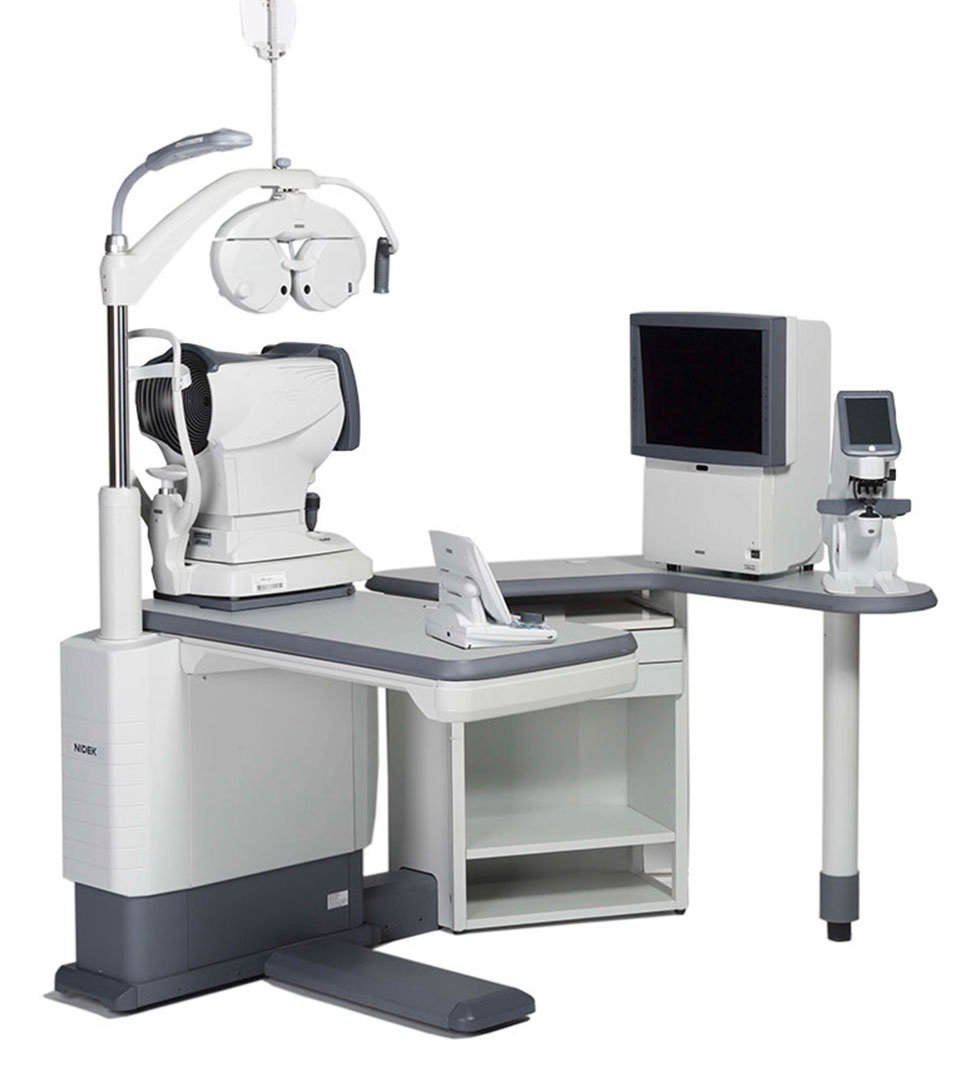

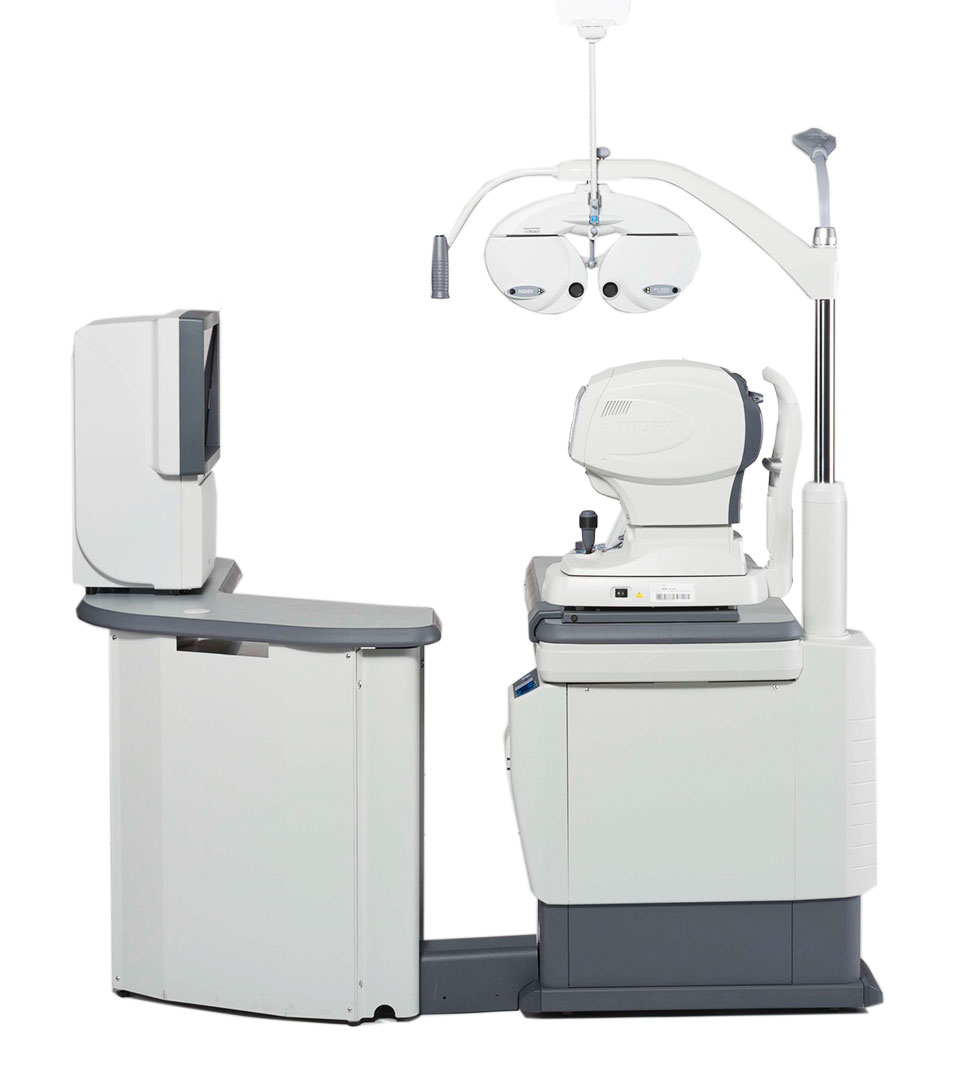

EPIC-6100 Refraction Workstation
EPIC-6100 Refraction Workstation
Achieve peak efficiency with the Marco EPIC-6100 Refraction Workstation which allows you to combine your digital refractor and acuity chart, autorefractor/keratometer, OPD, and auto lensmeter into one compact system, taking up only a 5×6 foot space.
EPIC-6100 Refraction Workstation
Achieve peak efficiency with the Marco EPIC-6100 Refraction Workstation which allows you to combine your digital refractor and acuity chart, autorefractor/keratometer, OPD, and auto lensmeter into one compact system, taking up only a 5×6 foot space. Customize your system to meet the needs of your practice with multiple ARK, NCT, OPD, and lensmeter configuration options.
- Custom ARK, NCT, OPD and LM configurations
- Compact, 5’ x 6’ footprint
- Effortless vertical adjustment of main table
- Optional second table adds an additional device
- Remote touchscreen display with intuitive, ergonomic keyboard for simple, one-handed operation
- Seamless data connectivity for streamlined data flow
- OPD wavefront maps are displayed for more effective diagnostics and patient education
- 13.5 JACHAPO credit hours through the Marco training institute
- Integrates with most EMR/EHR systems
Refraction Workstations /
EPIC-6100
Features:
- Custom ARK, NCT, OPD and LM configurations
- Compact, 5’ x 6’ footprint
- Effortless vertical adjustment of main table
- Optional second table adds an additional device
- Remote touchscreen display with intuitive, ergonomic keyboard for simple, one-handed operation
- Seamless data connectivity for streamlined data flow
- OPD wavefront maps are displayed for more effective diagnostics and patient education
- 13.5 JCAHPO credit hours through the Marco training institute
- Integrates with most EMR/EHR systems
![Marco EPIC Refraction Workstation](https://marco.com/wp-content/uploads/2019/08/epic6100tech.png)
See more patients without having to add more exam lanes with the EPIC-6100 Refraction Workstation.
![Marco M3 ARK SLD vs. LED Technology](/images/product-epic6100.png)
Quick, Effortless Refractions
- Programmable monocular fogging better suppresses accommodation and allows more realistic refractions with both eyes open
- Standardization of glare testing ensures consistent and repeatable assessment of glare visual acuities, and contrast sensitivity testing aids in cataract evaluation
- Tilt screen and angled refractor head for realistic near testing
- Instantly compares patients’ old and new prescriptions
- “Favorites” page for quick and easy access to frequently used charts
- Larger forehead rest range of 25±2 mm accommodates more patients
Streamline Your Process
Without the need to move patients from one device to another, the EPIC-6100 provides a more efficient exam process. You can see more patients without adding more exam lanes.
![EPIC-6100 Refraction Workstation with Patient](https://marco.com/wp-content/uploads/2019/08/epicpatient.png)
![Marco ARK-1s Autorefractor Confidence Index Indicator](/images/product-epic-6100.png)
Customized to Meet Your Needs

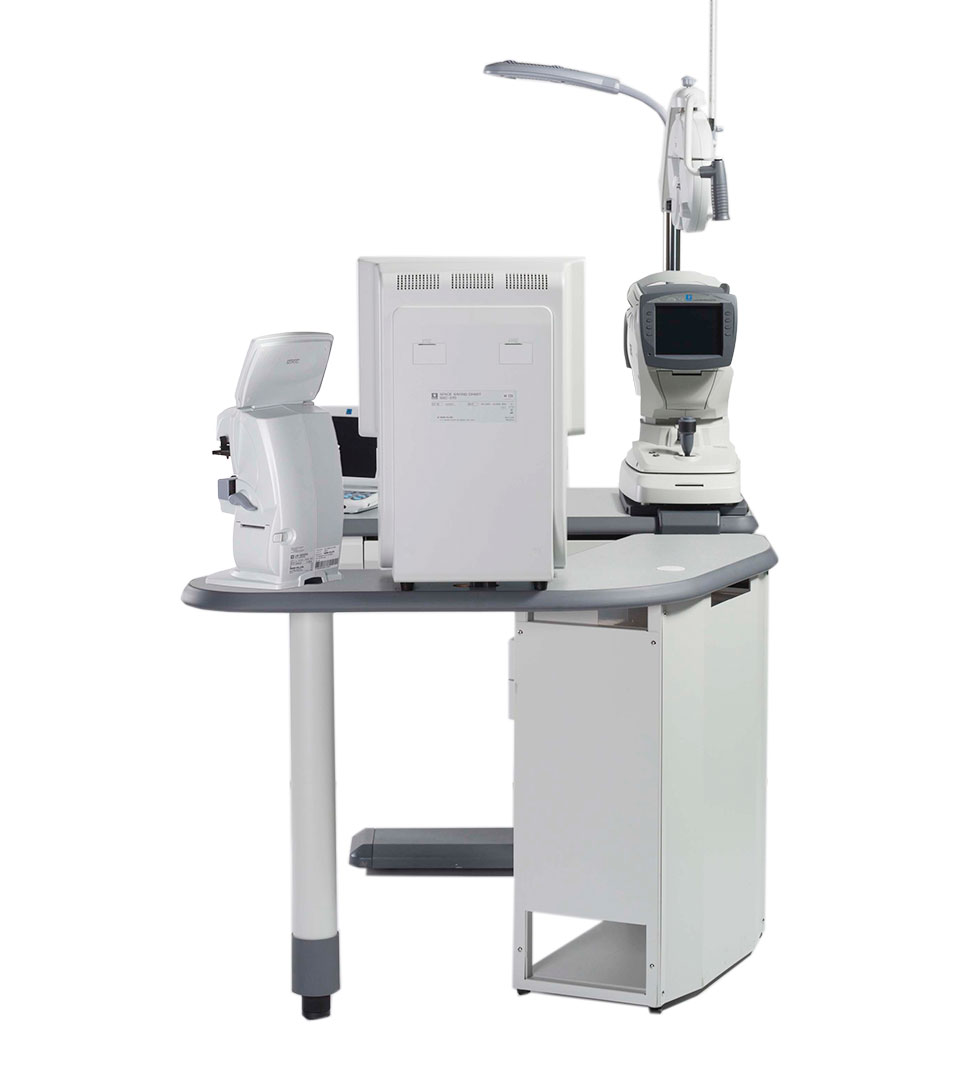

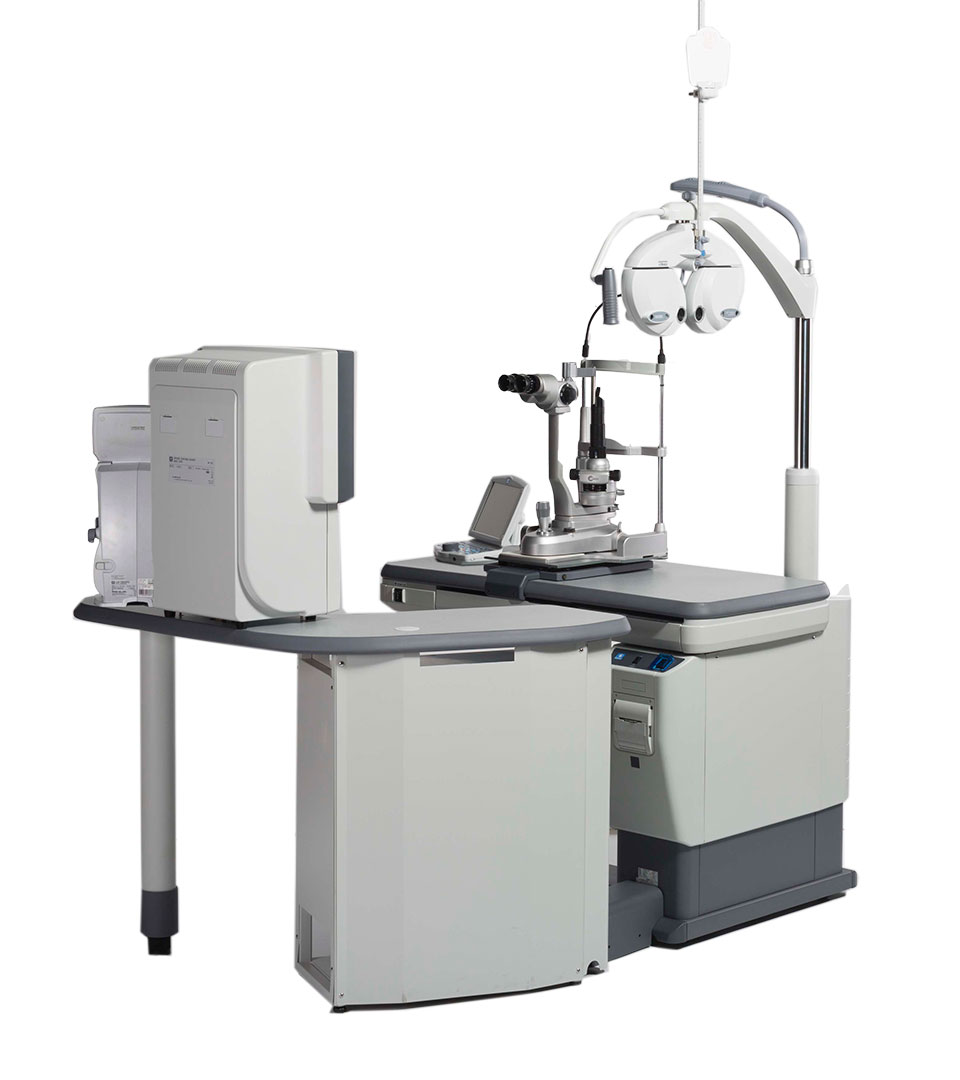

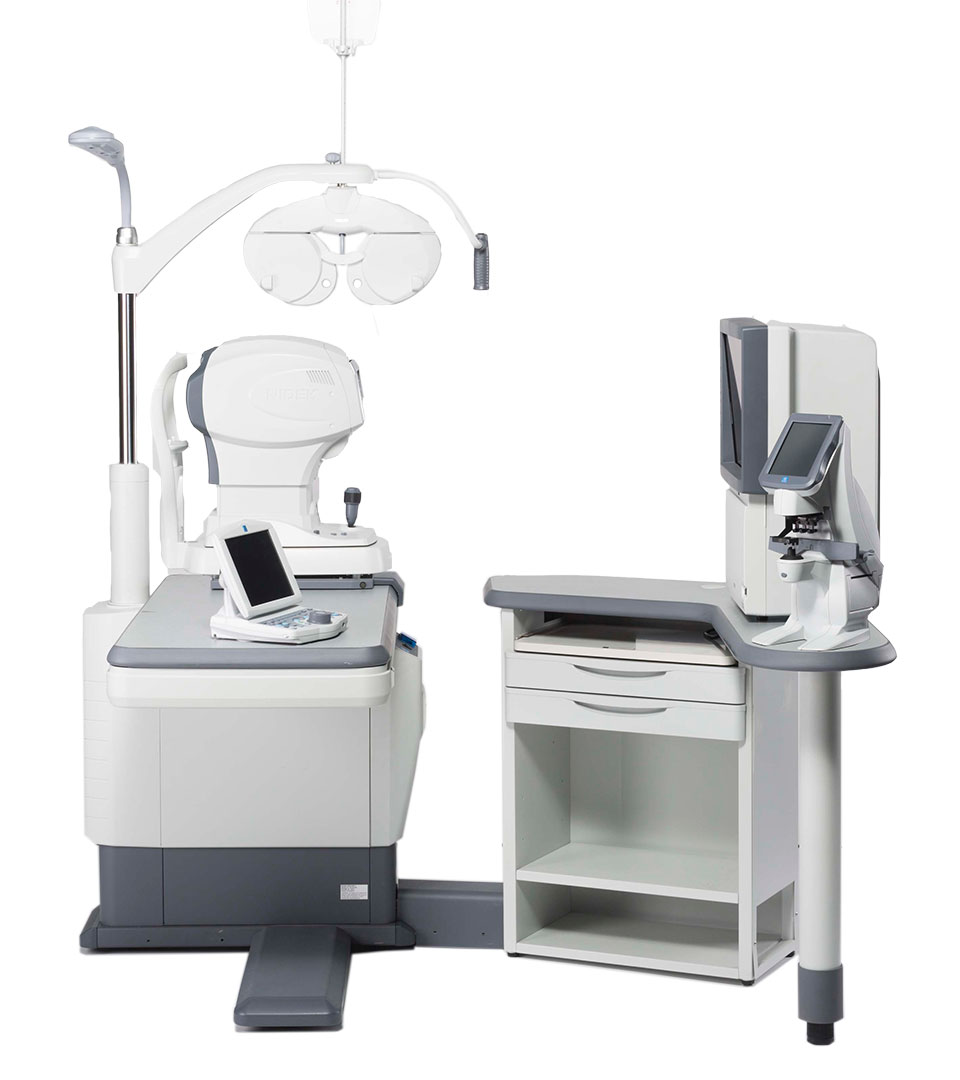

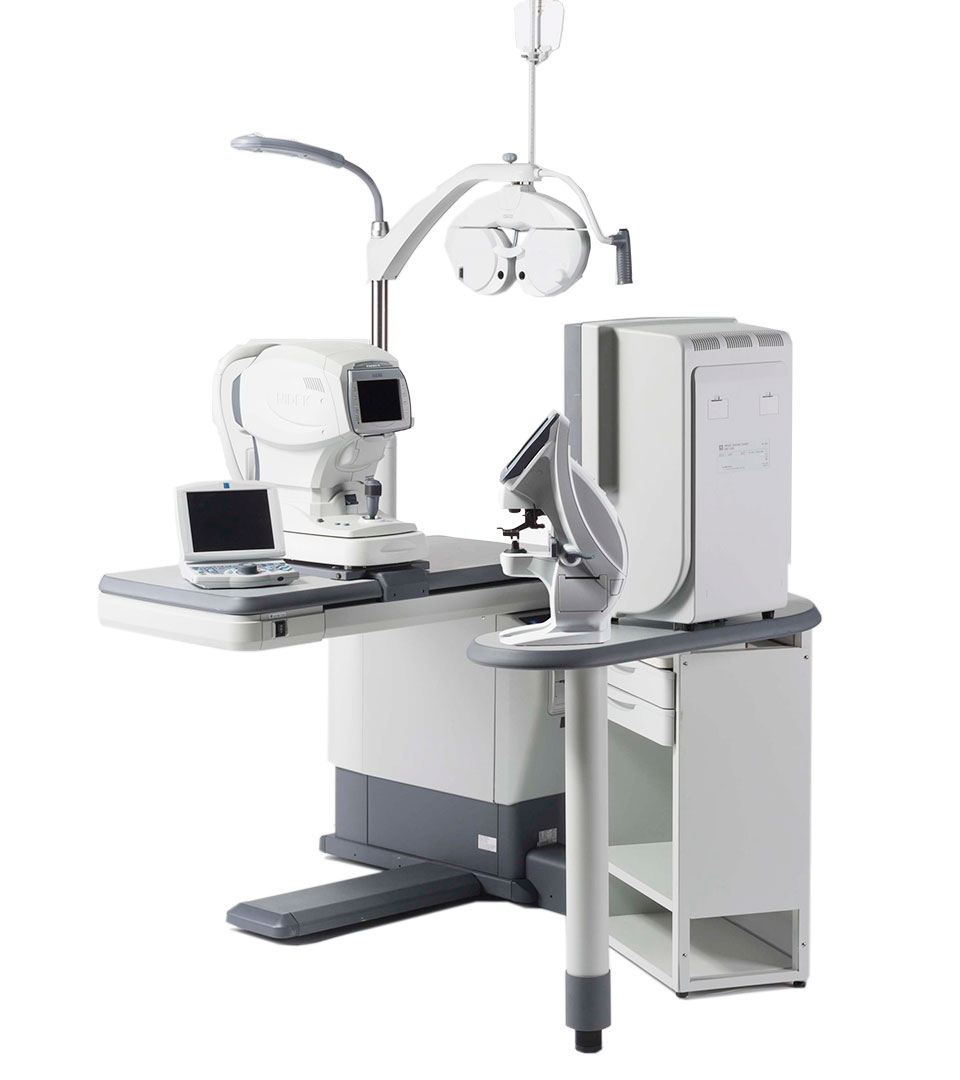

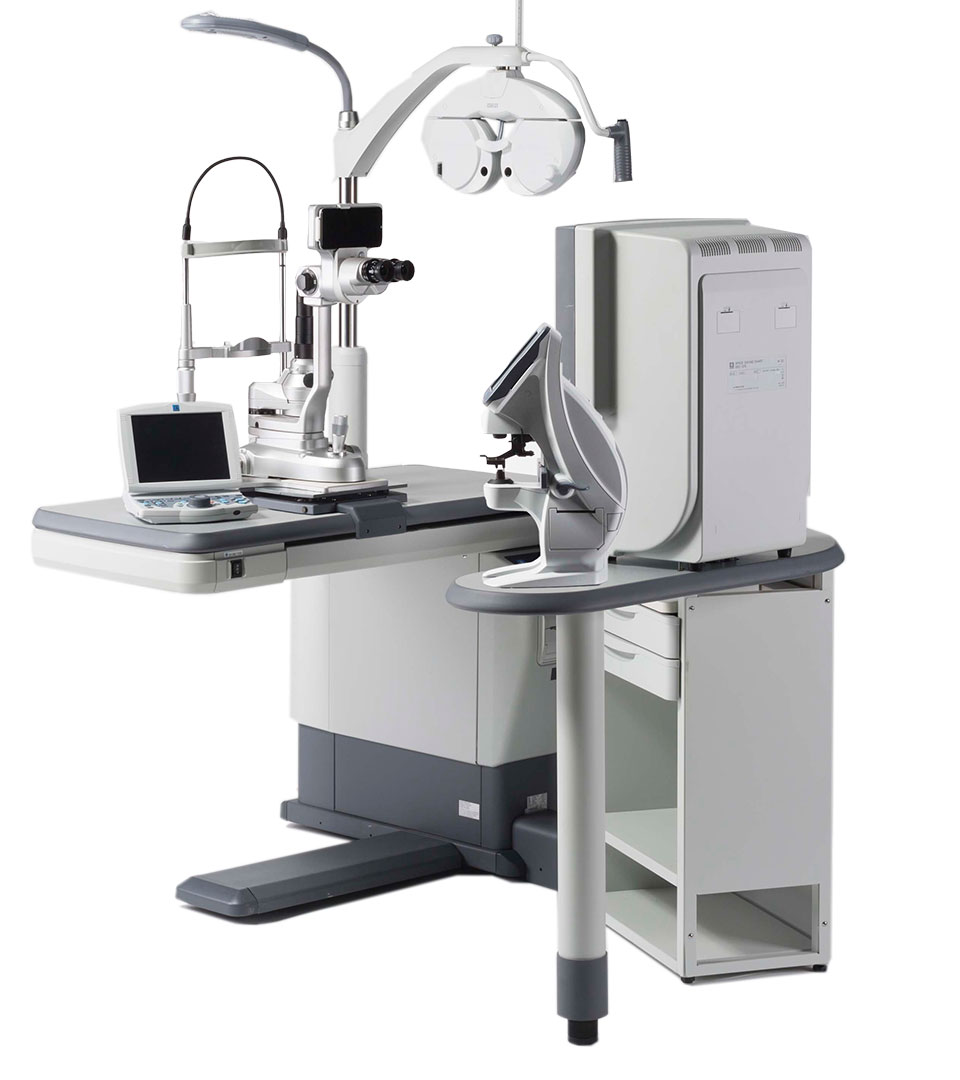

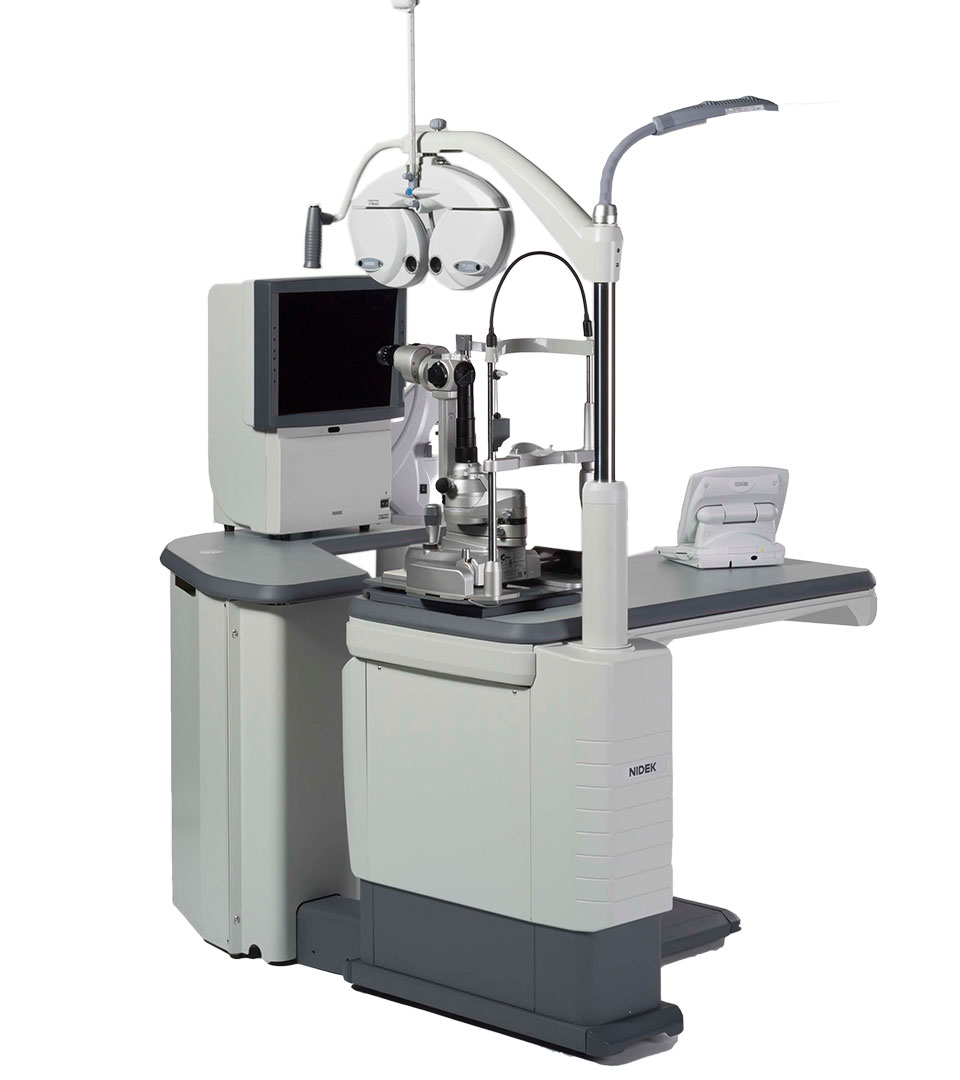

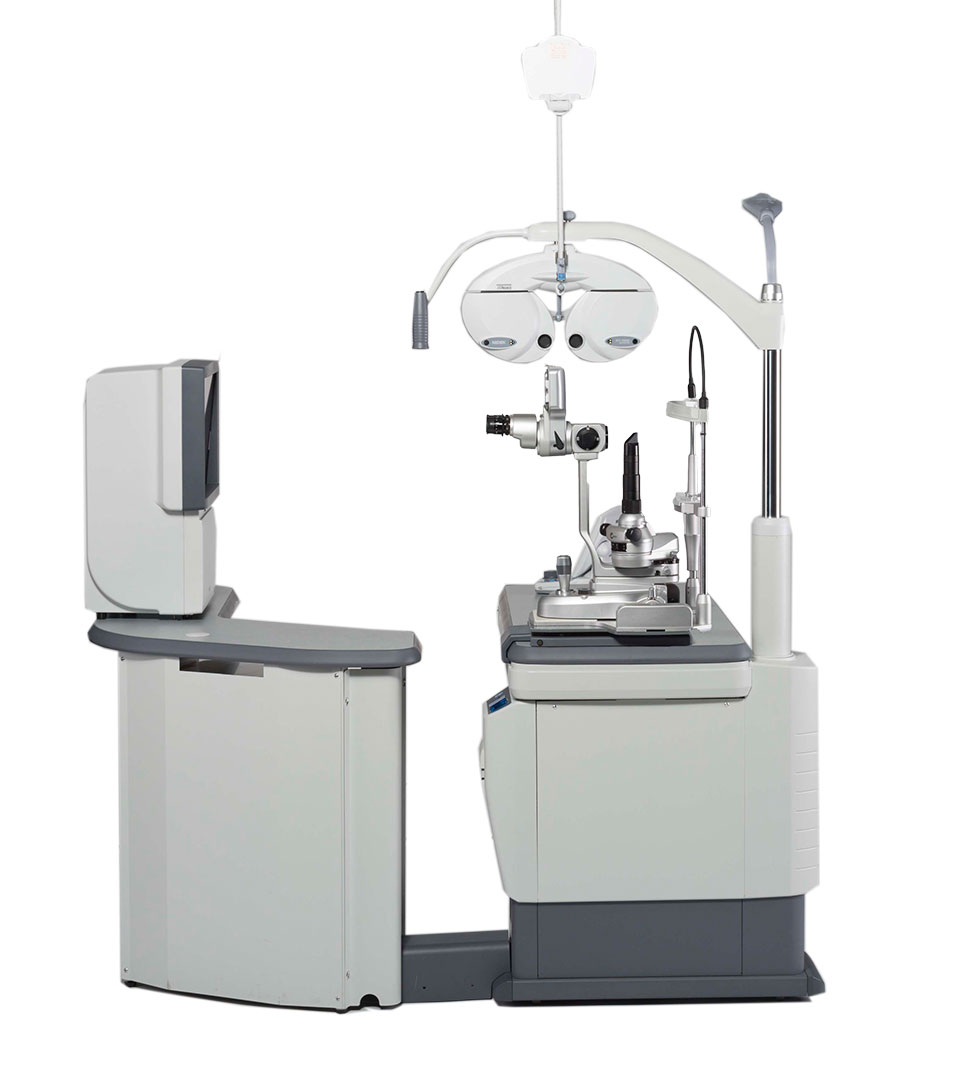

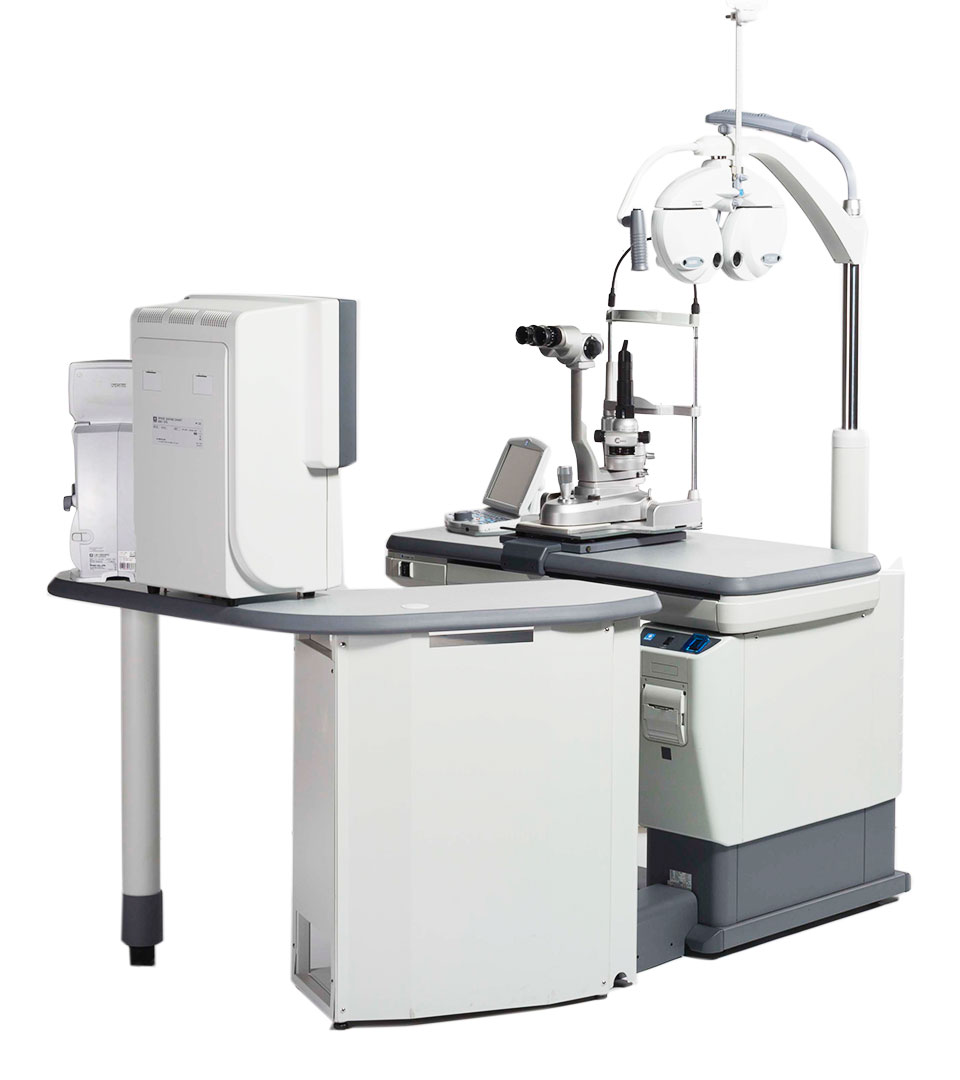

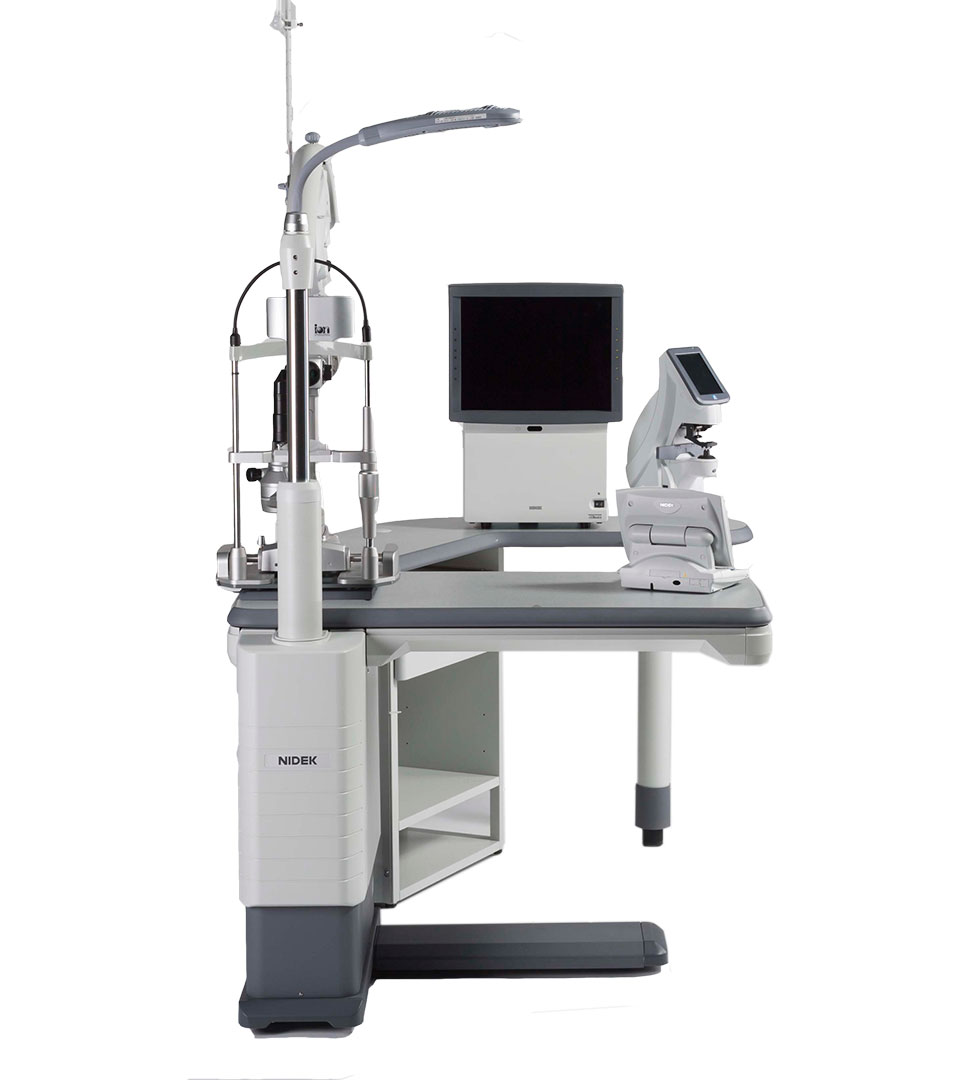

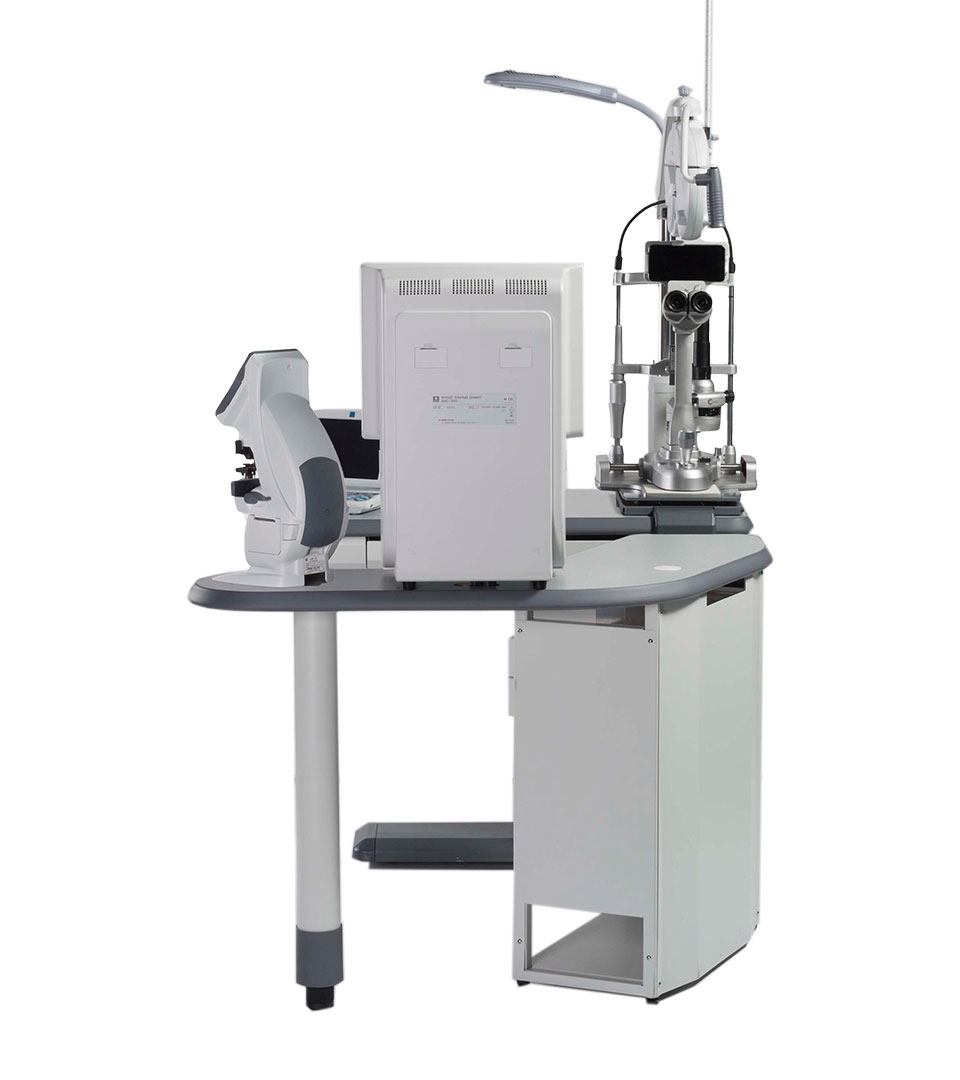

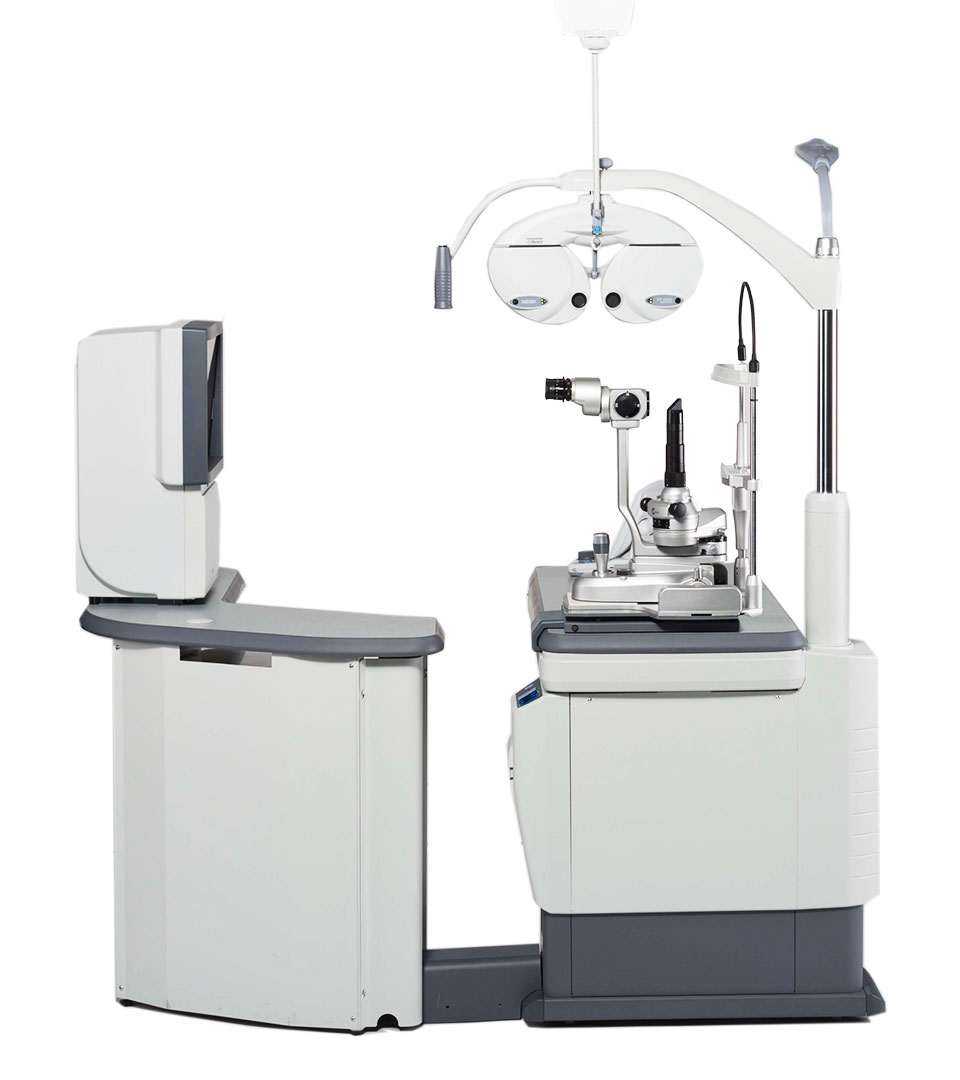

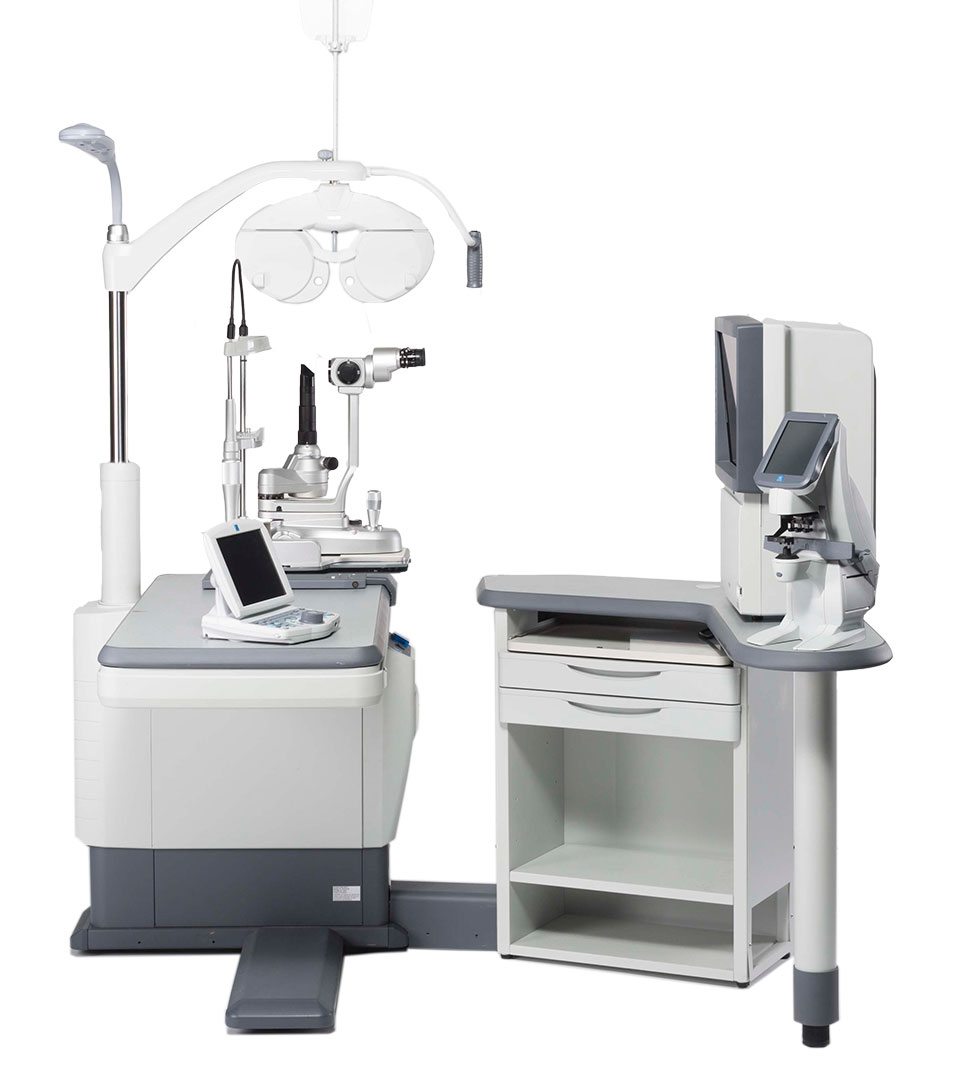

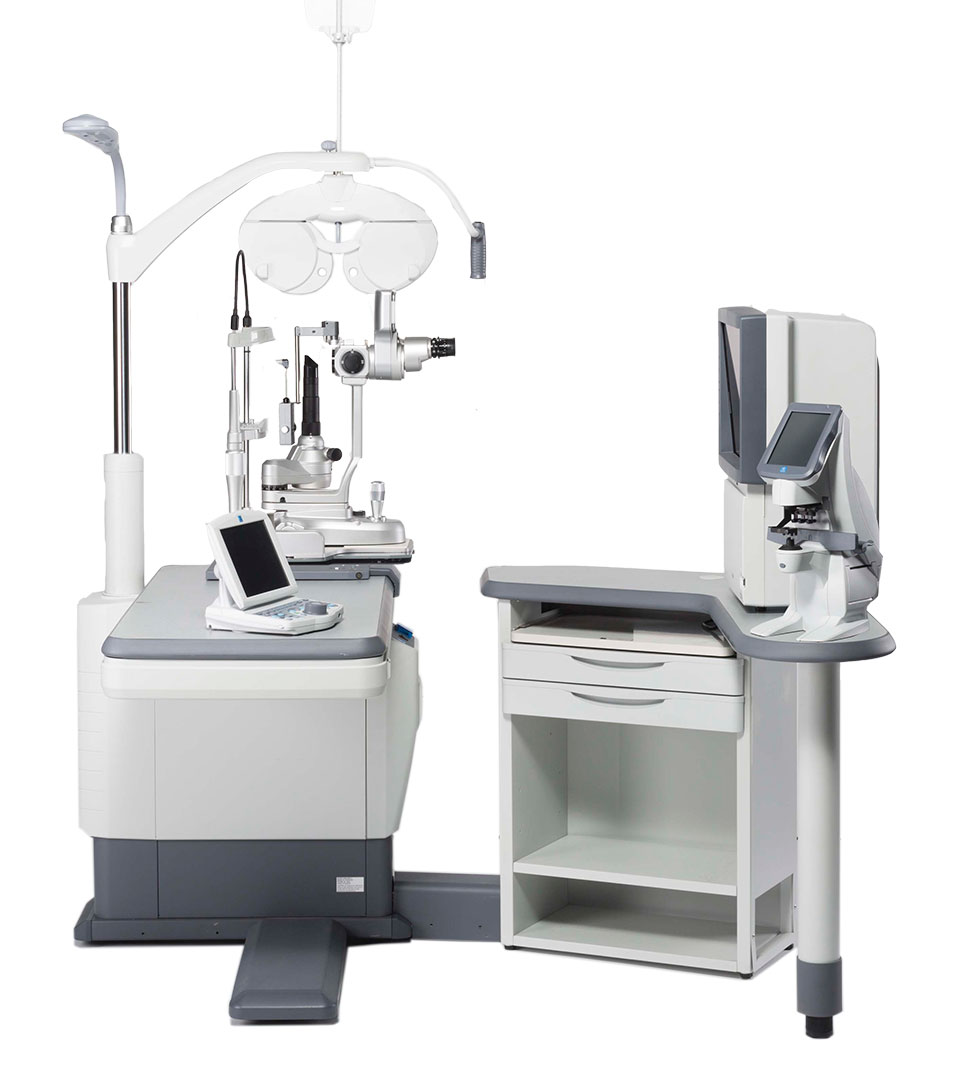

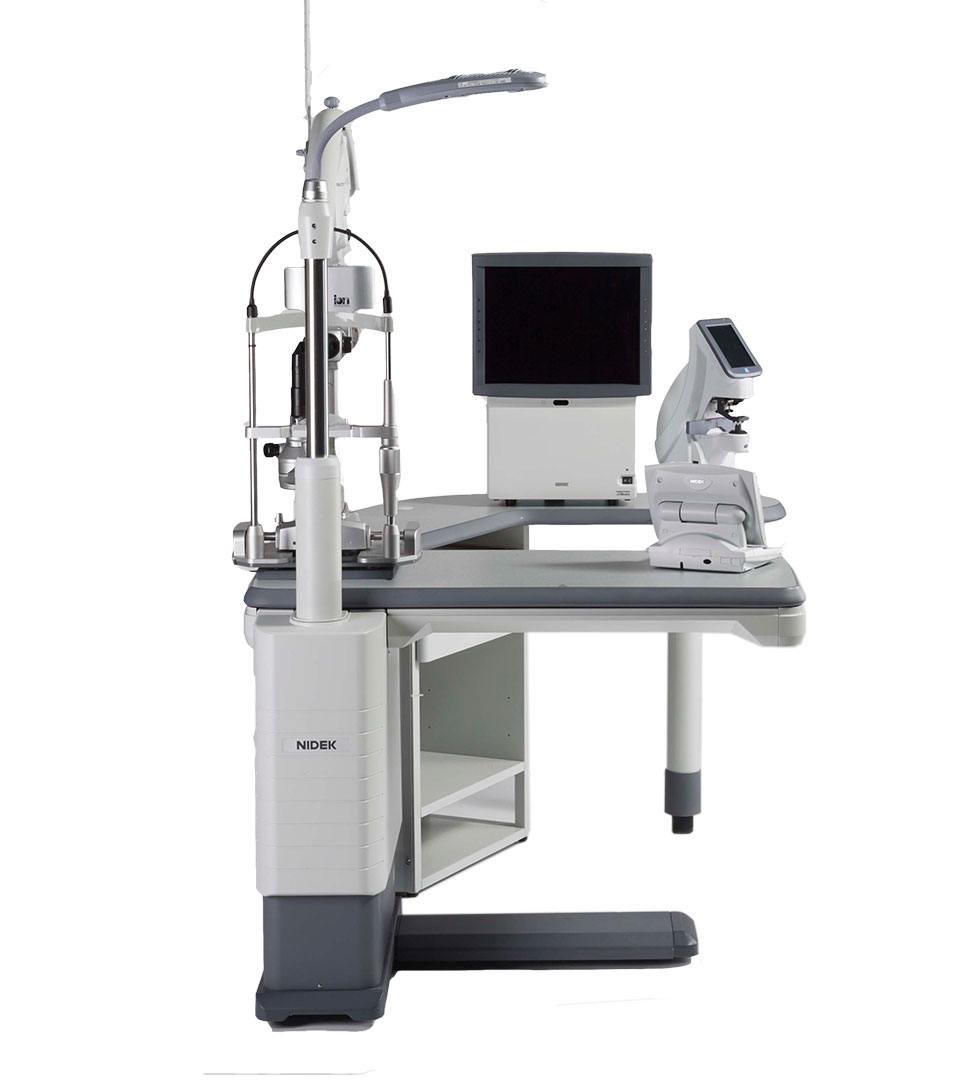

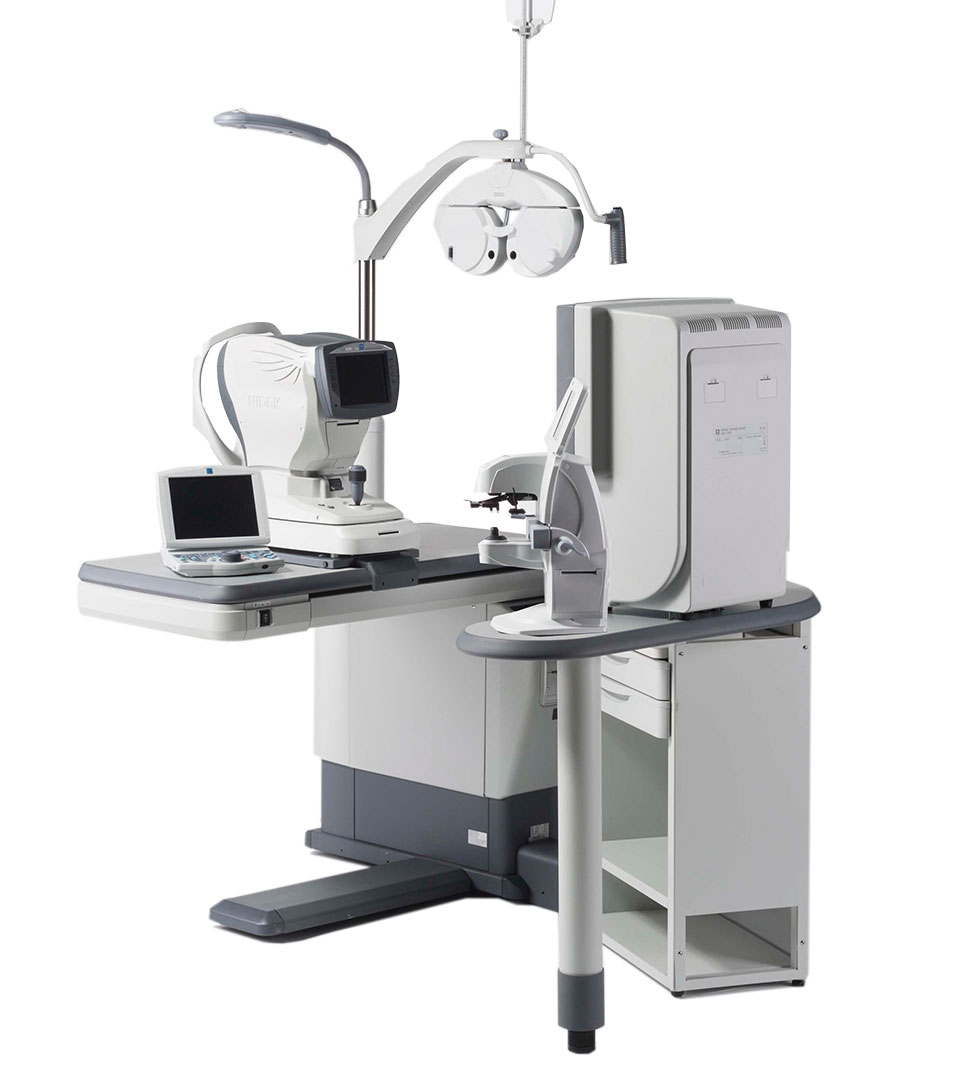

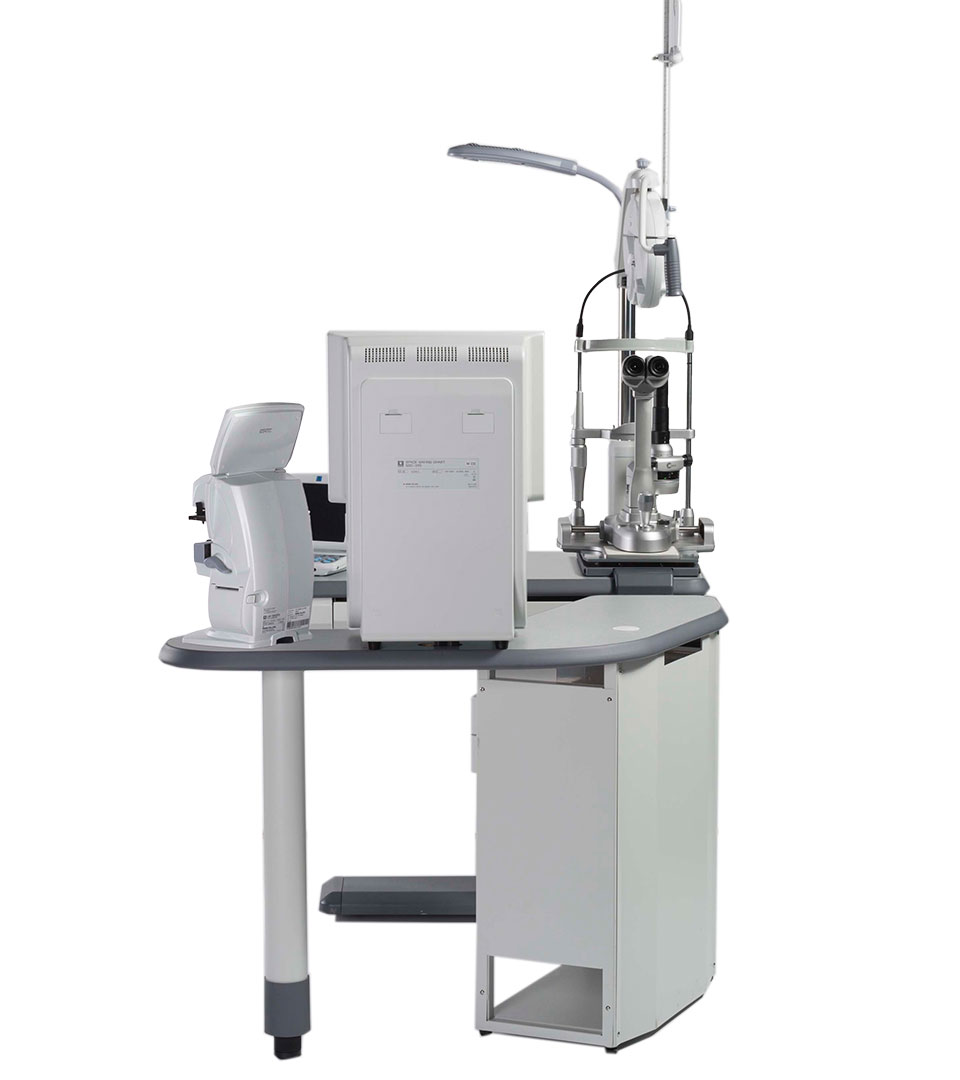

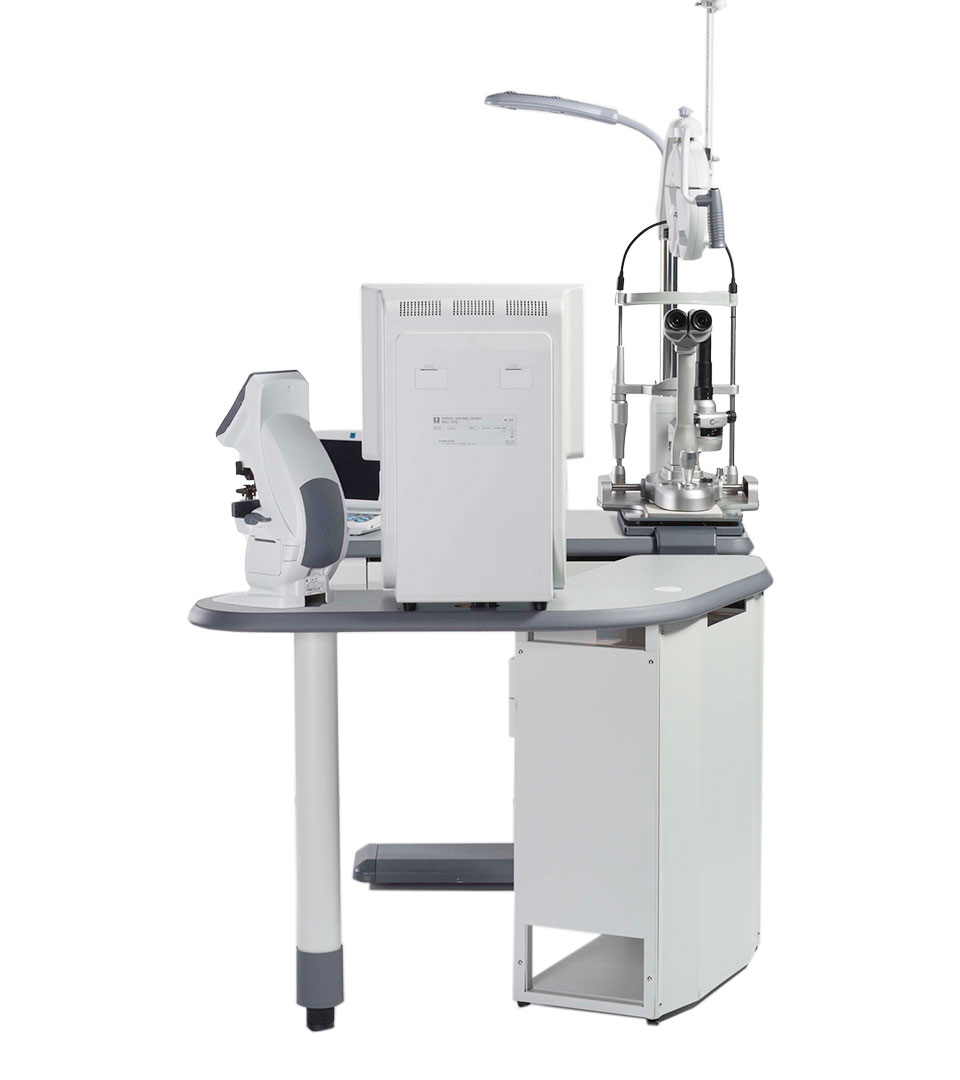

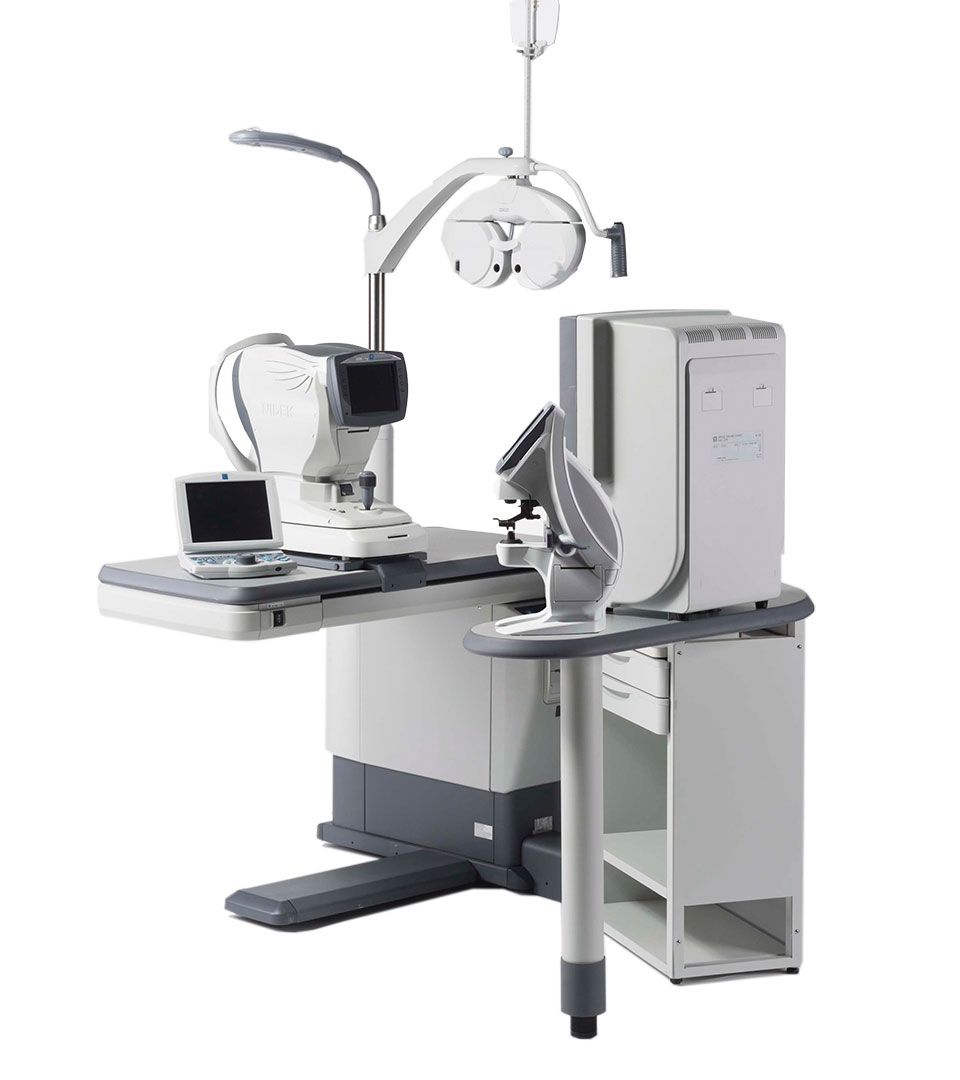

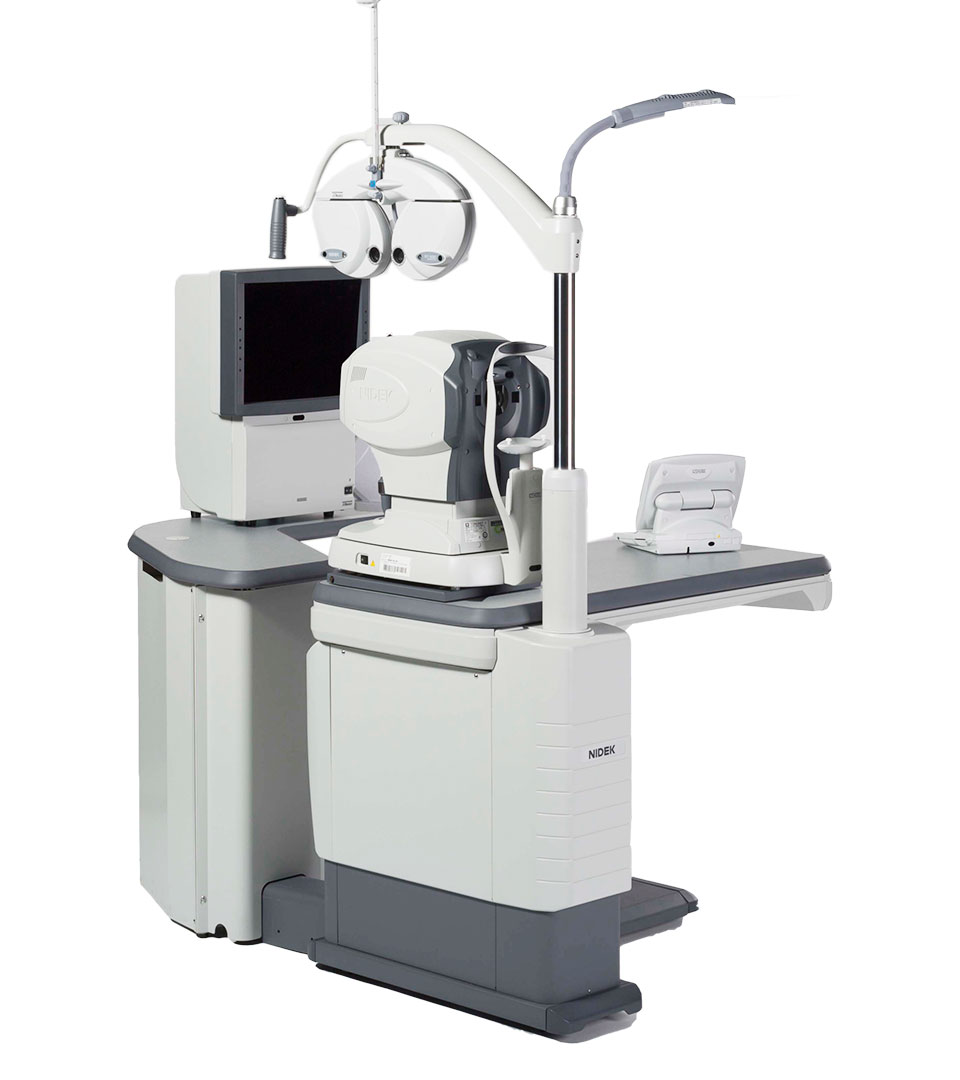

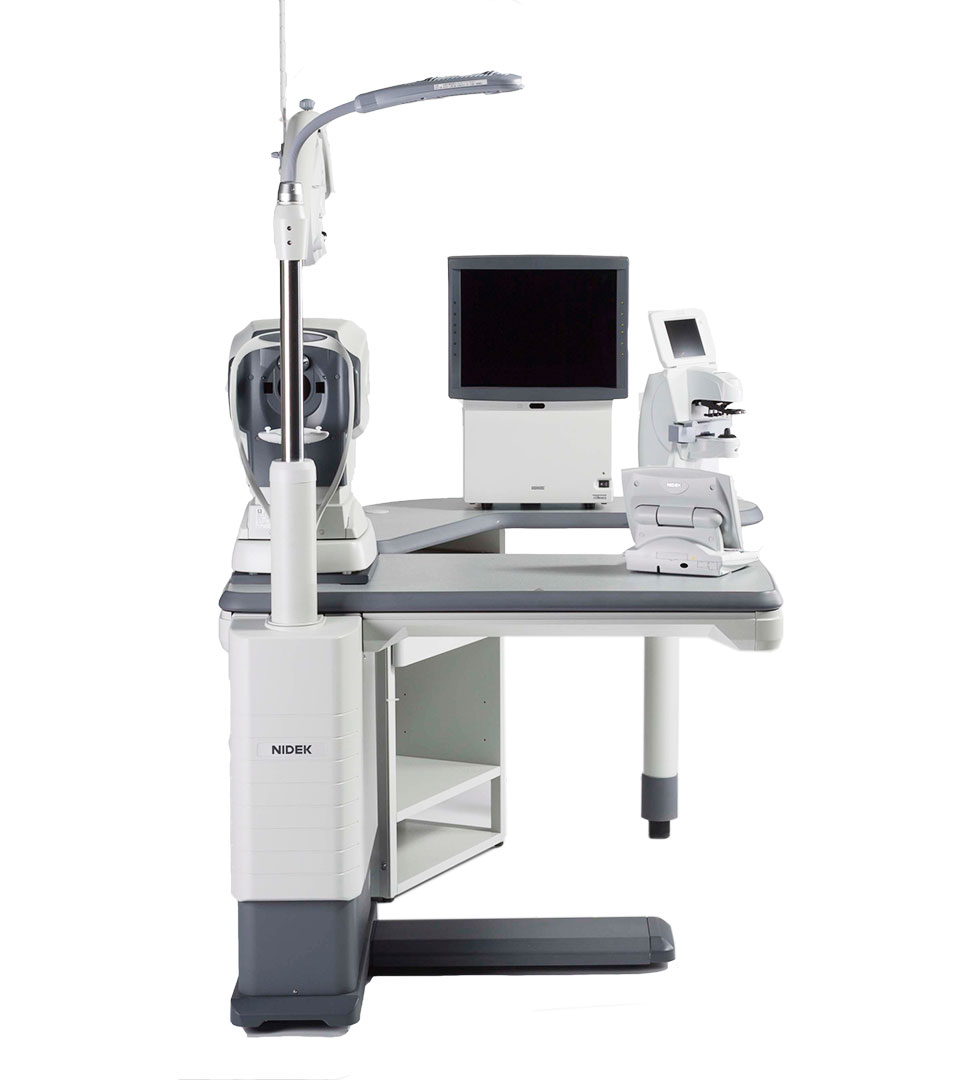

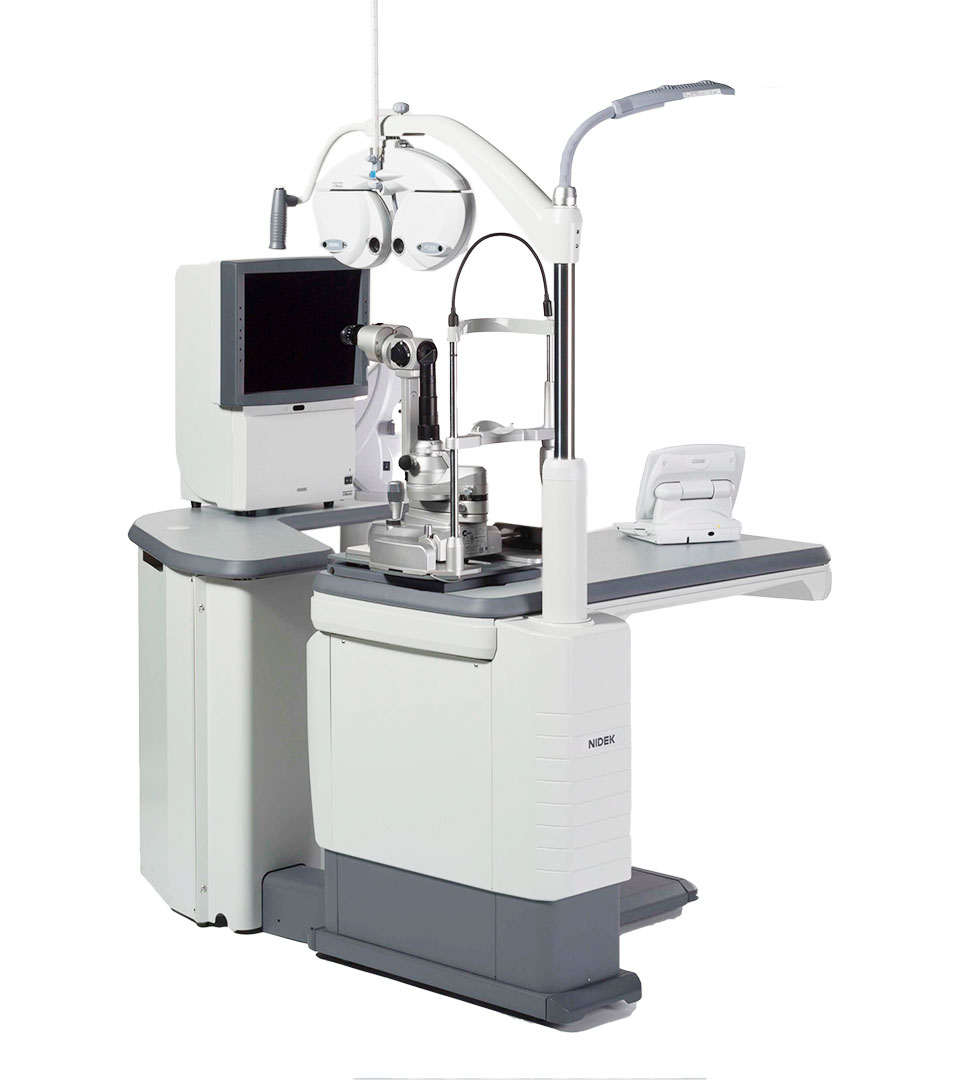

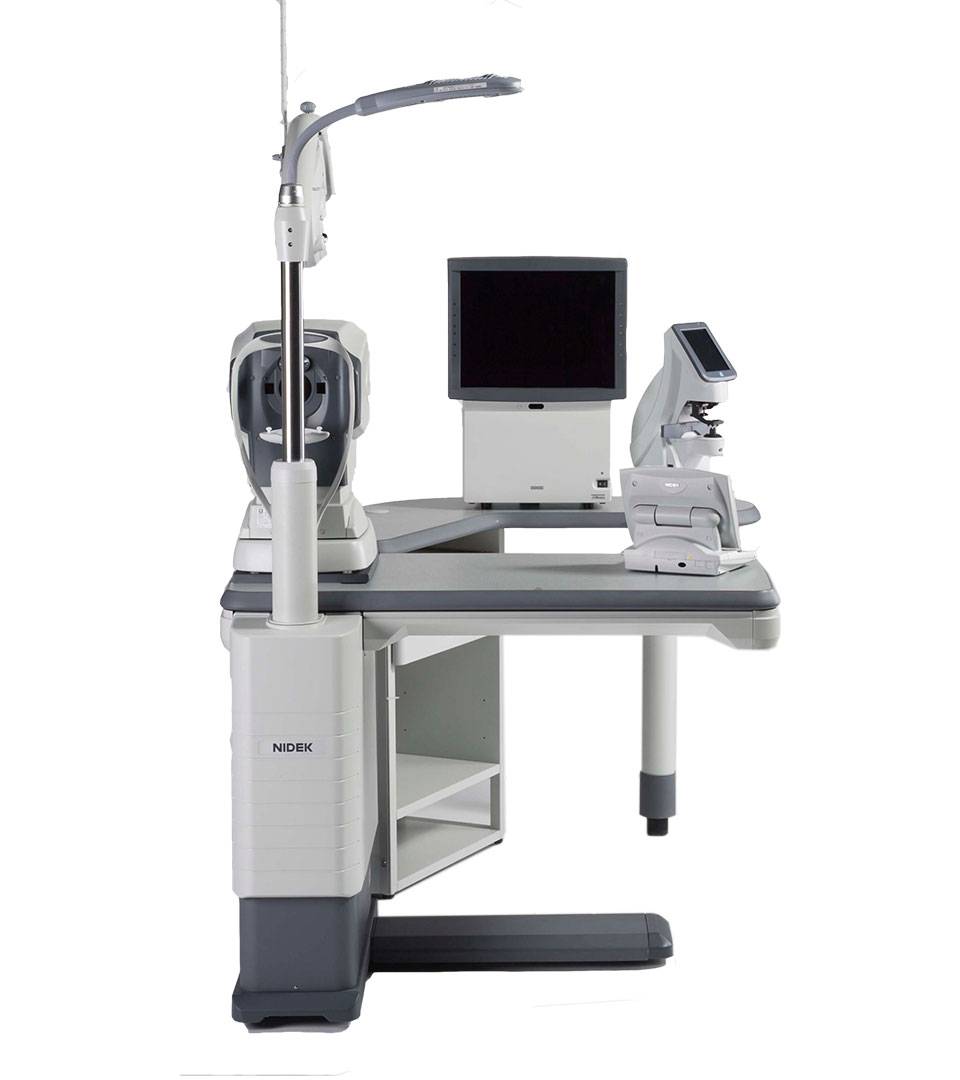

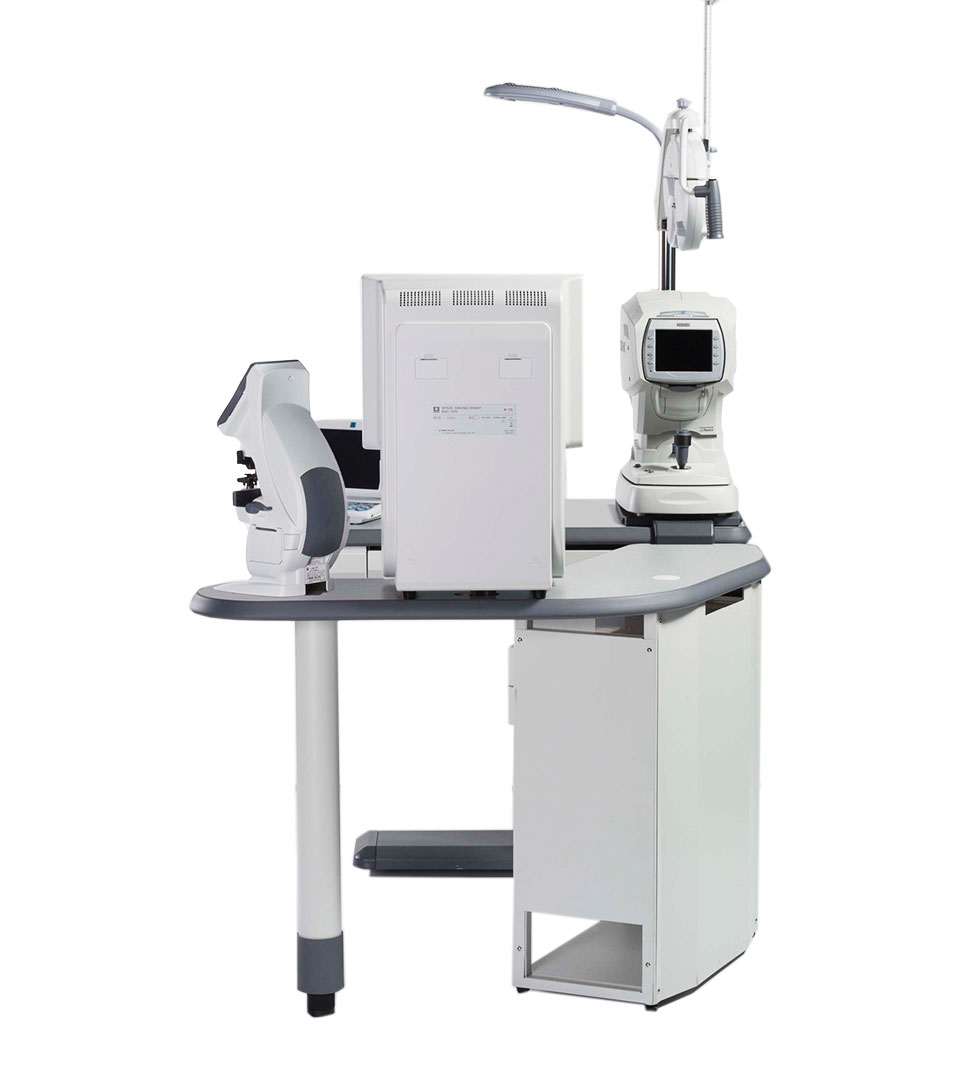

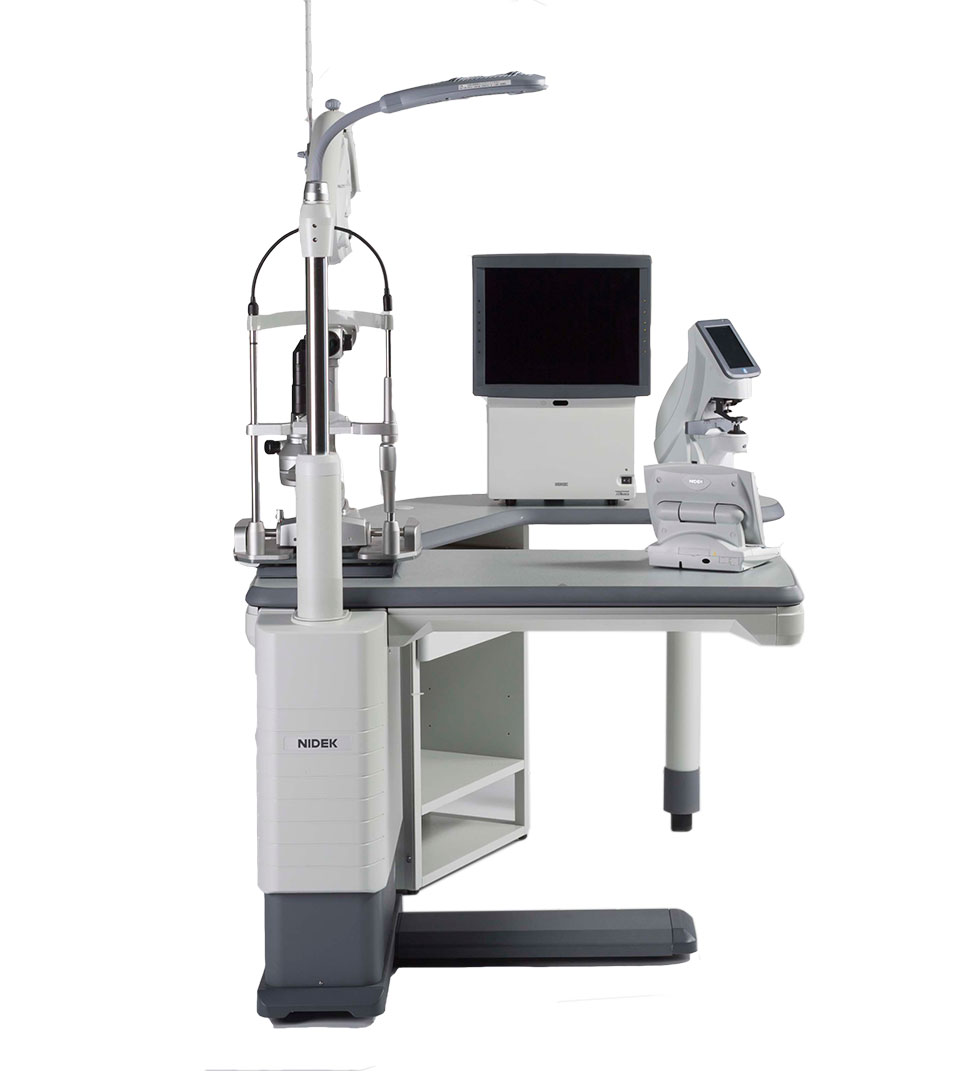

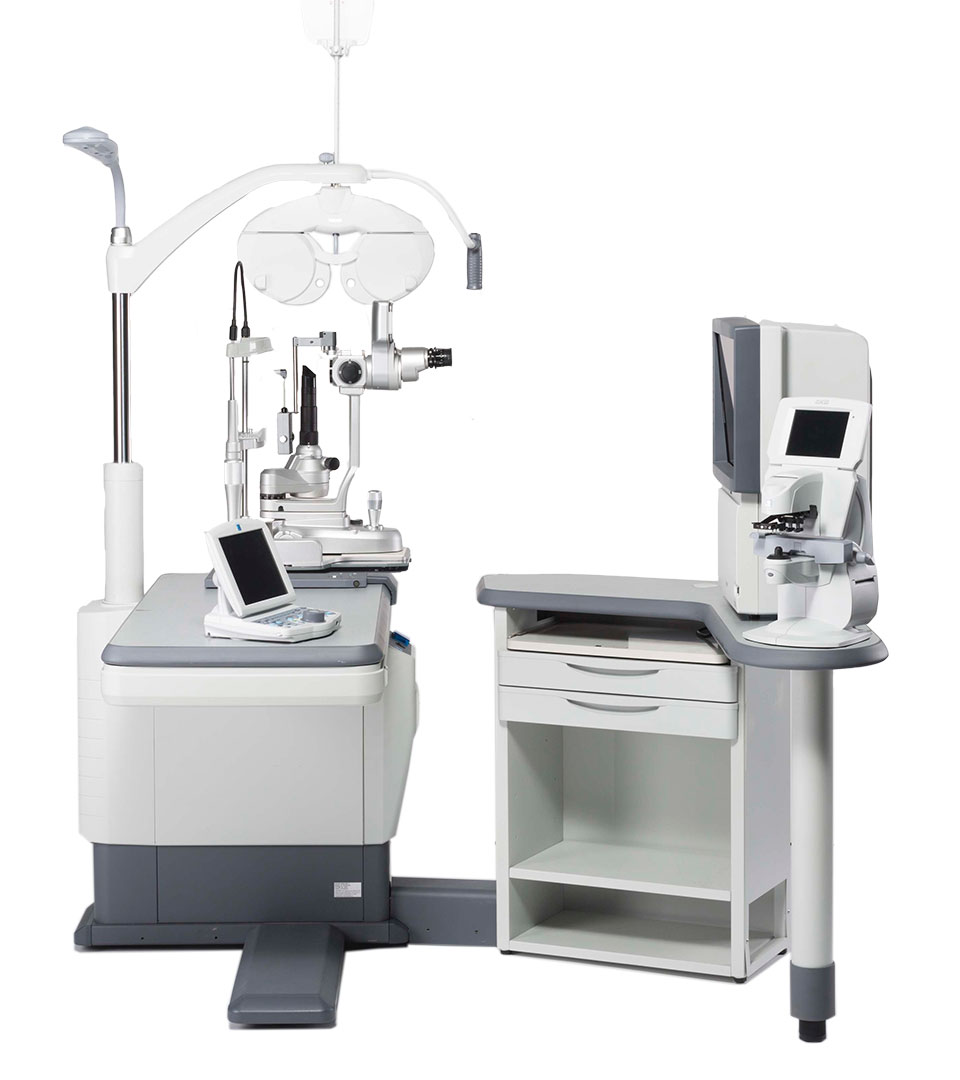

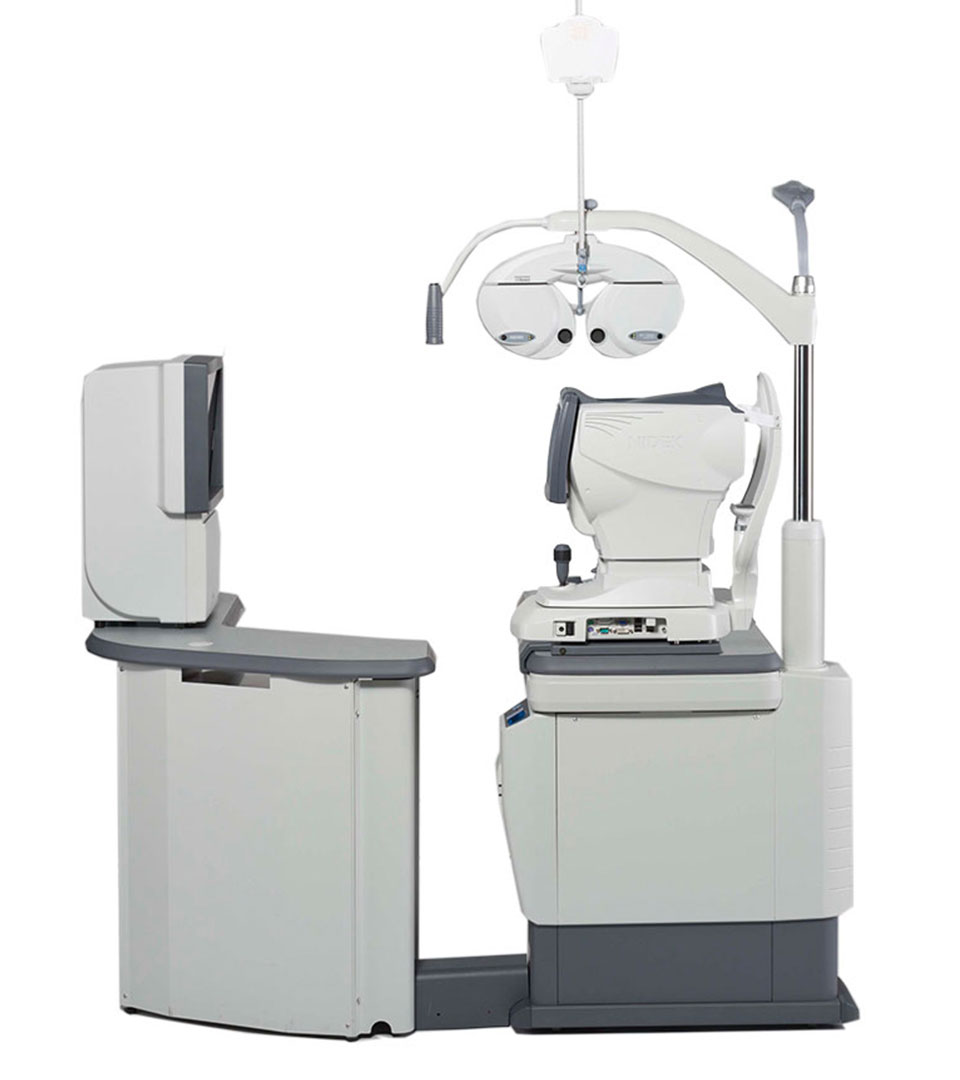

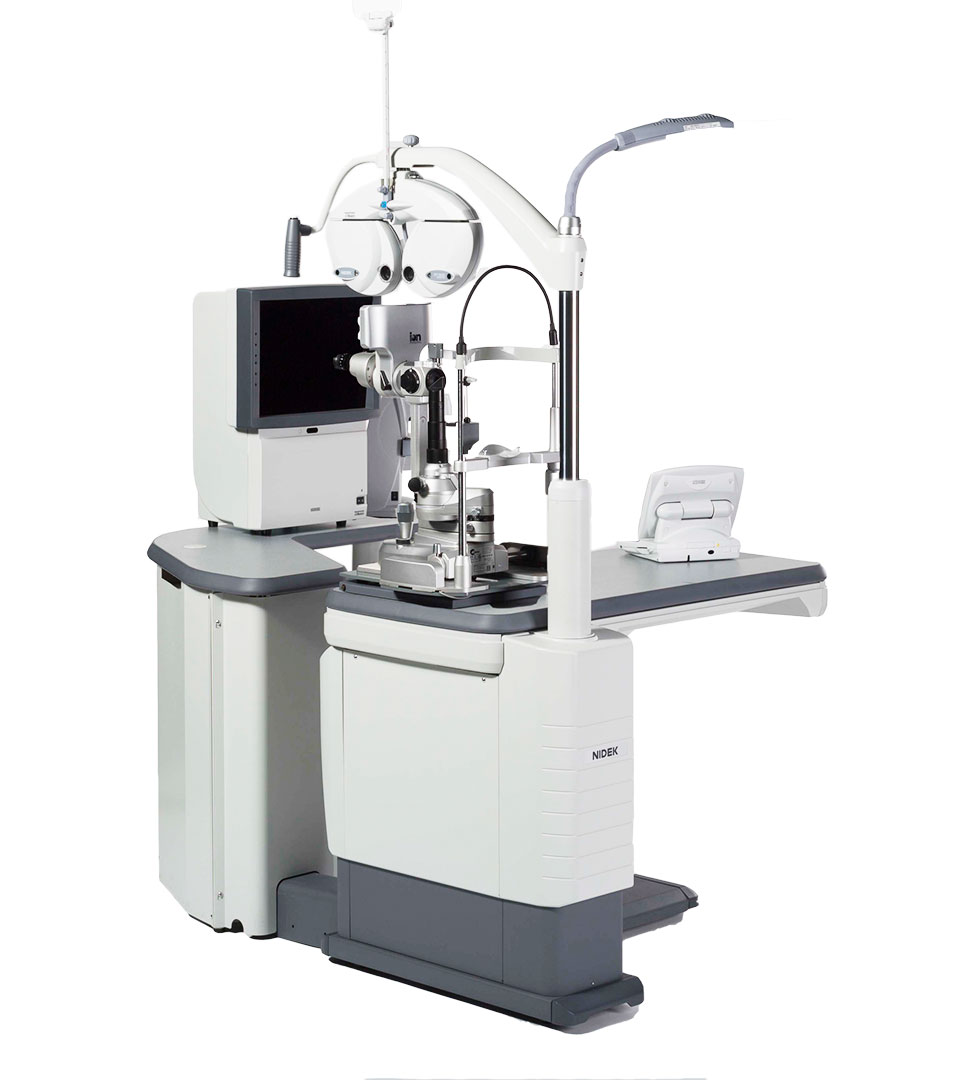

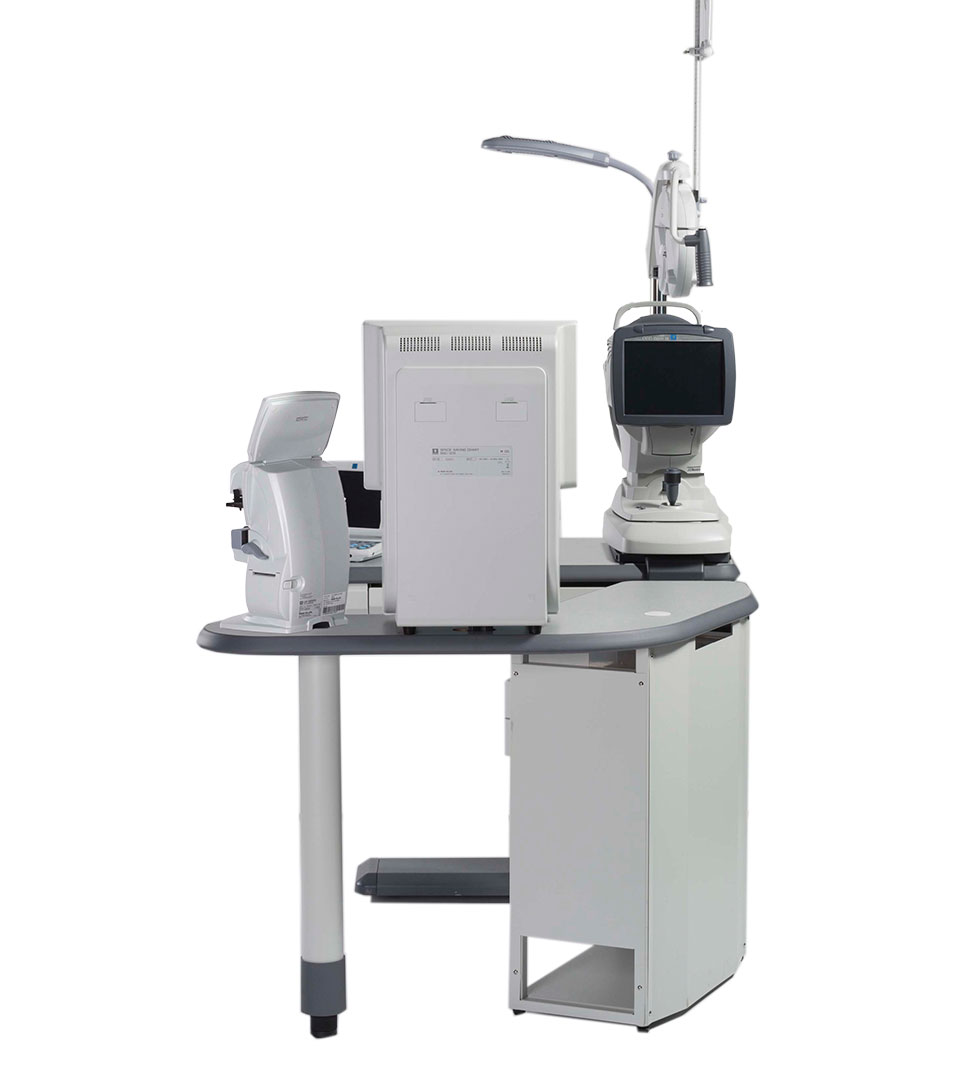

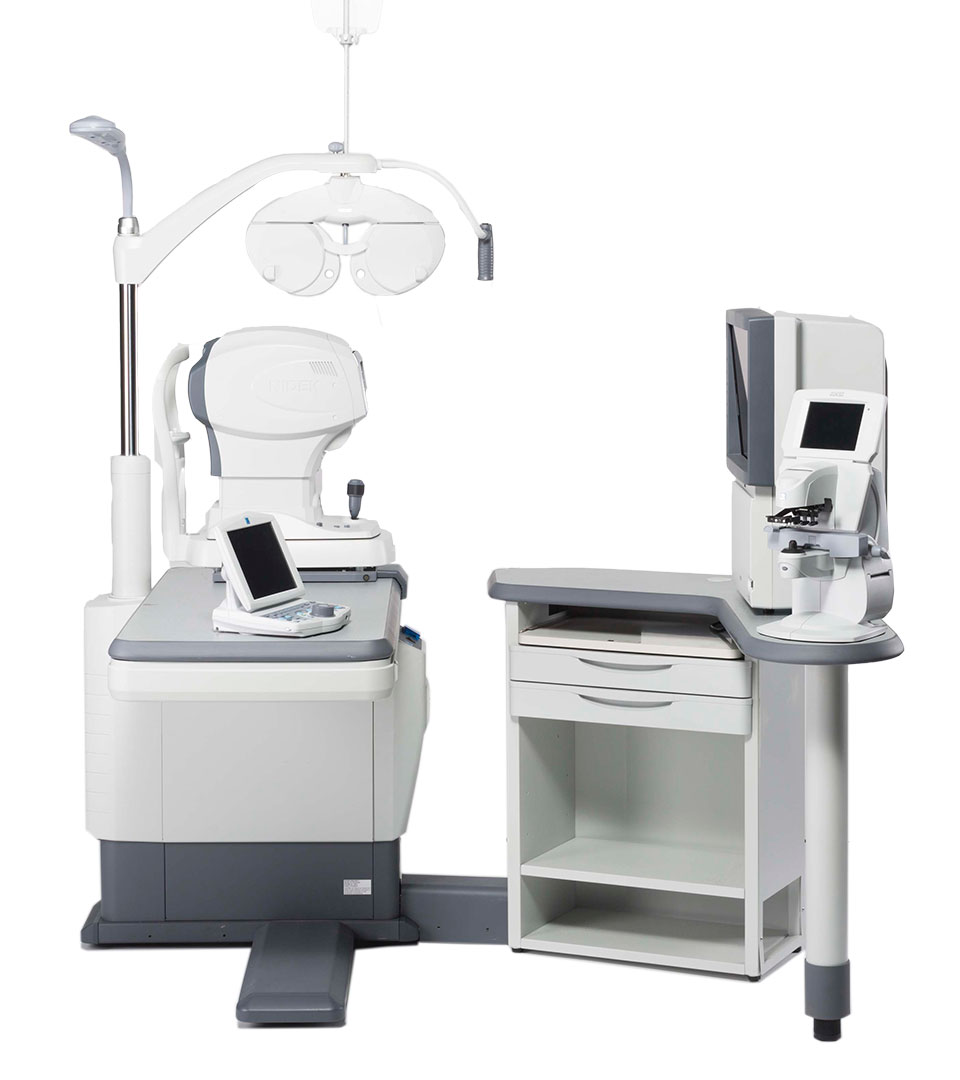

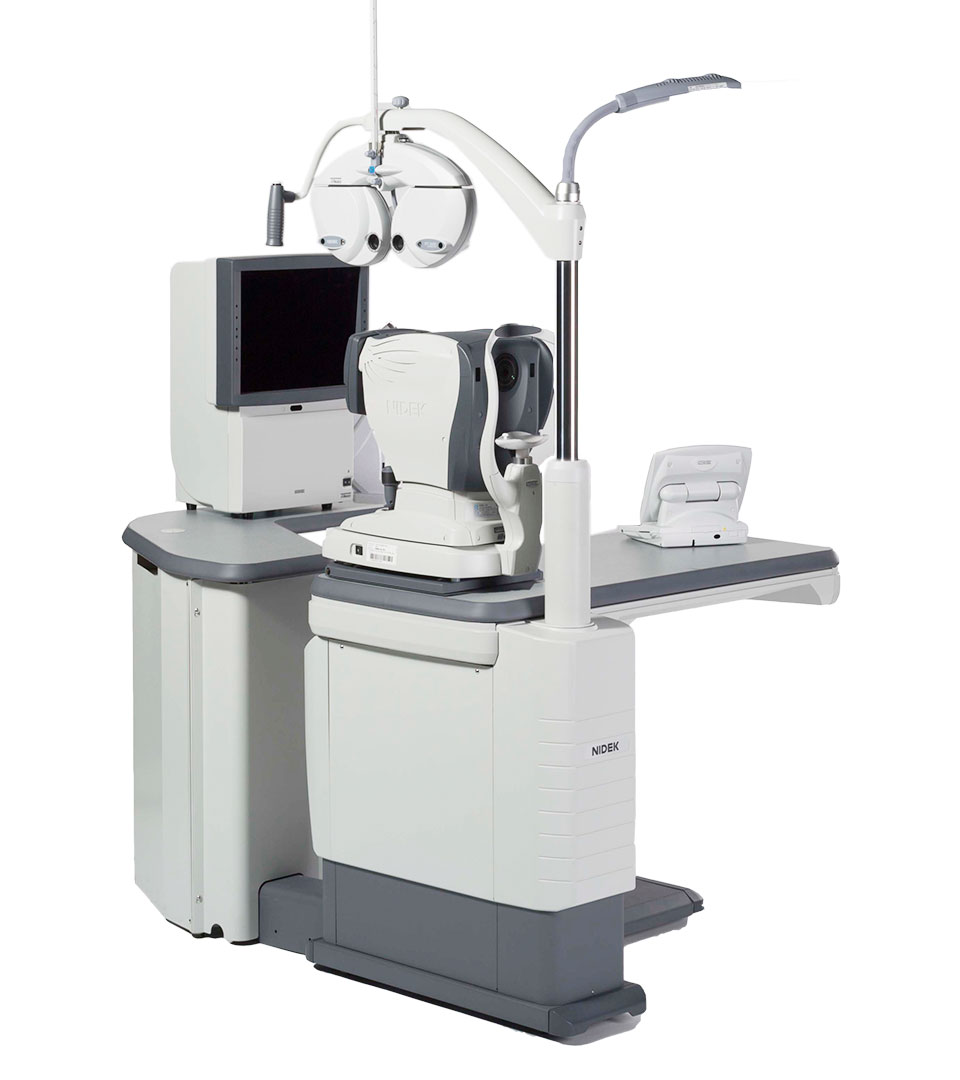

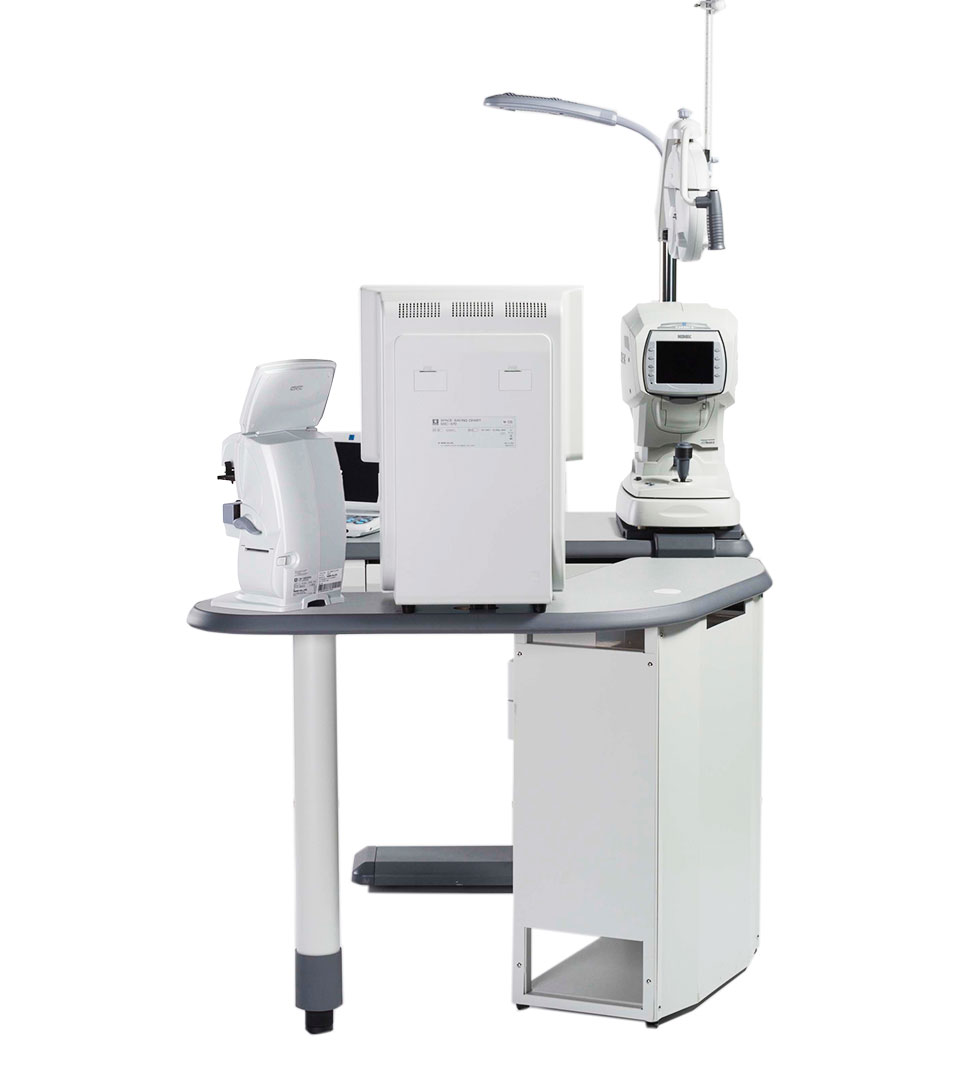

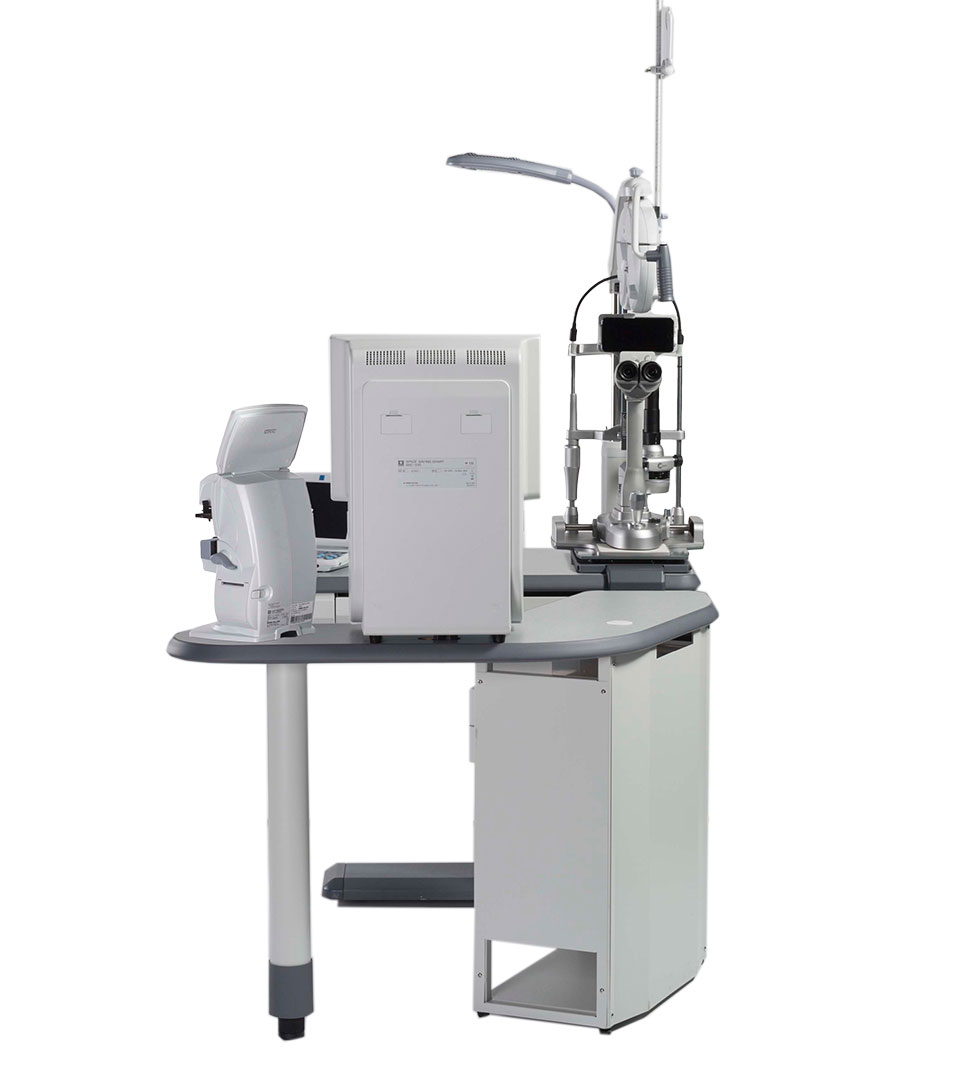

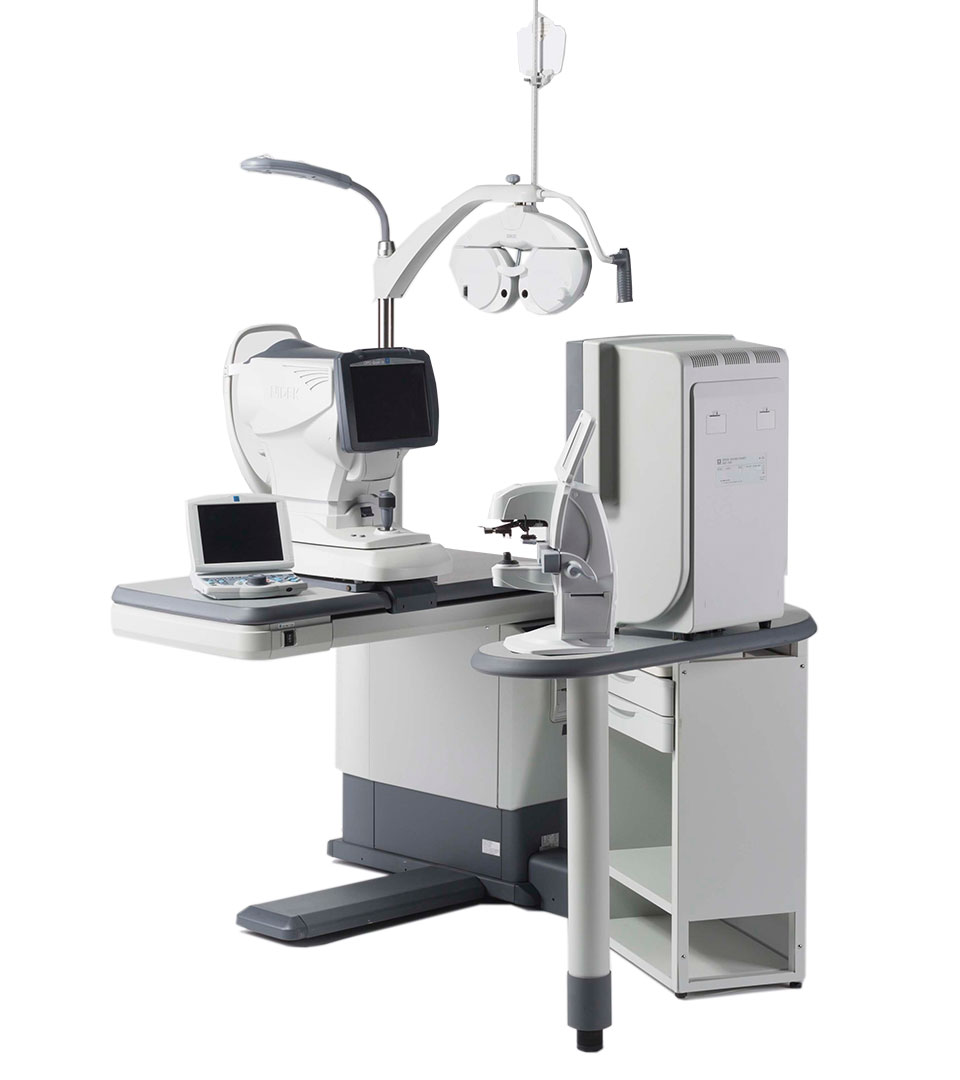

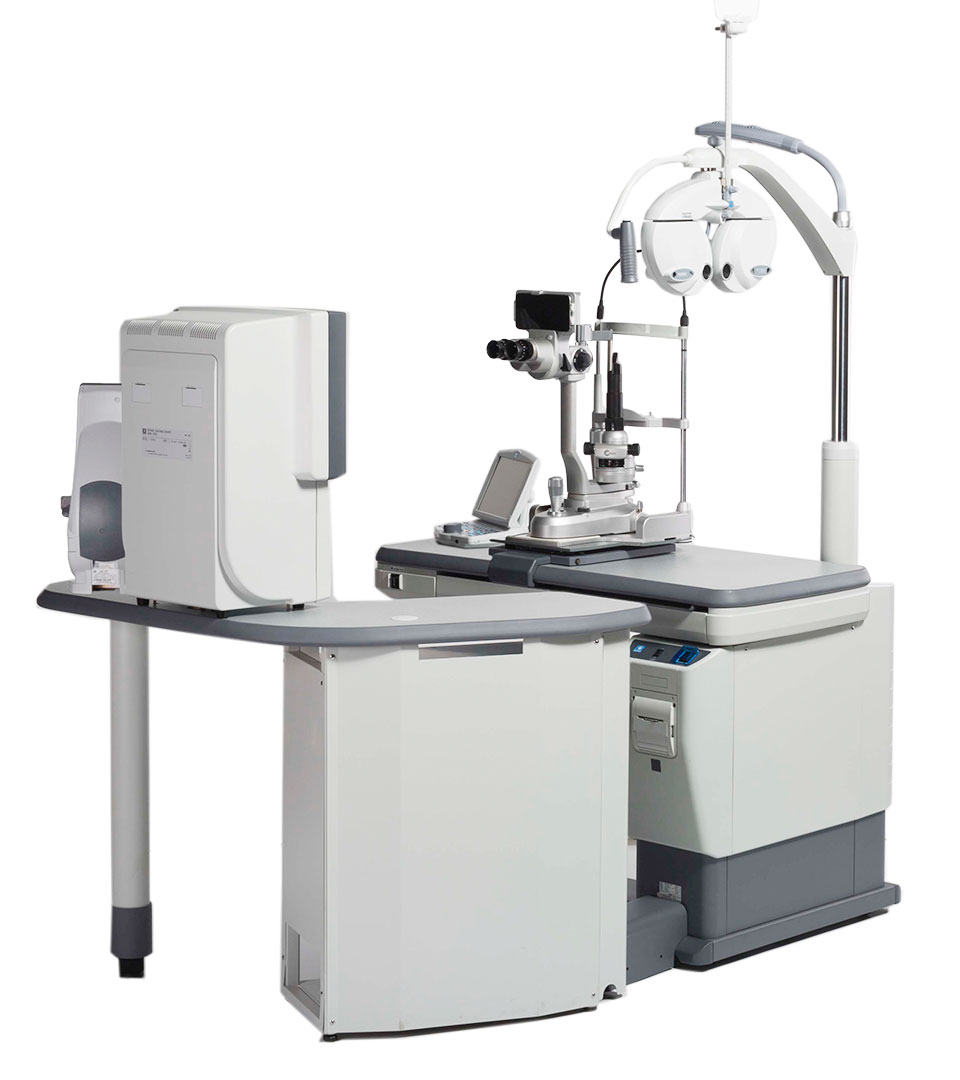

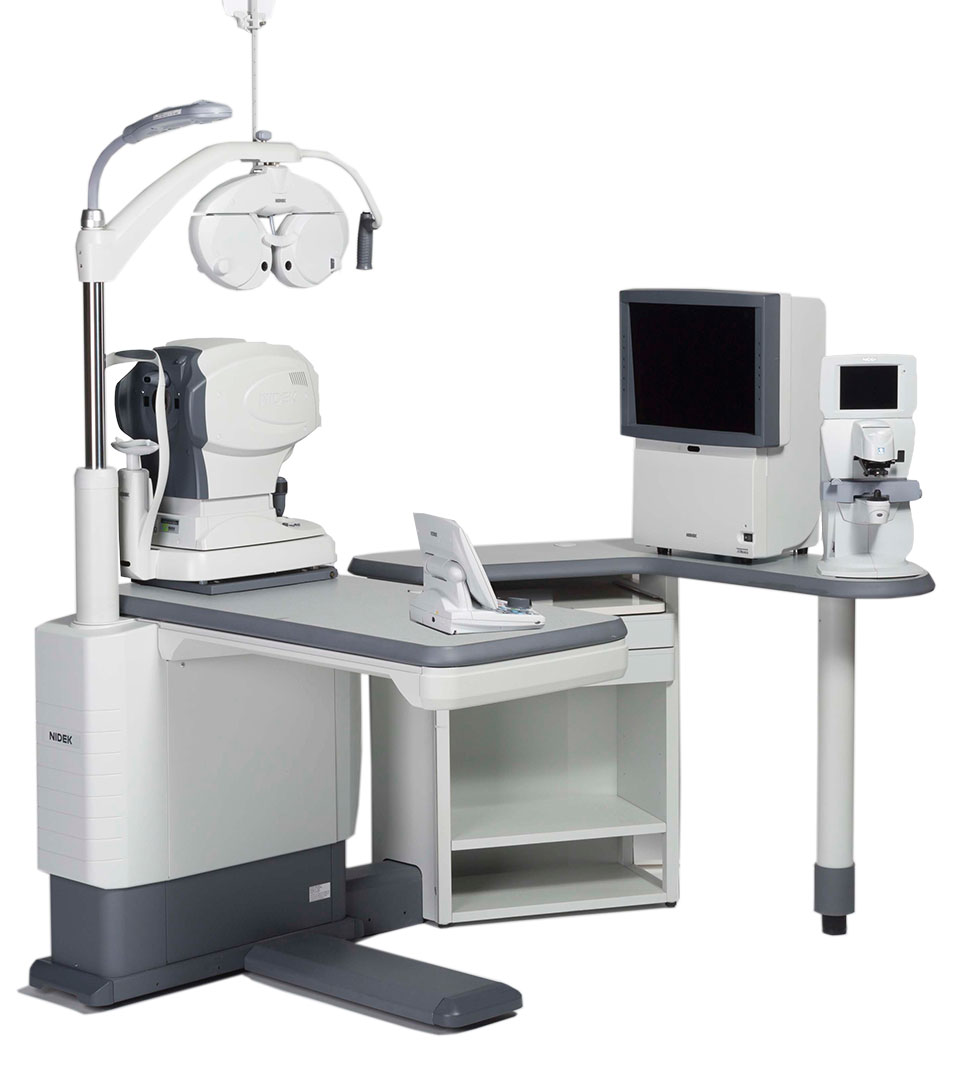

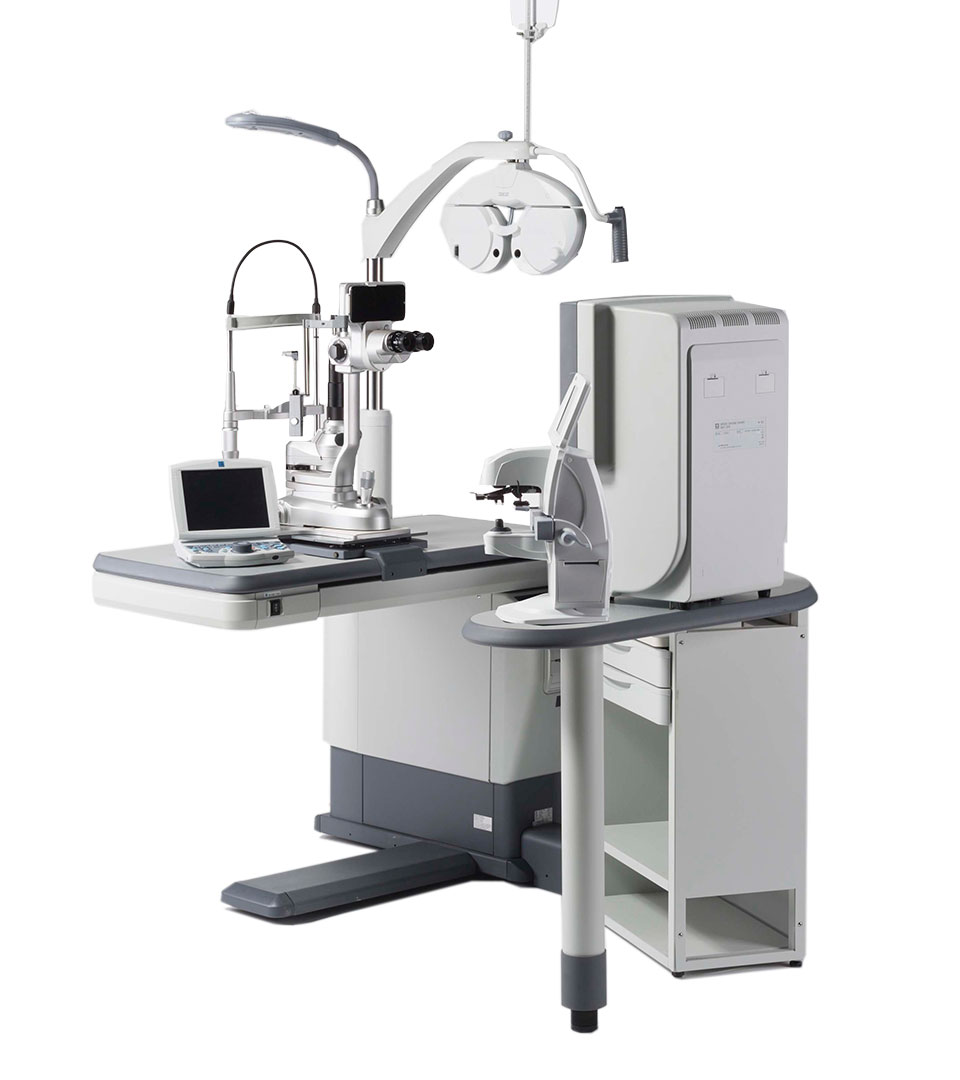

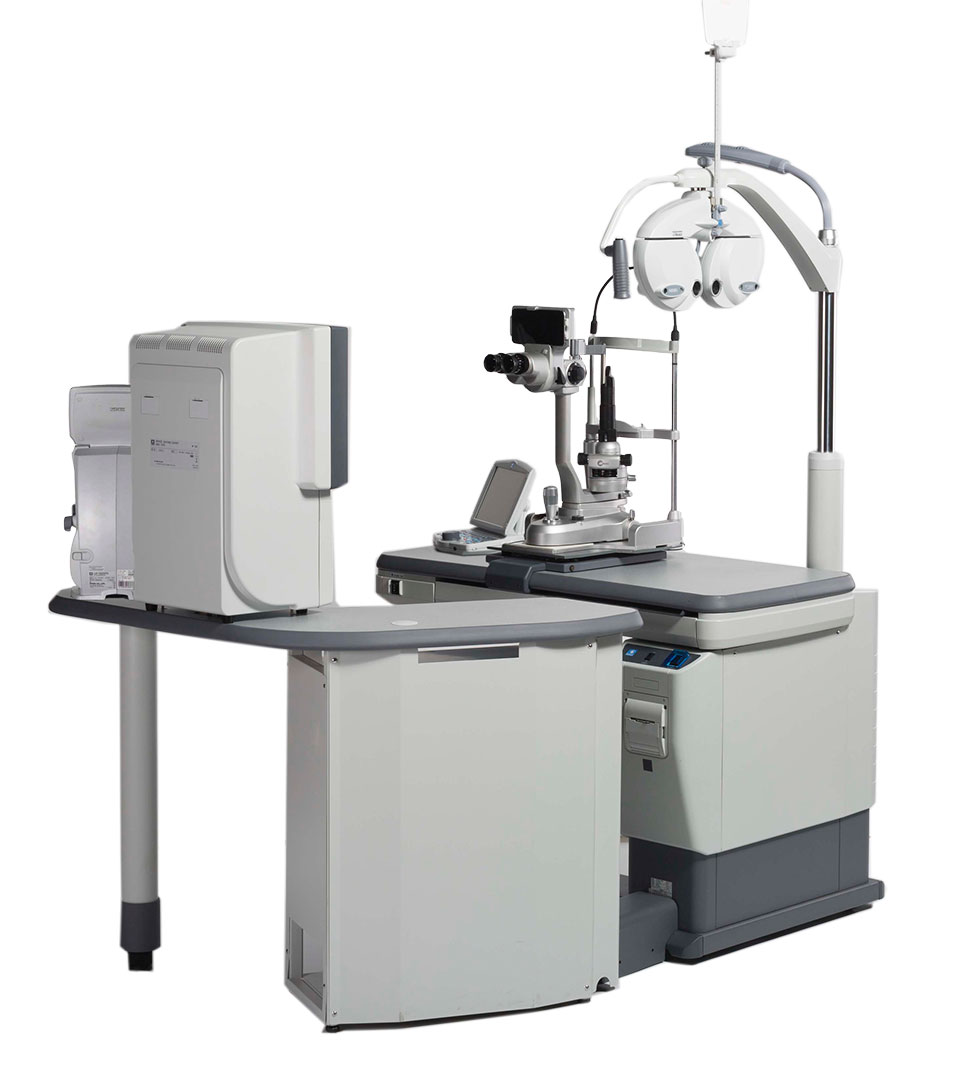

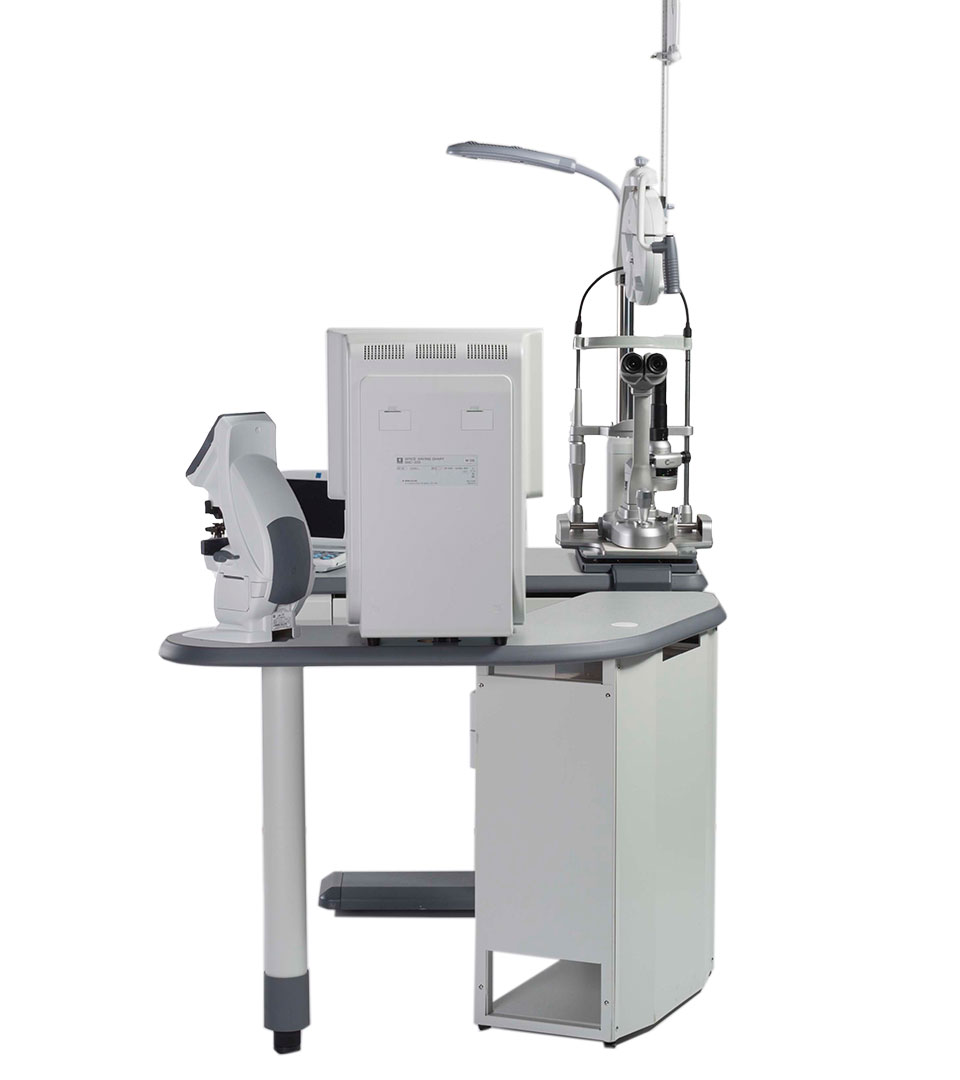

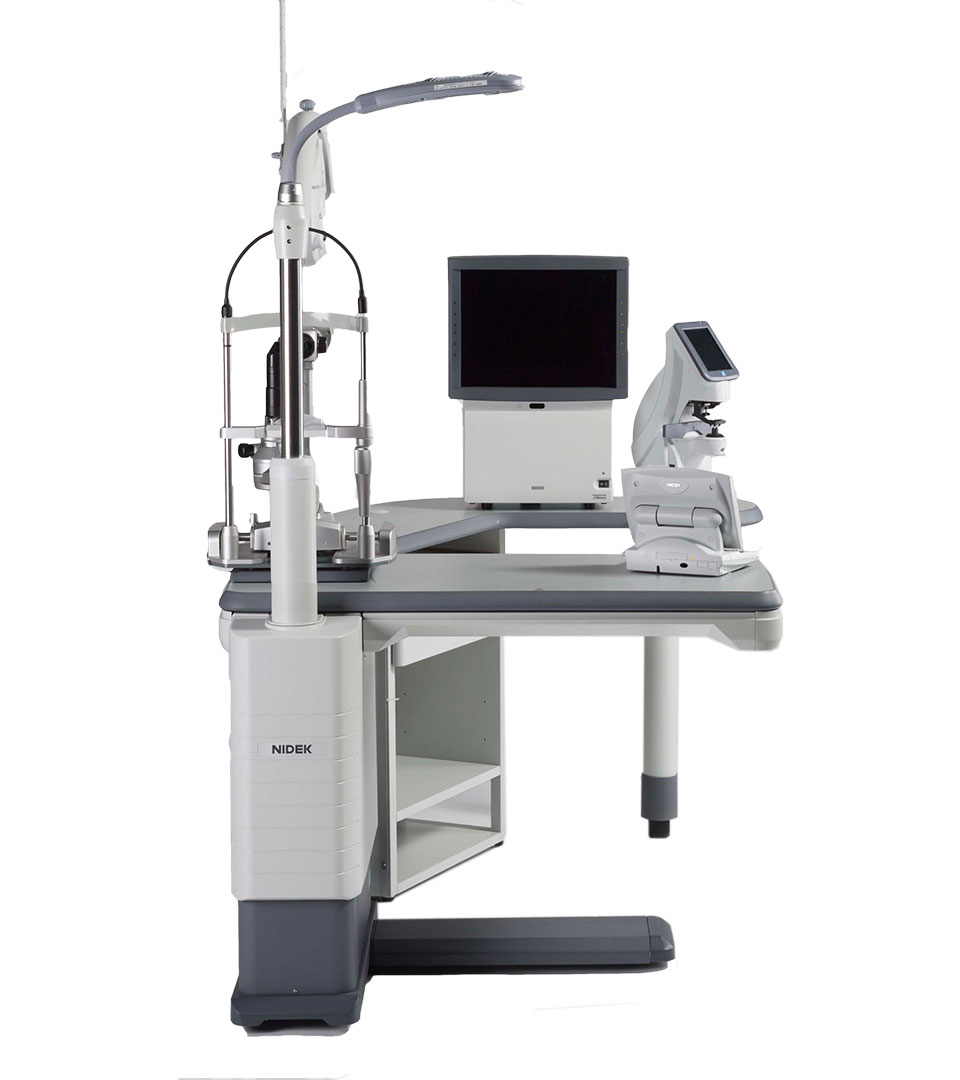

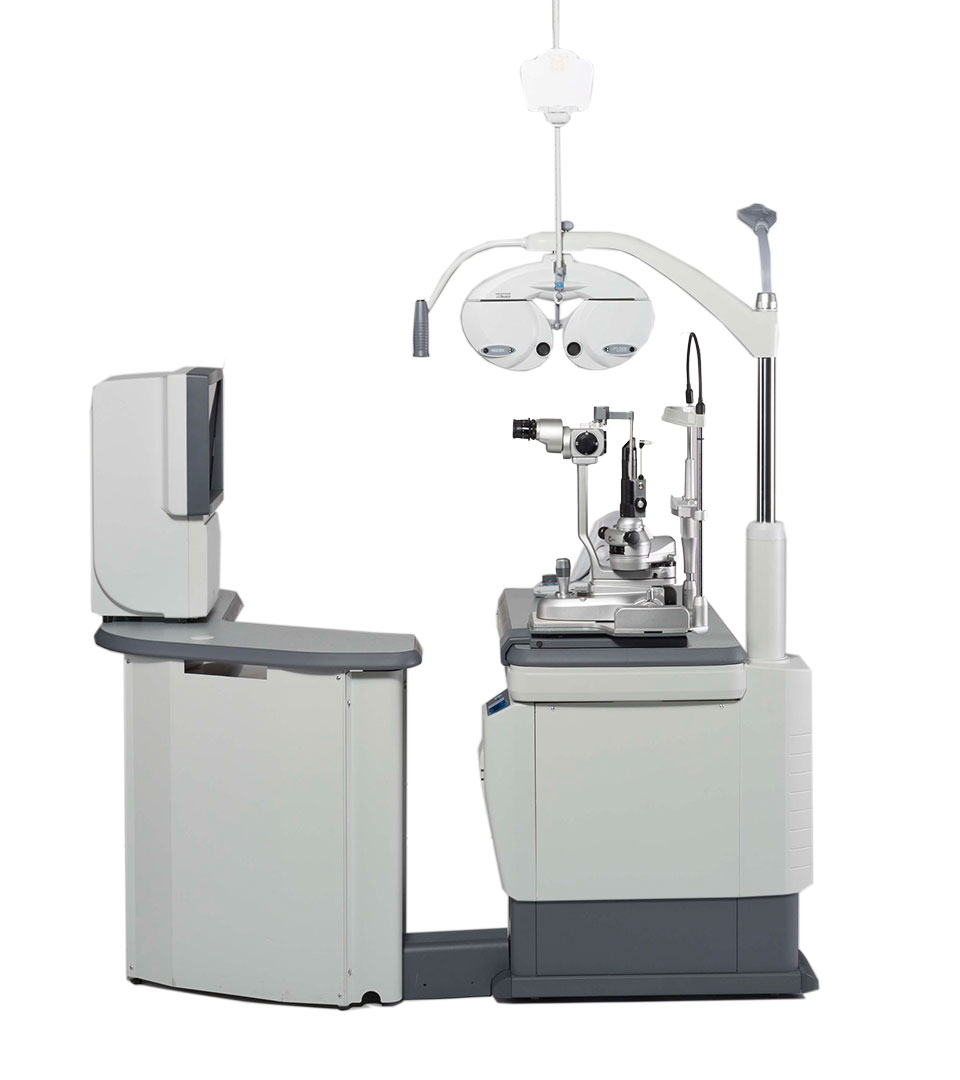

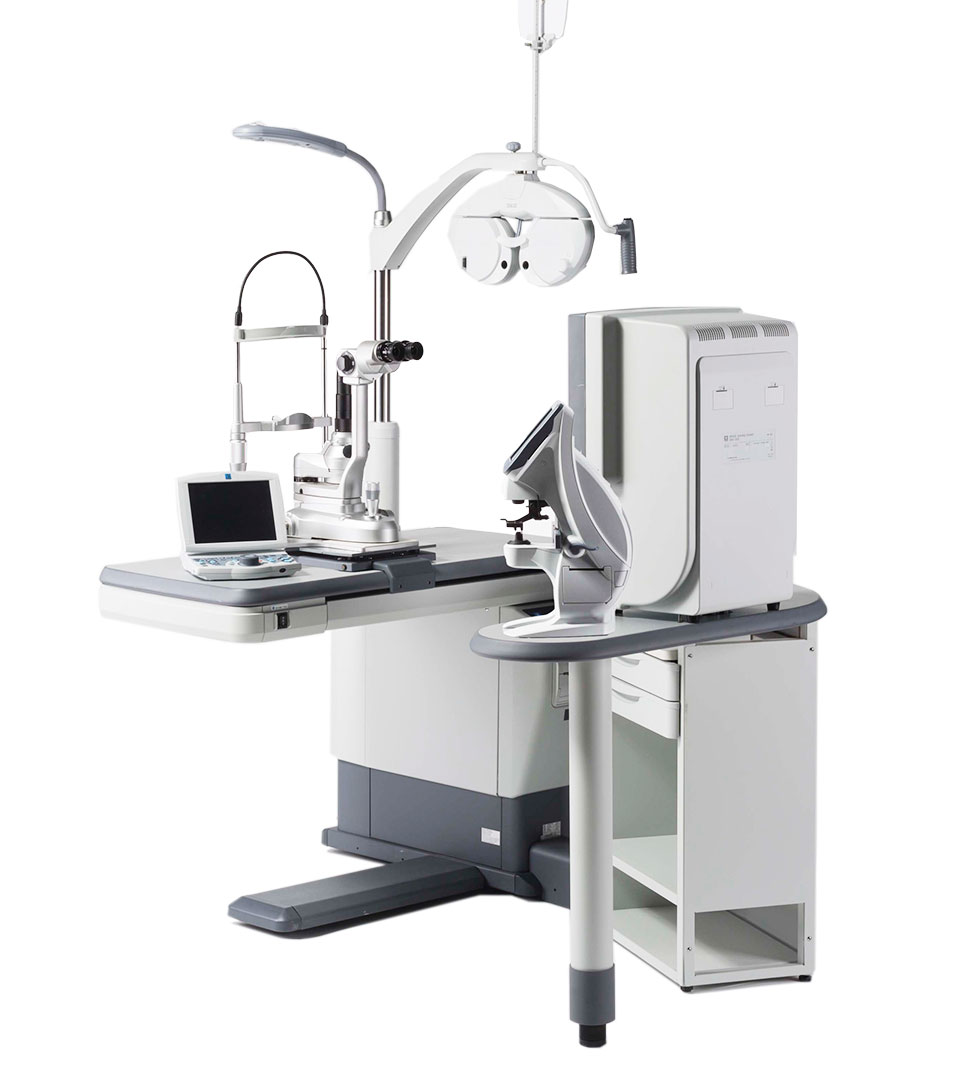

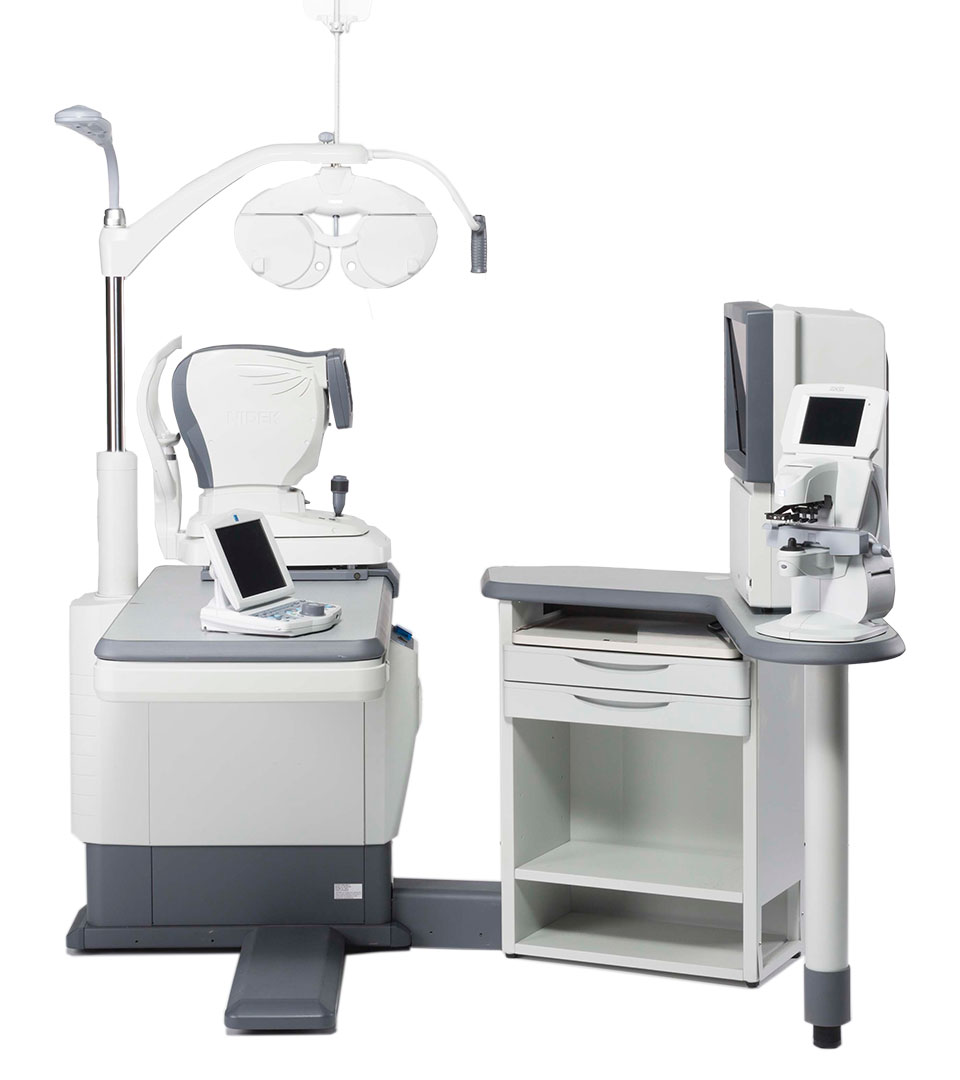

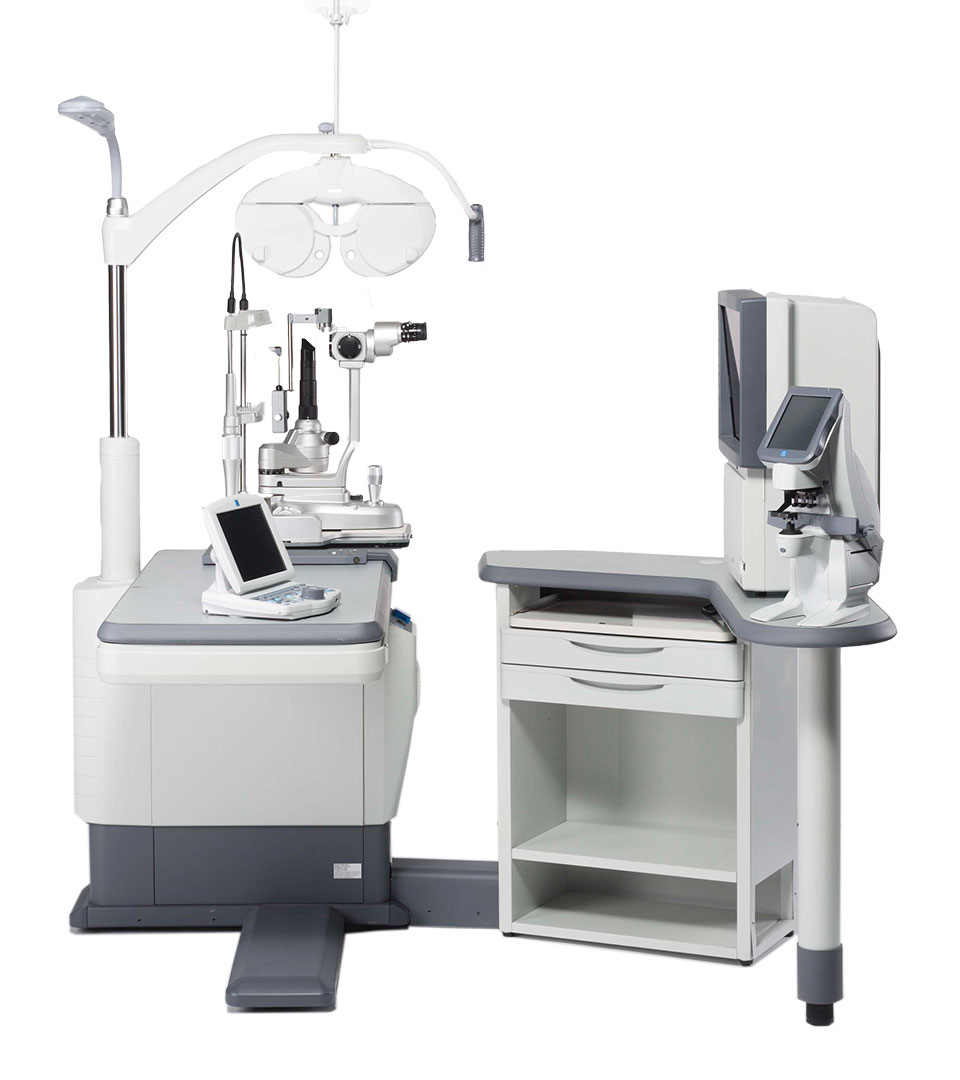

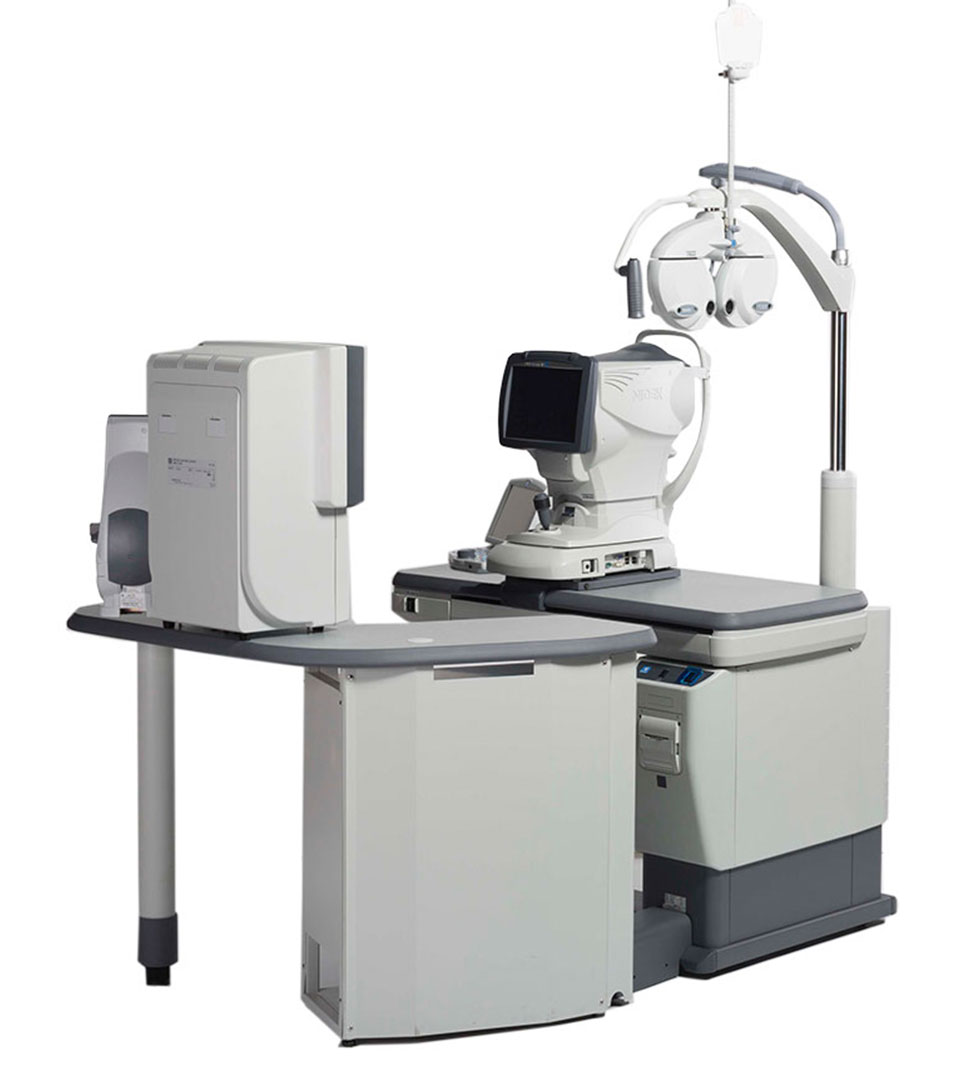

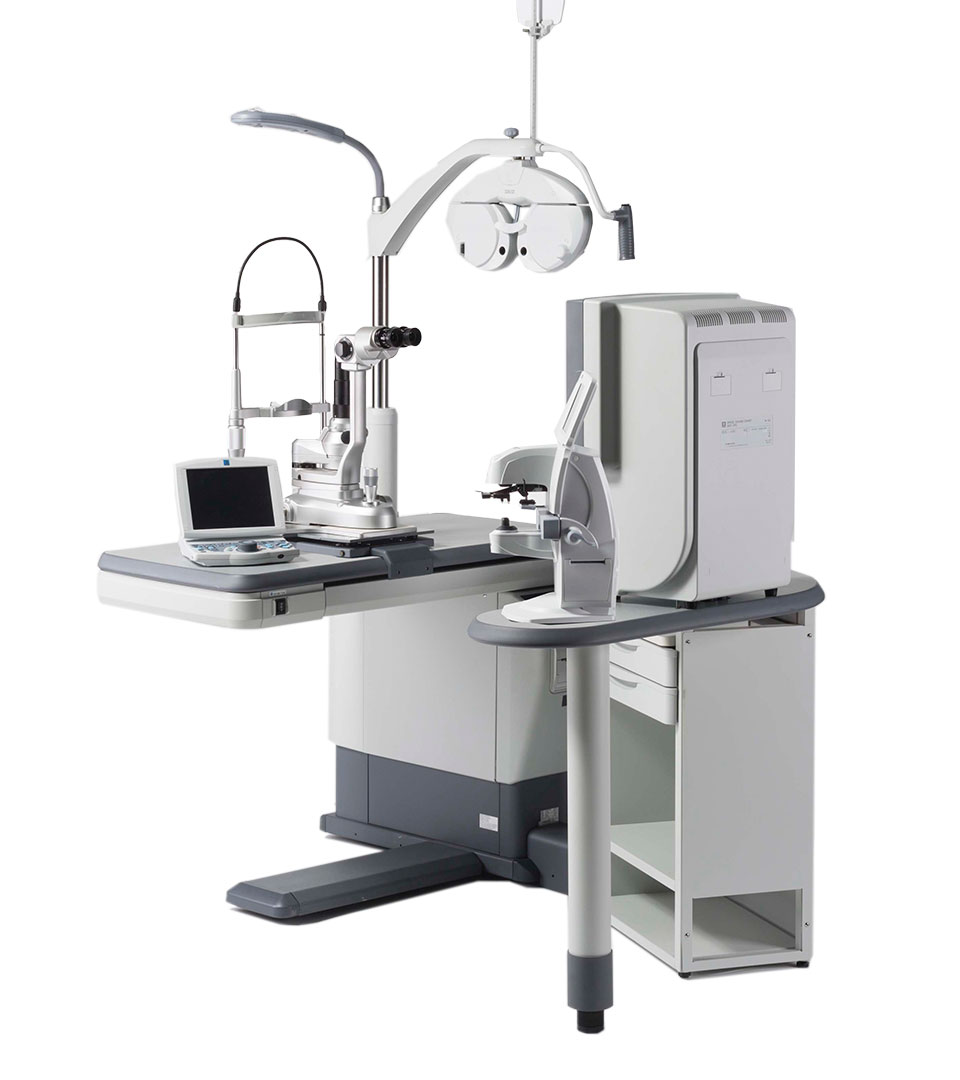

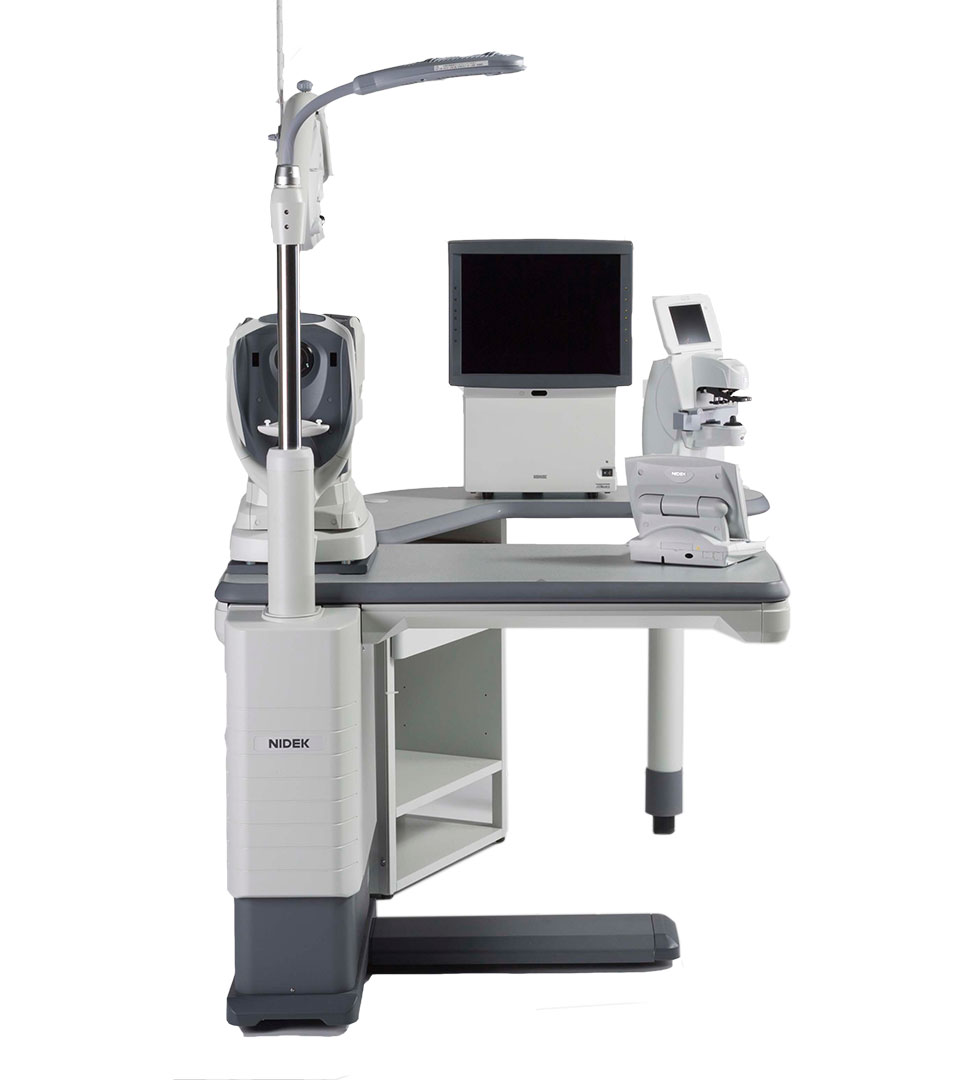

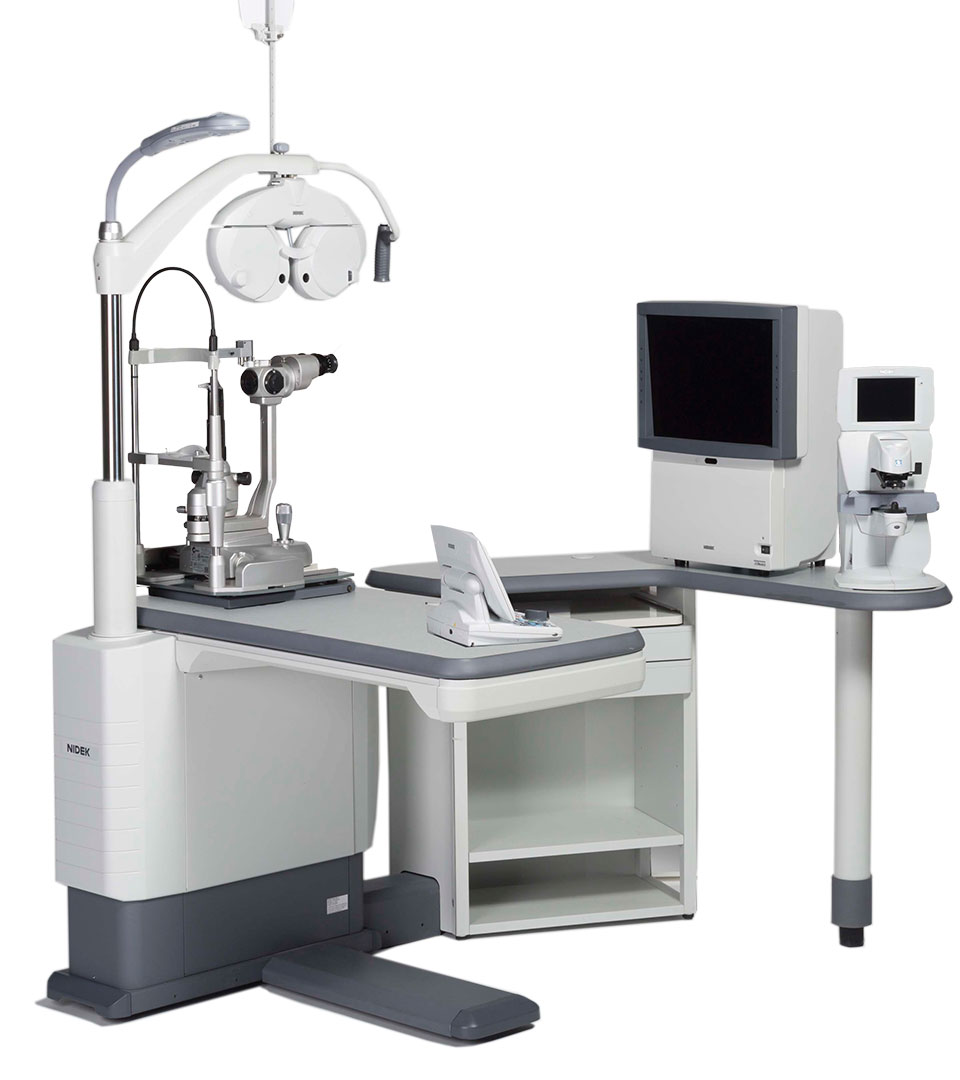

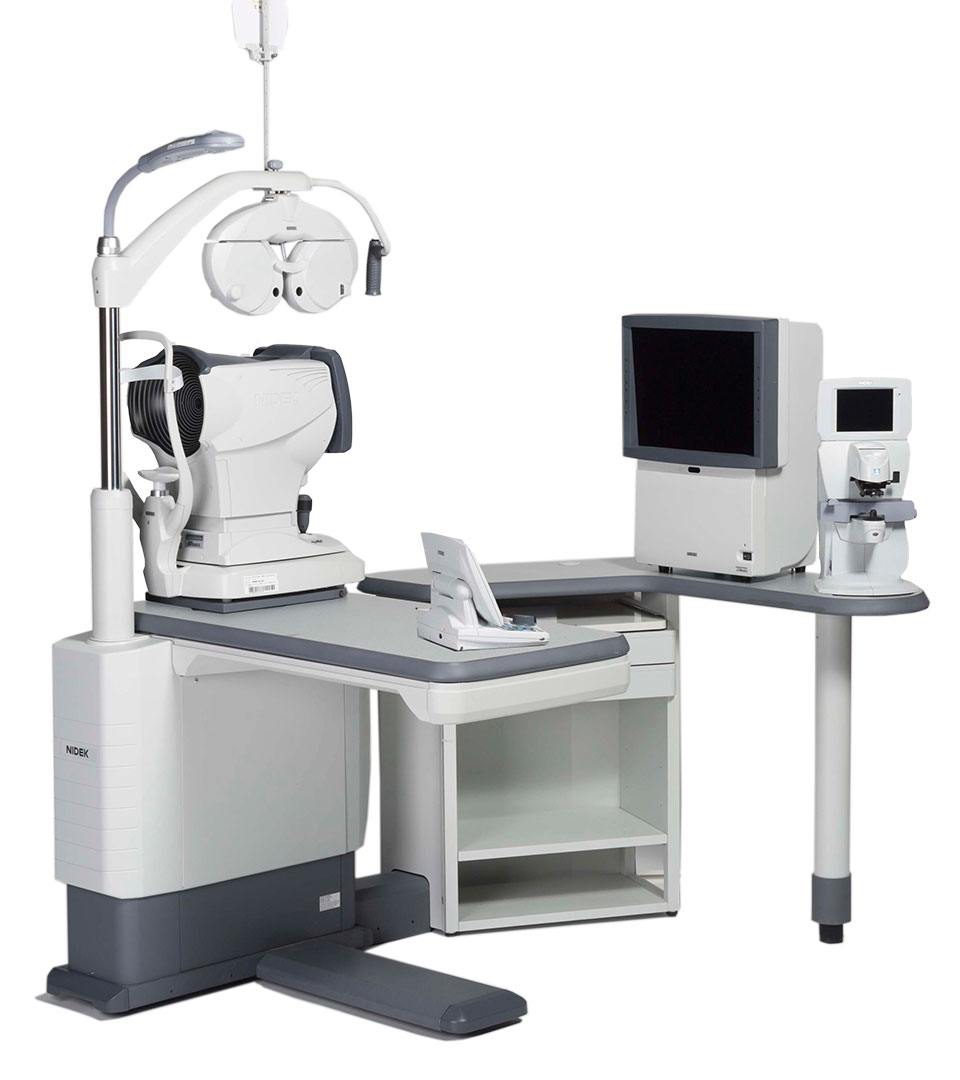

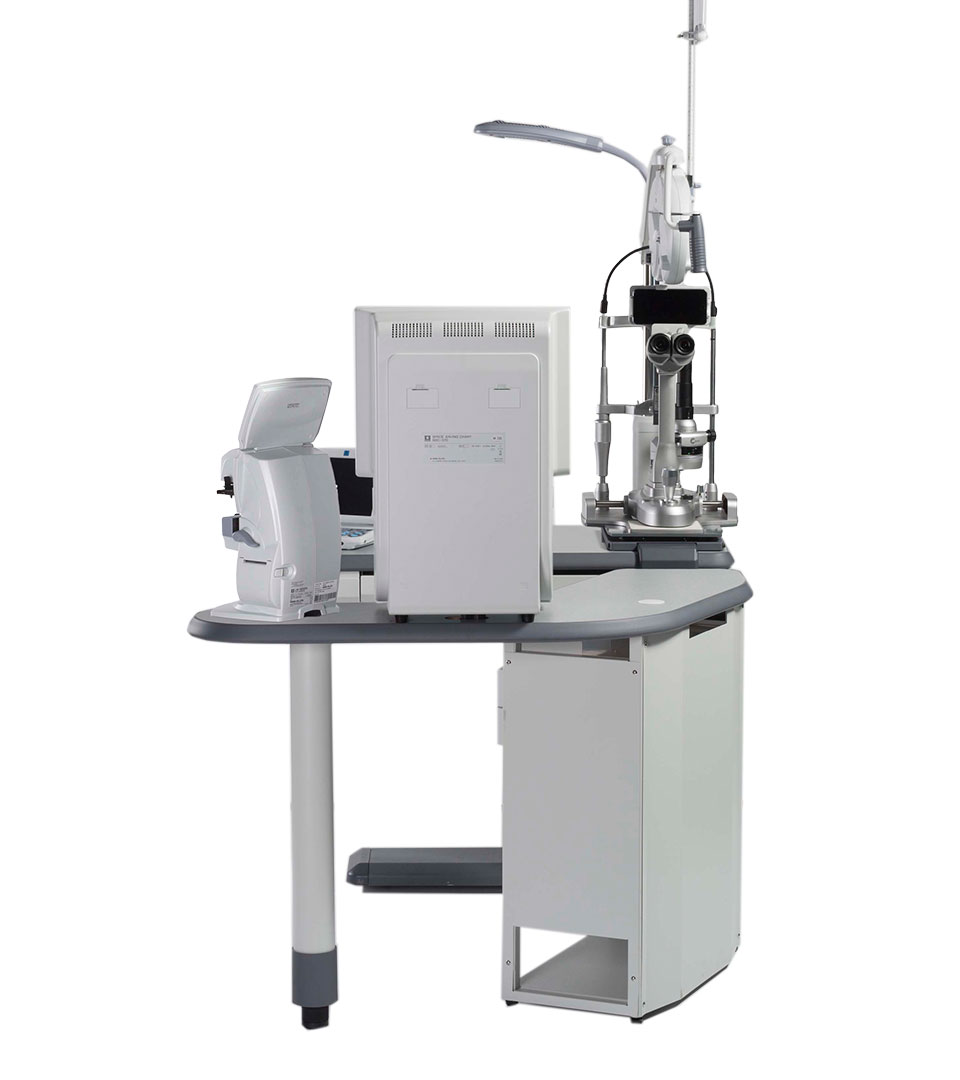

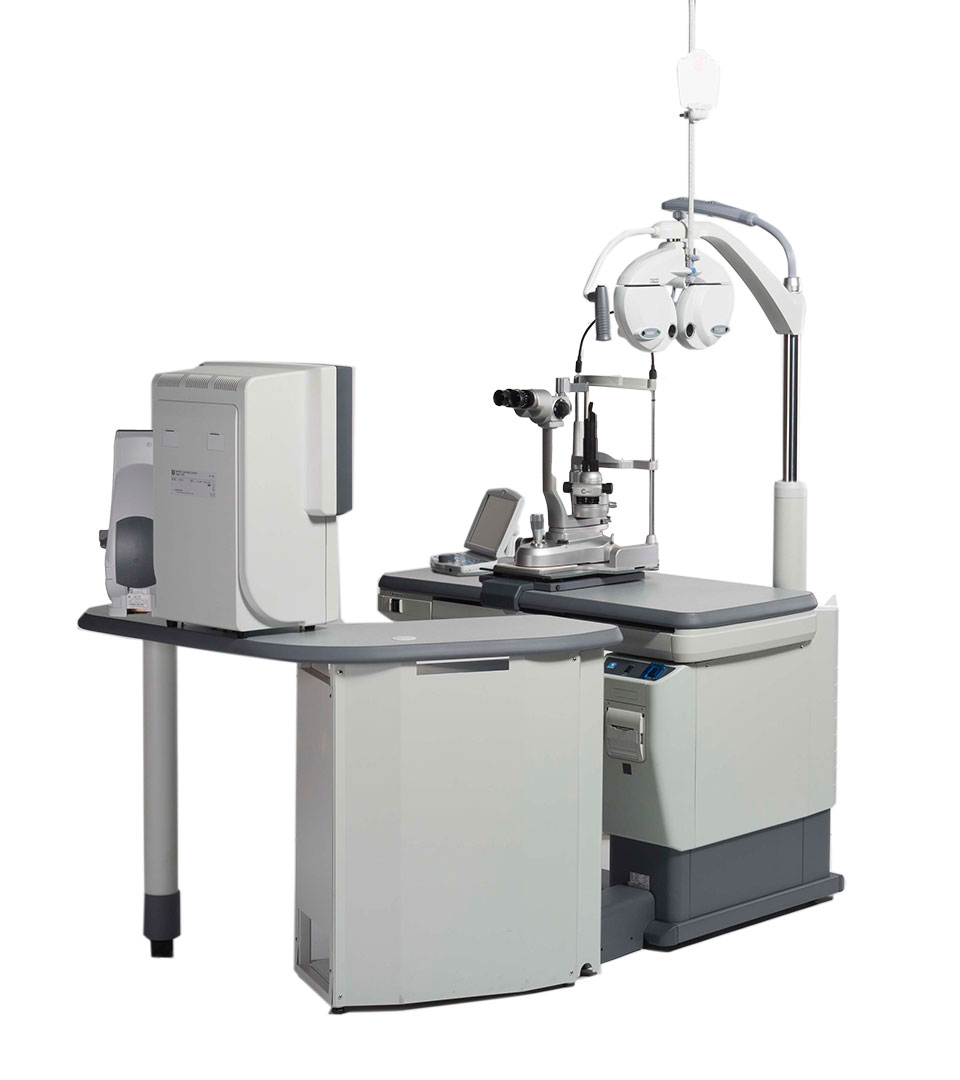

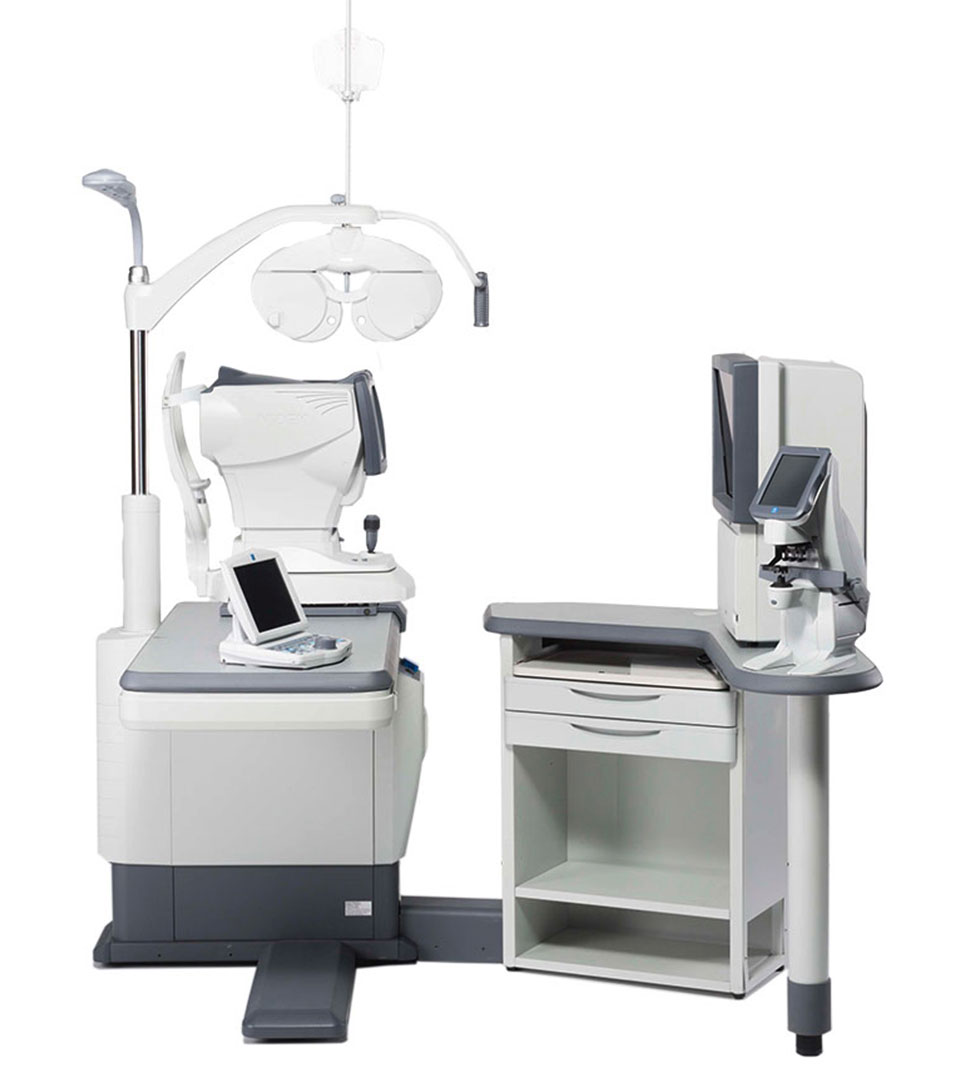

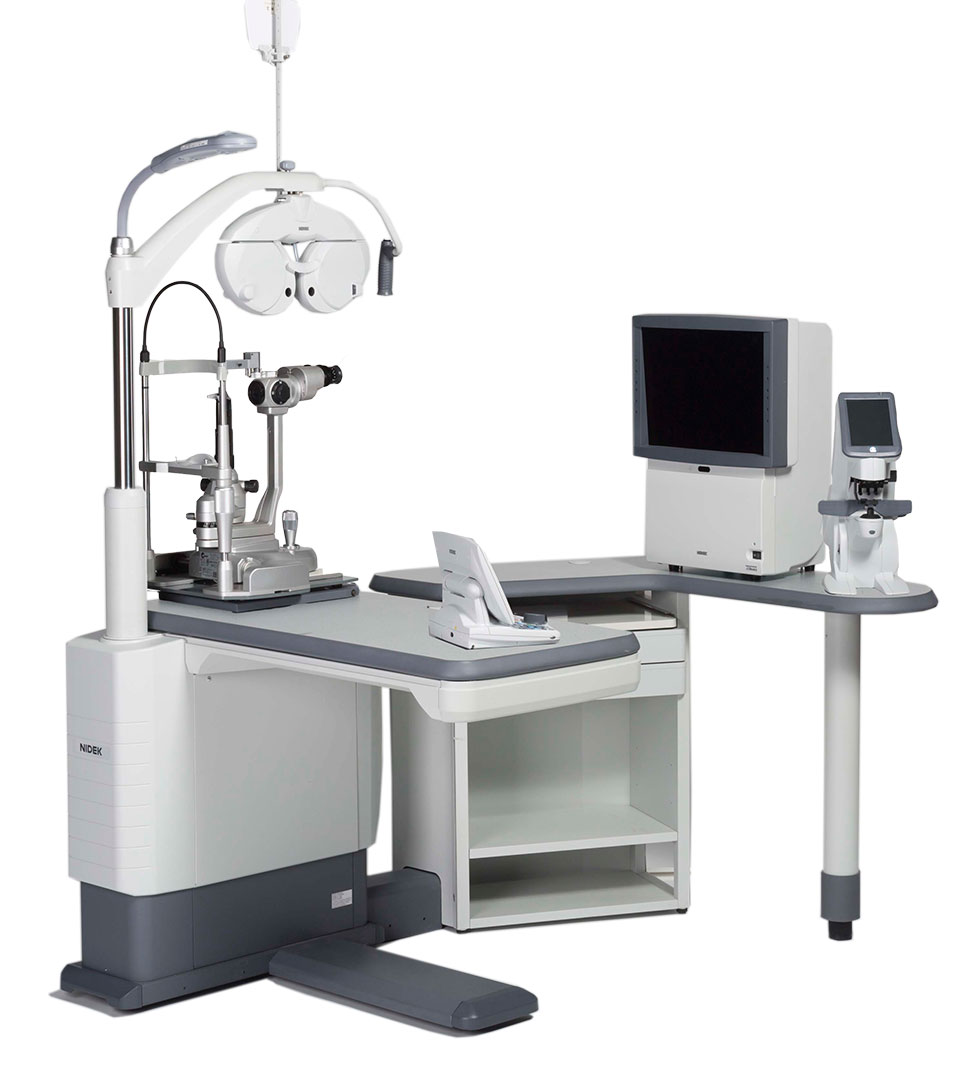

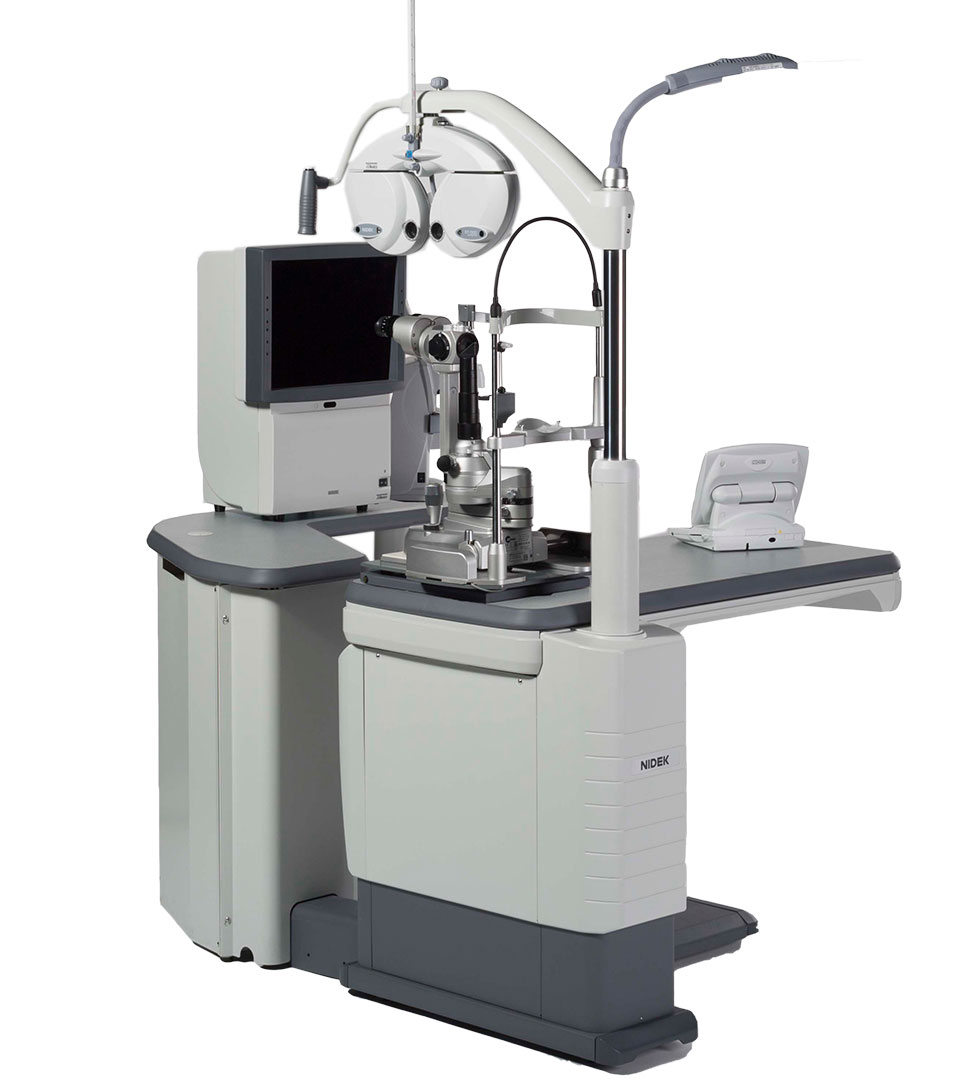

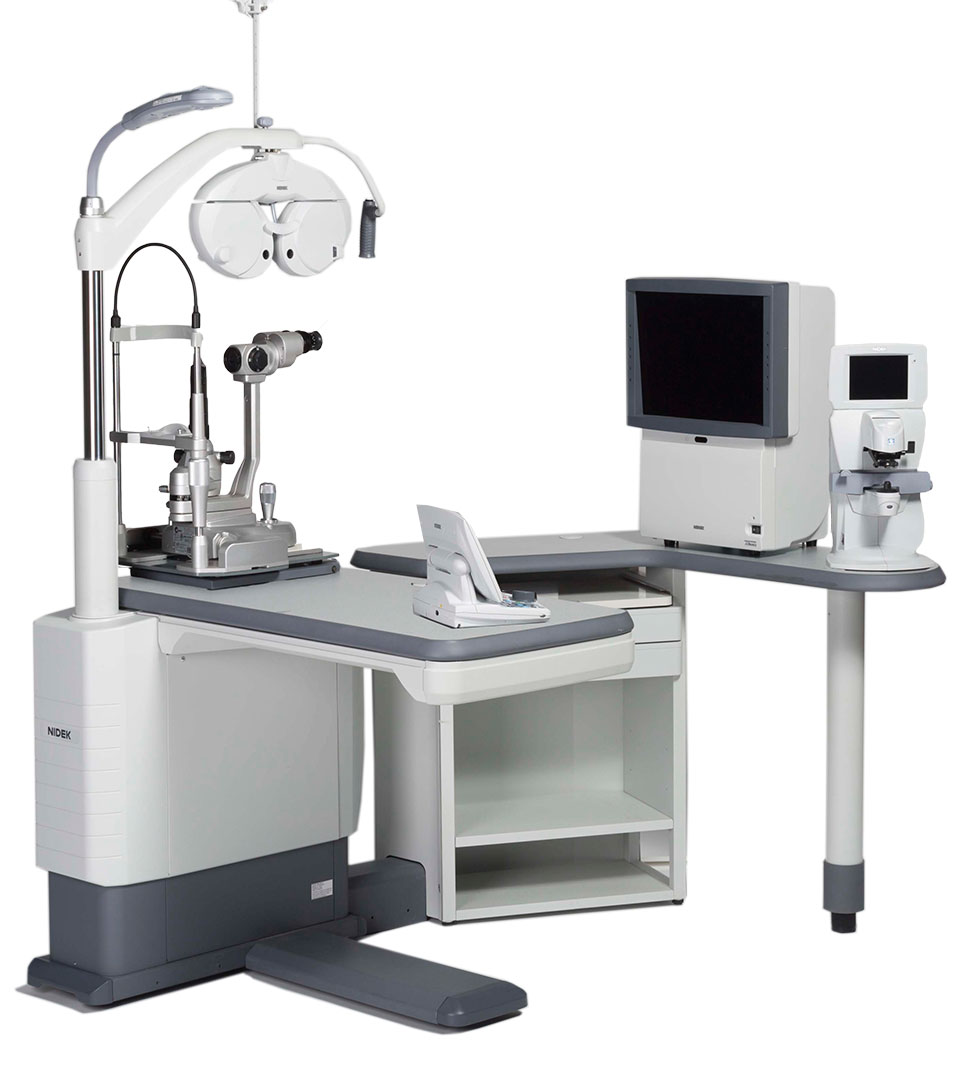

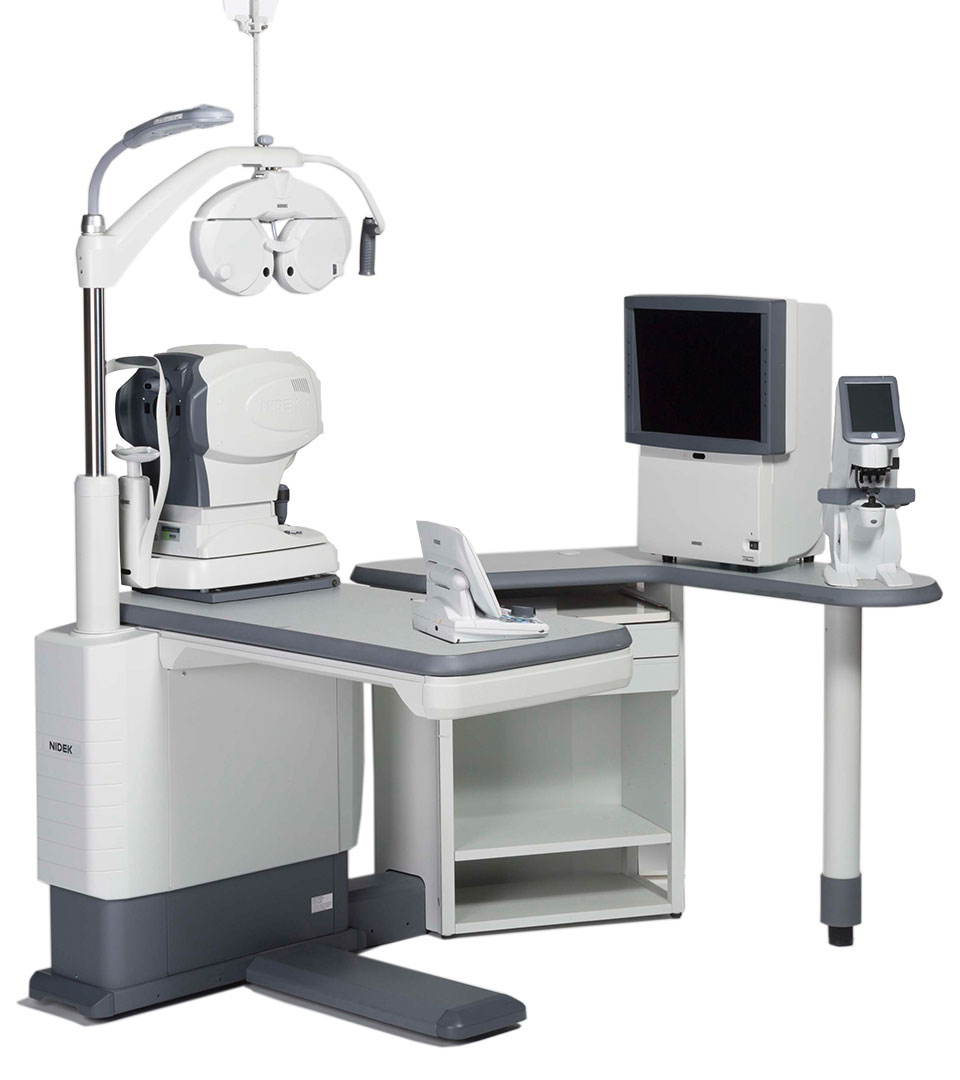

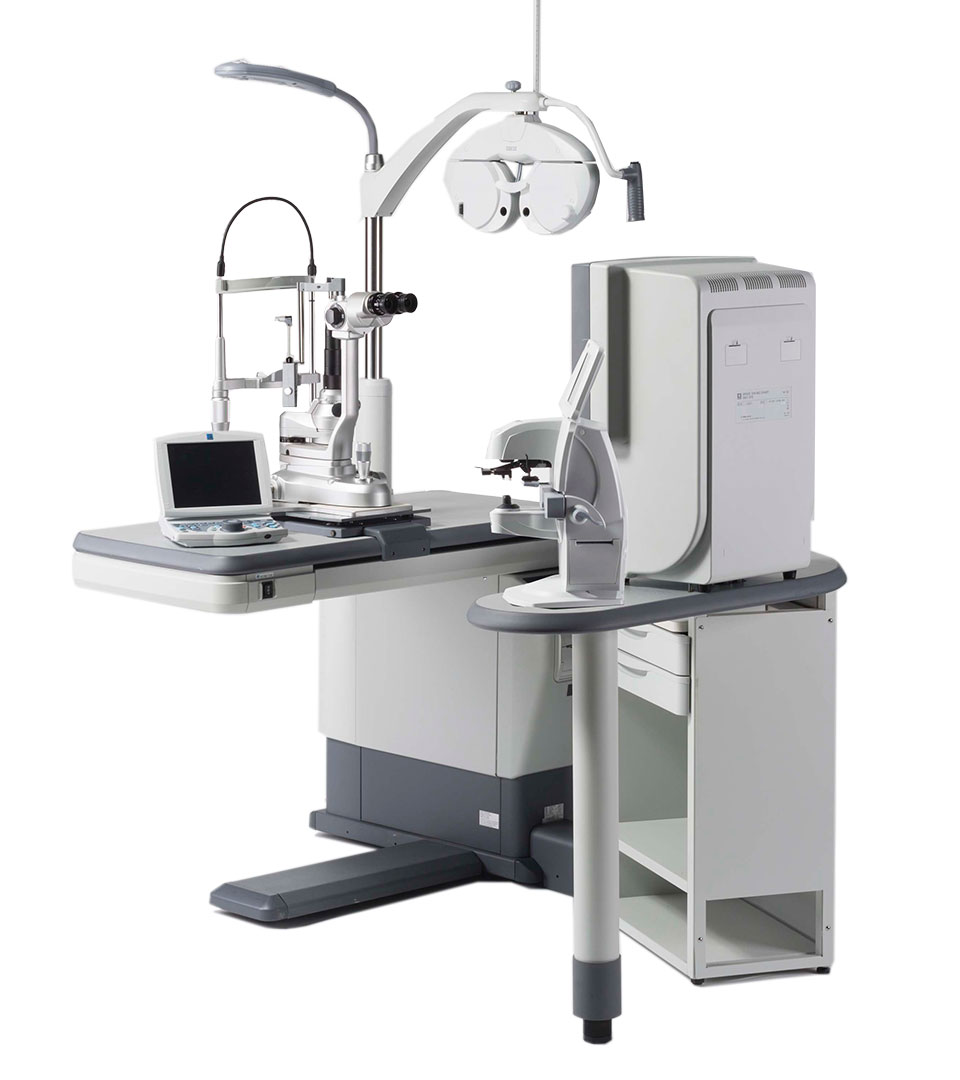

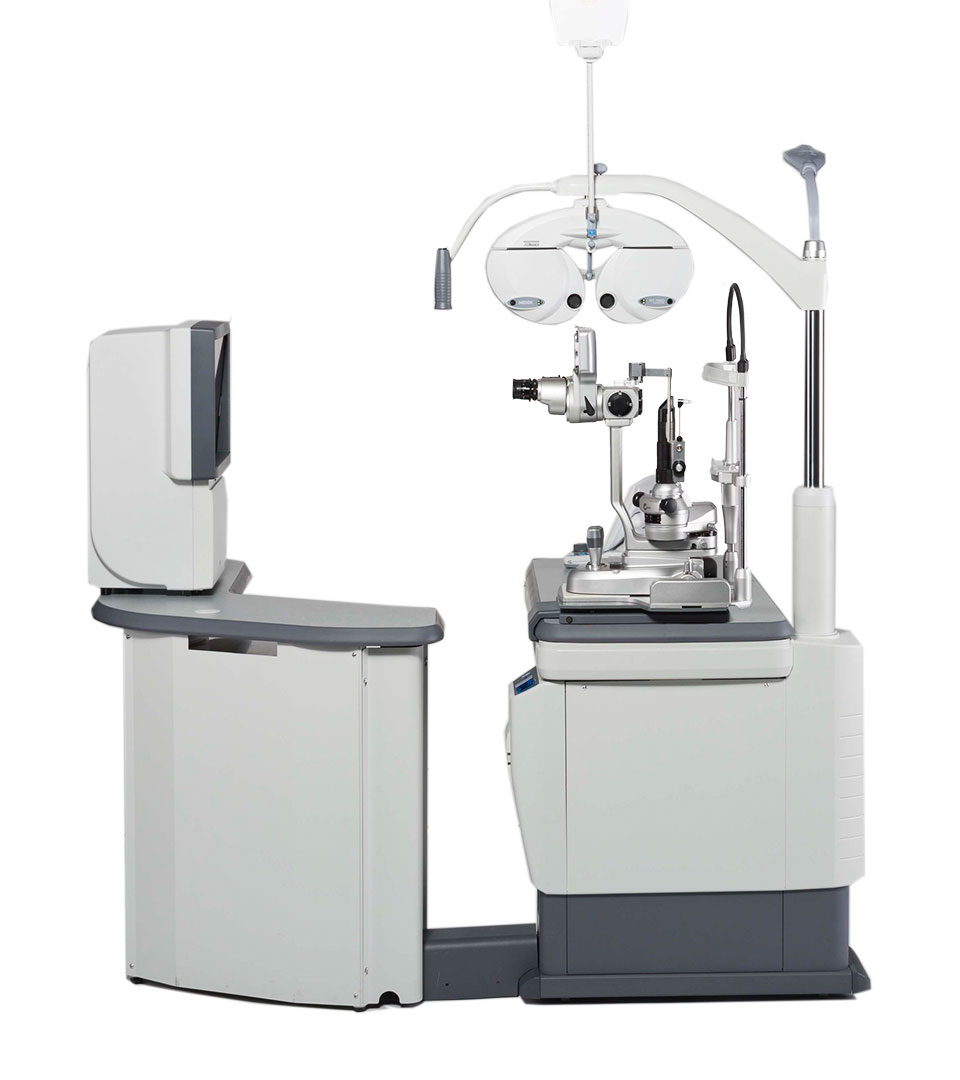

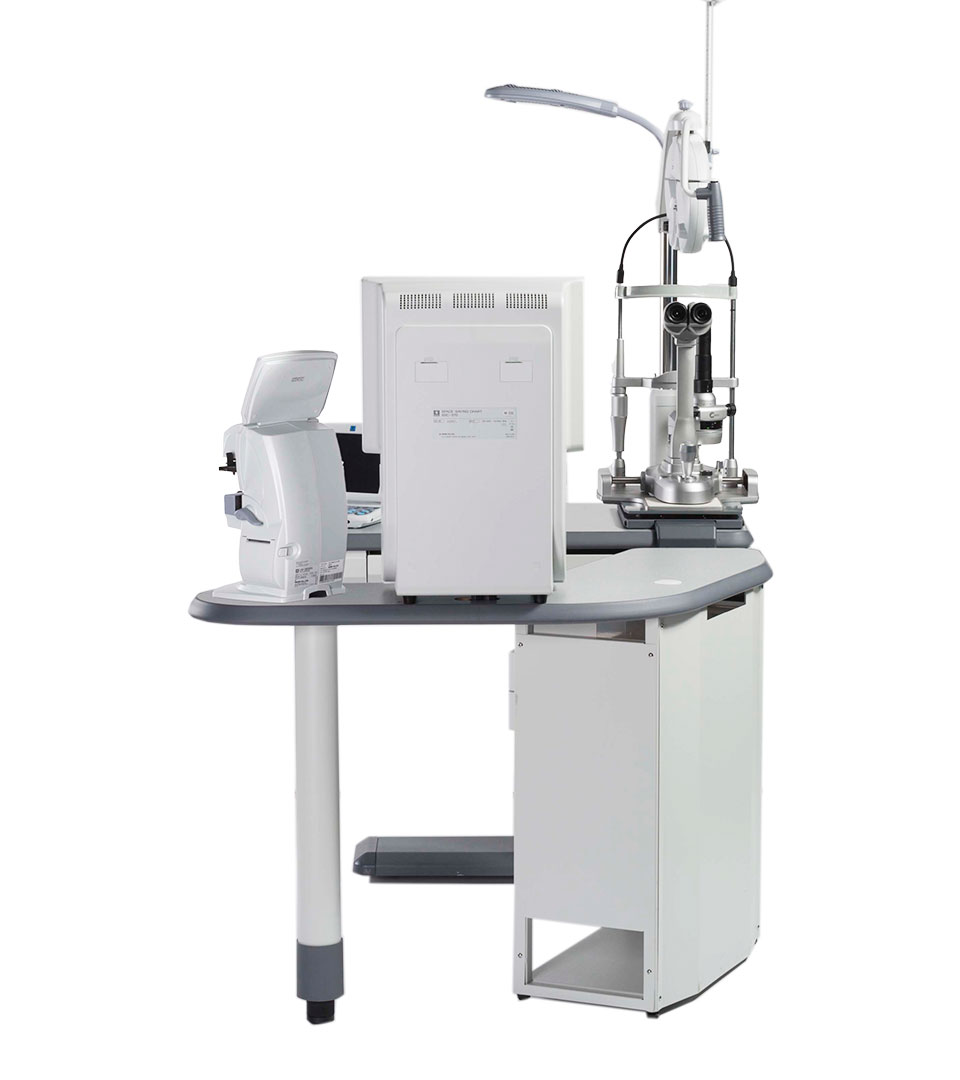

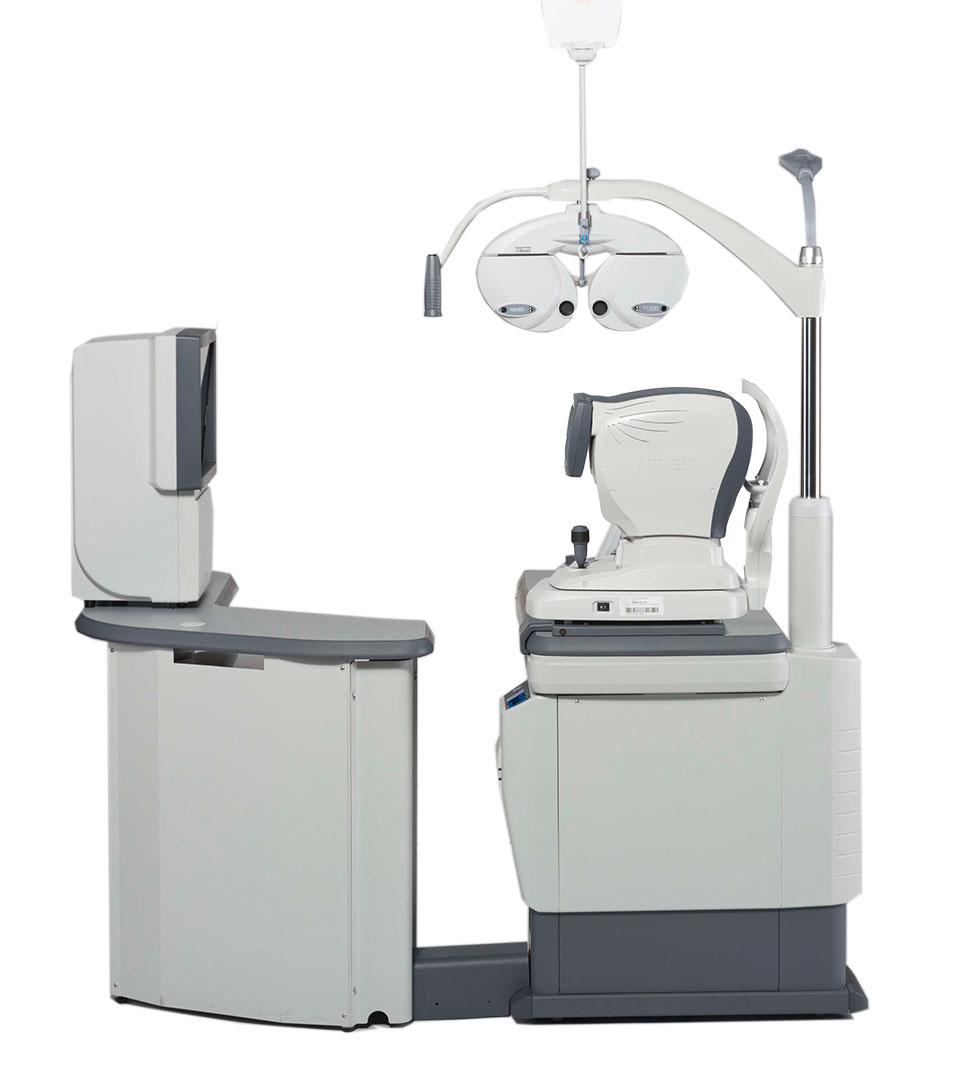

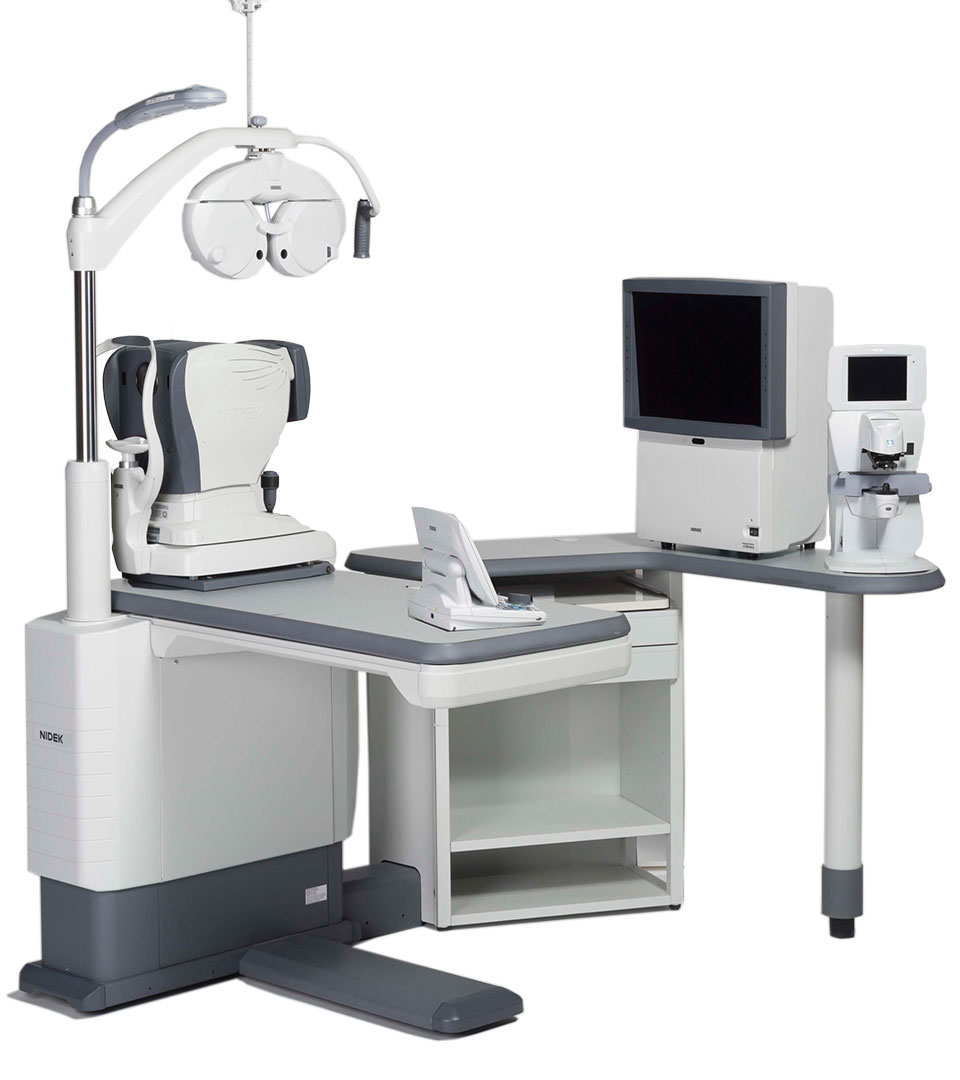

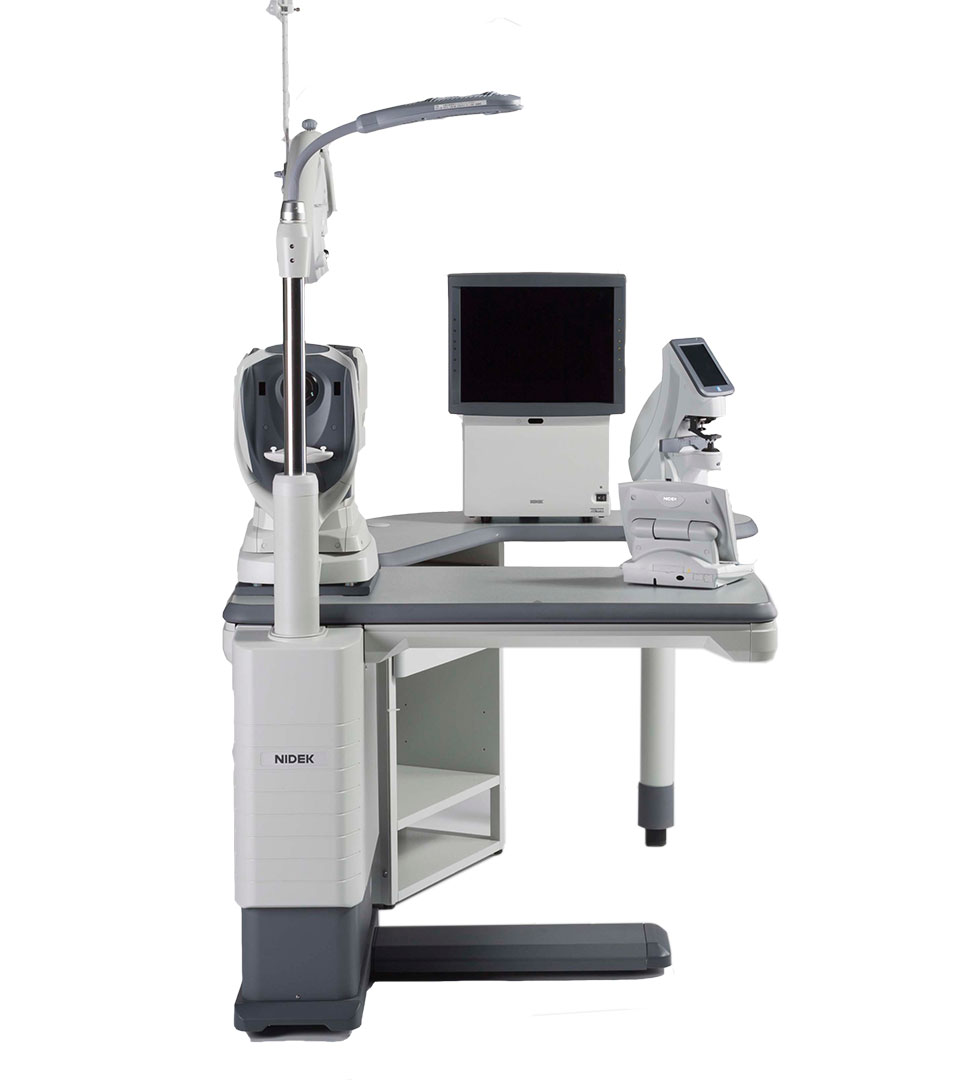

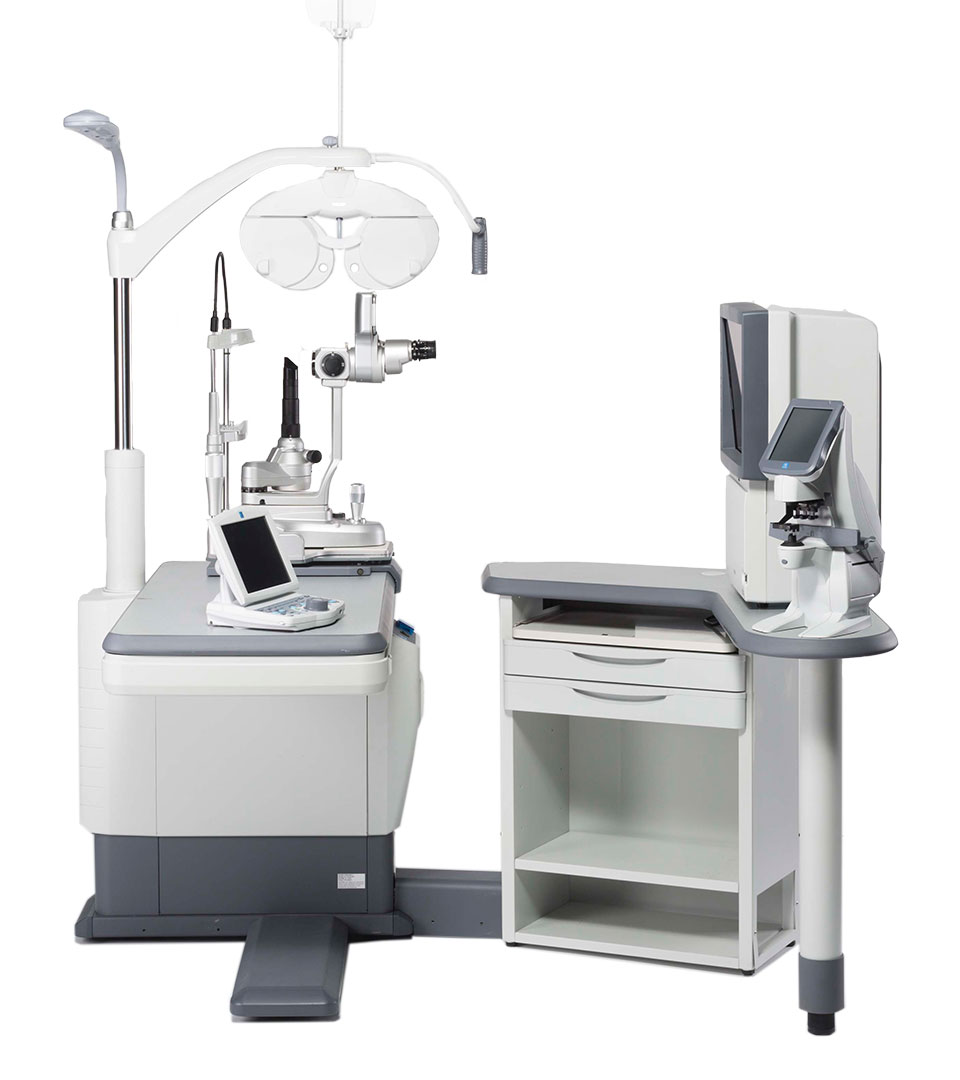

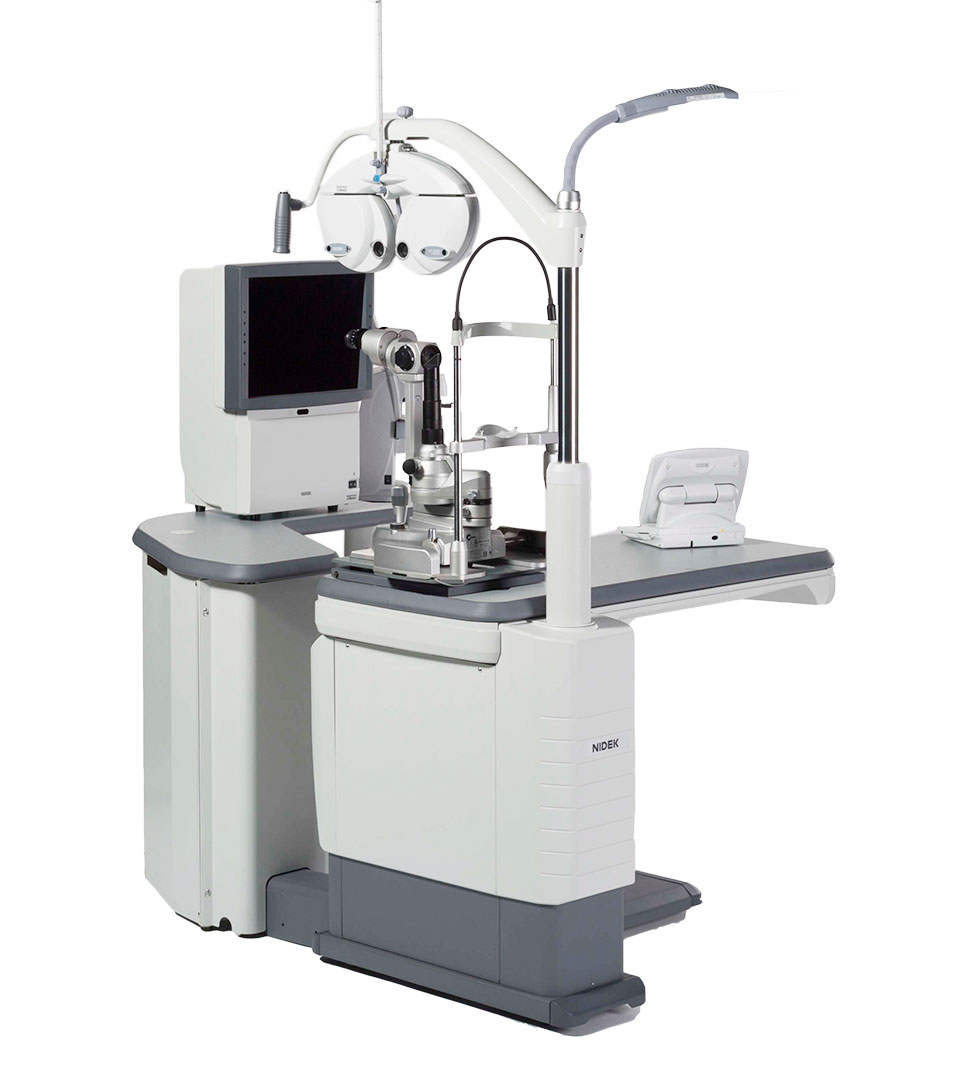

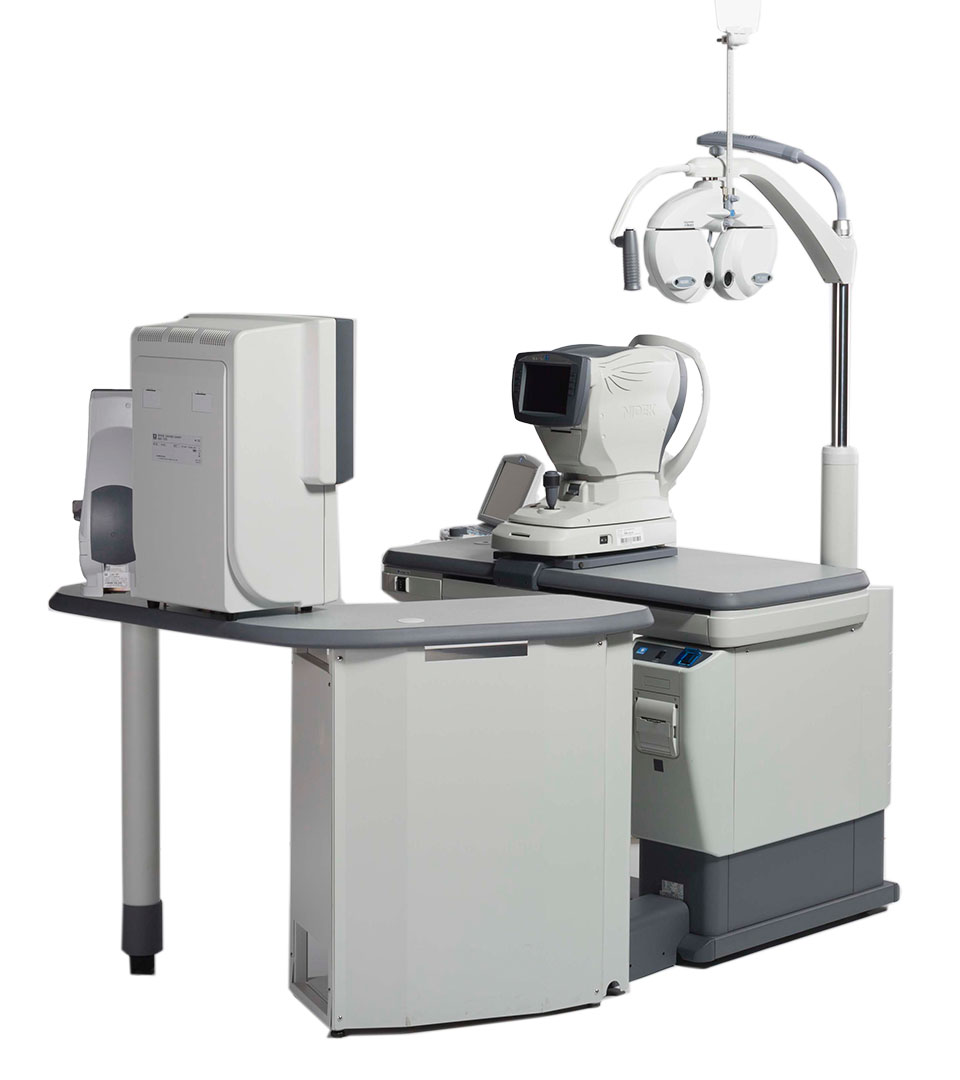

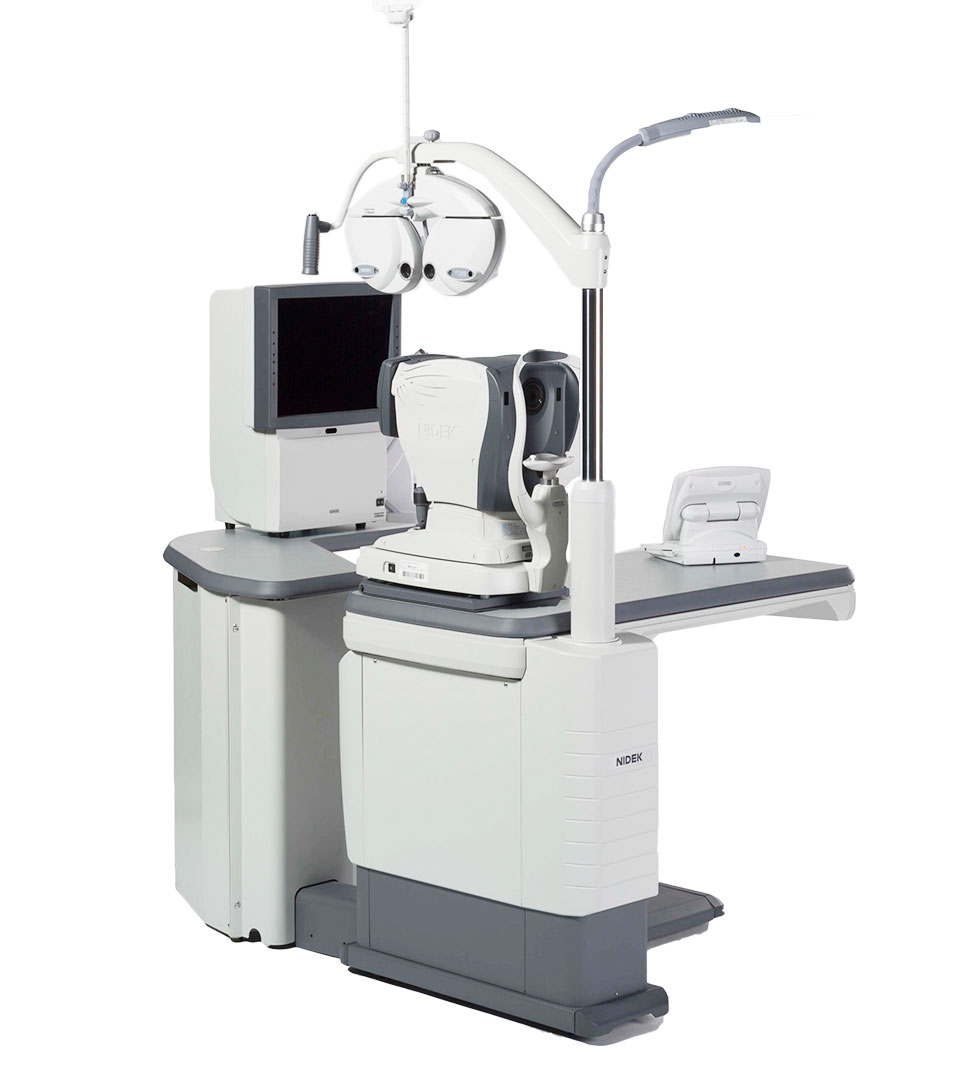

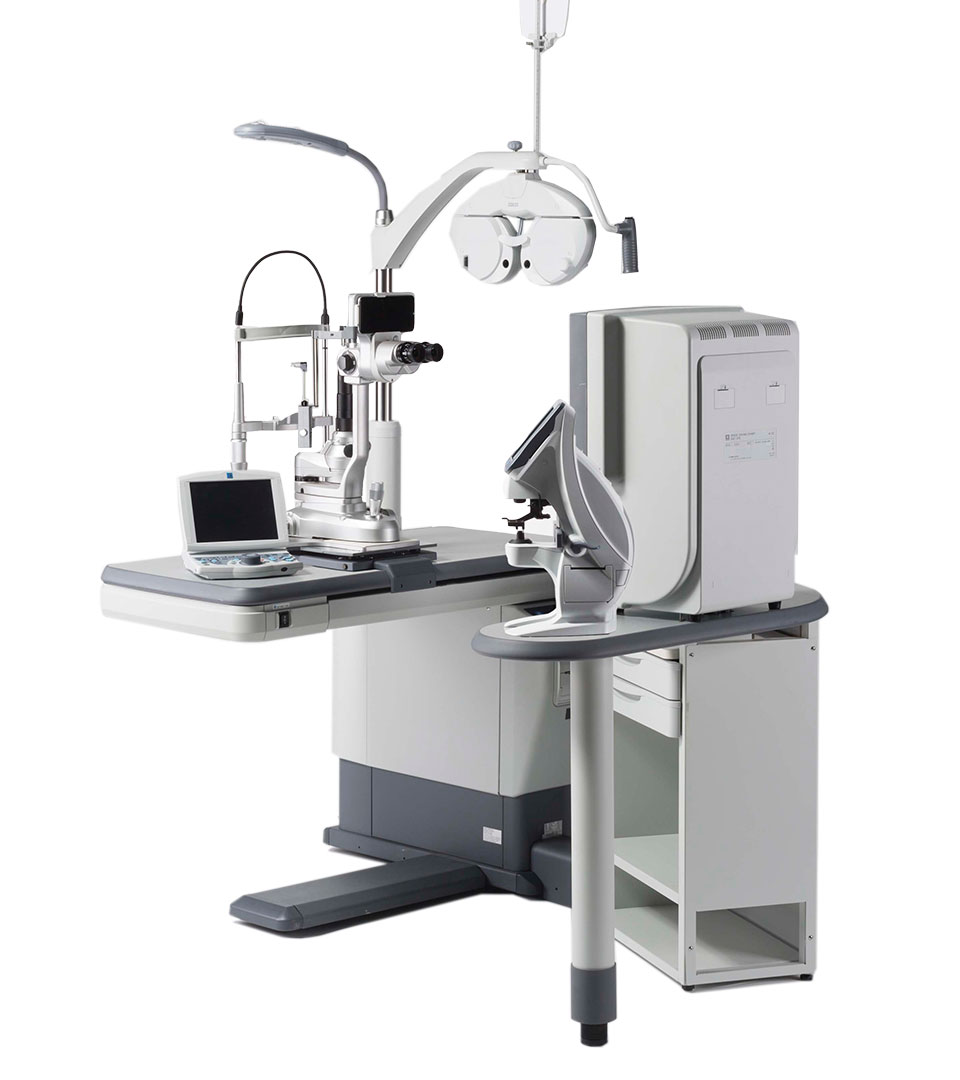

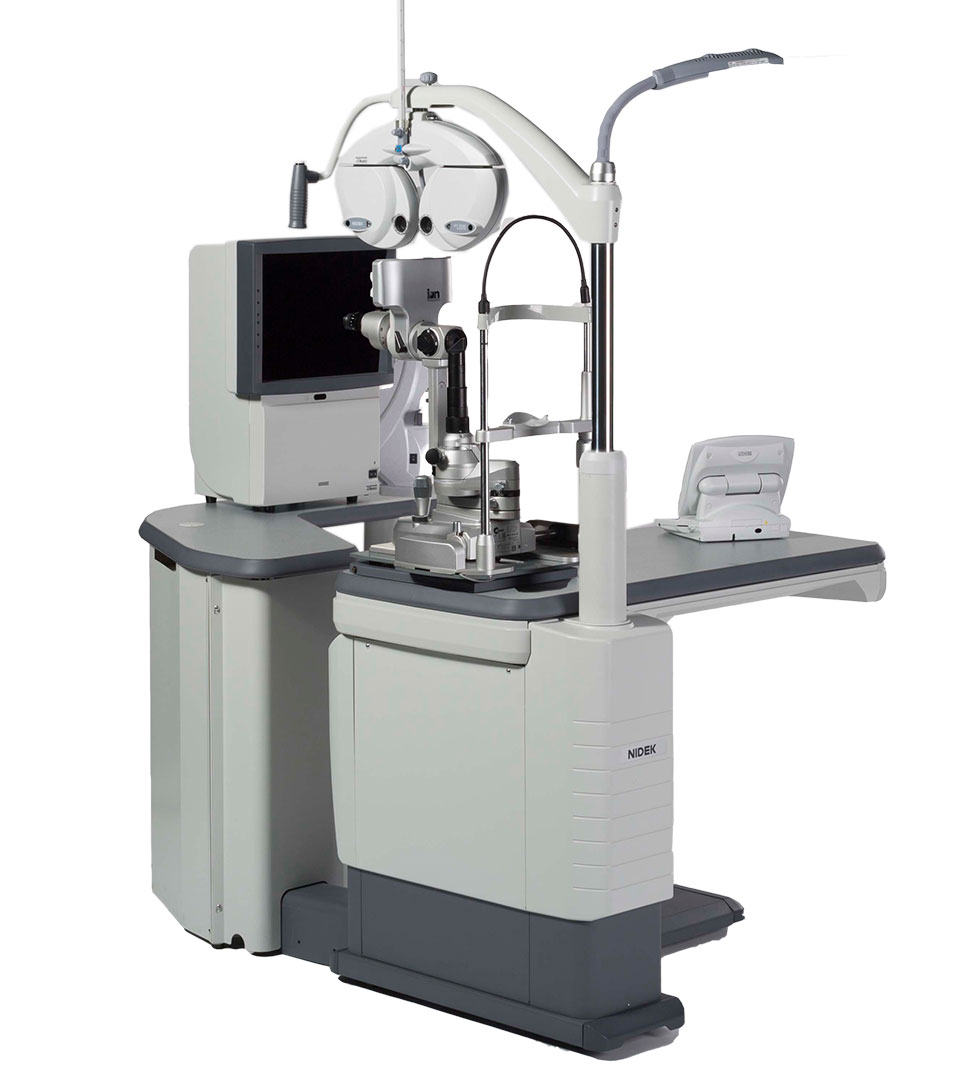

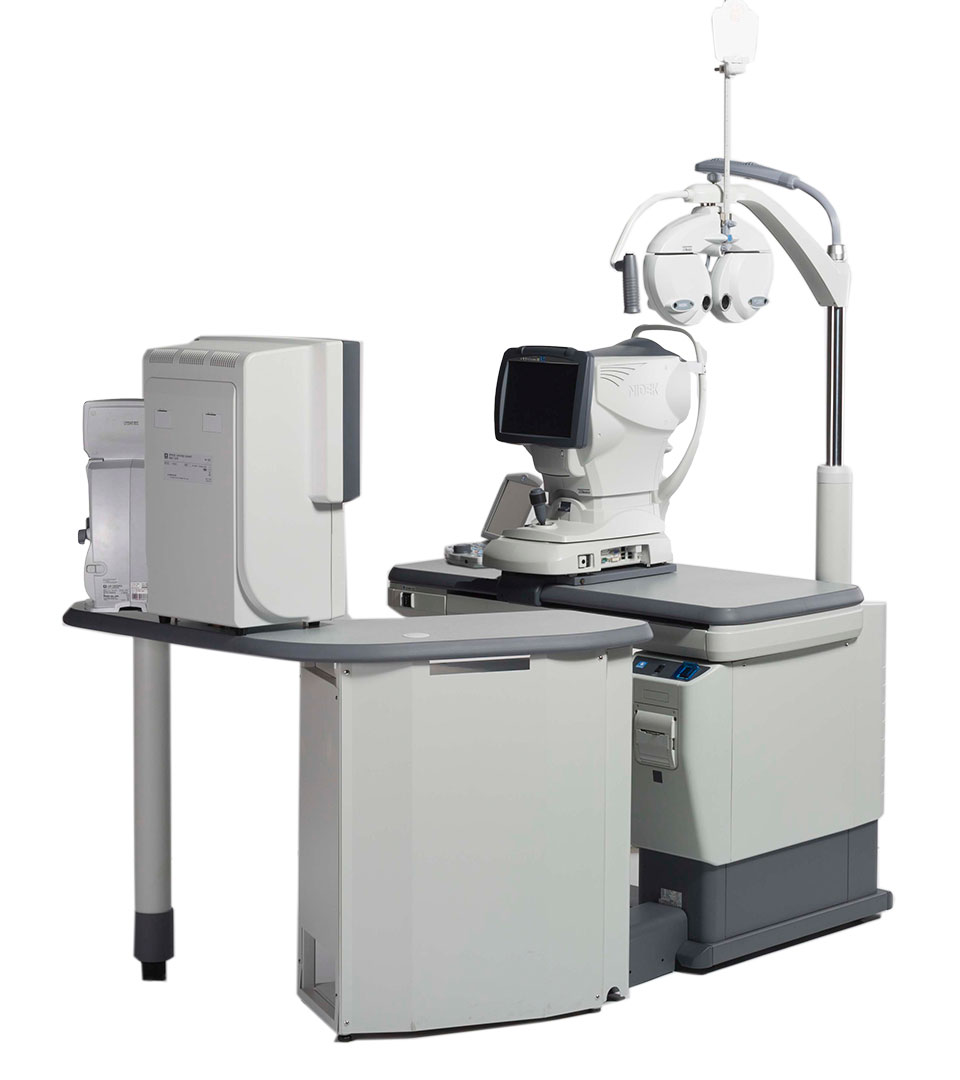

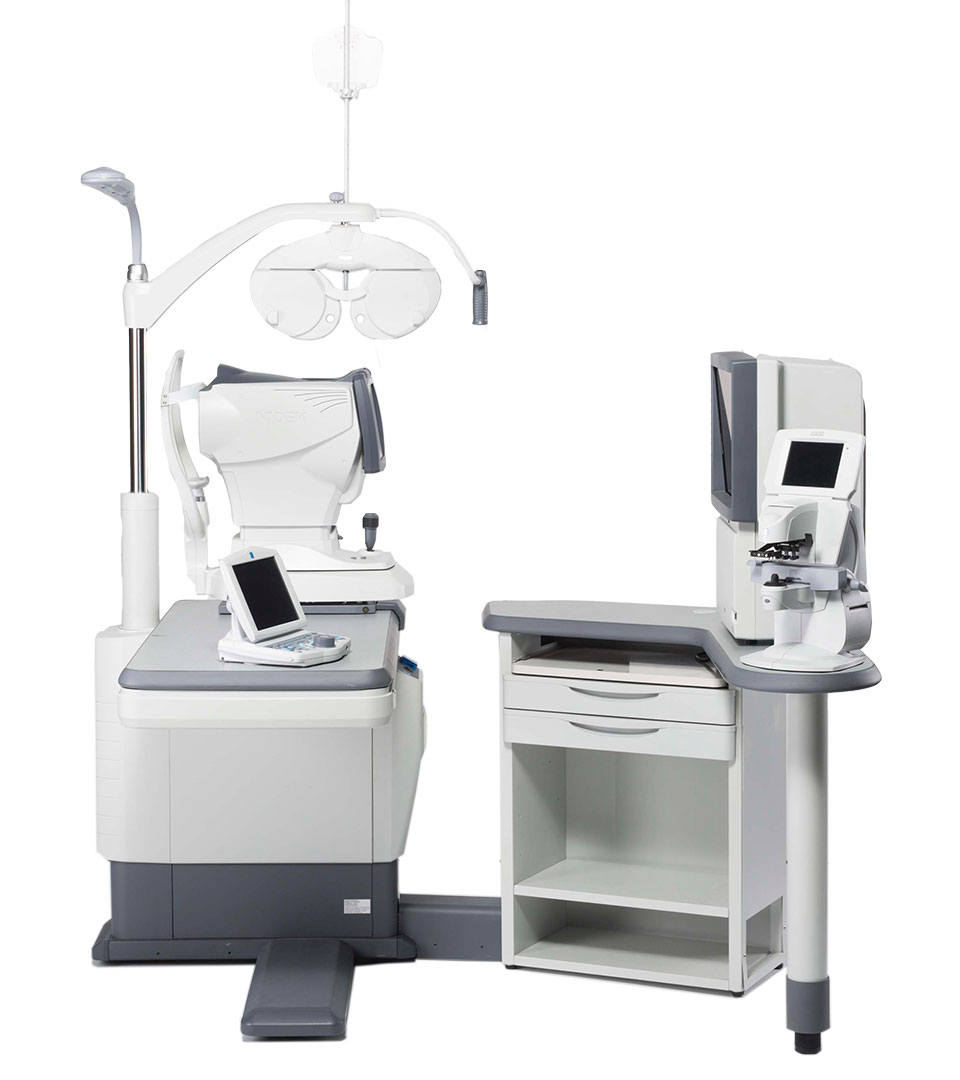

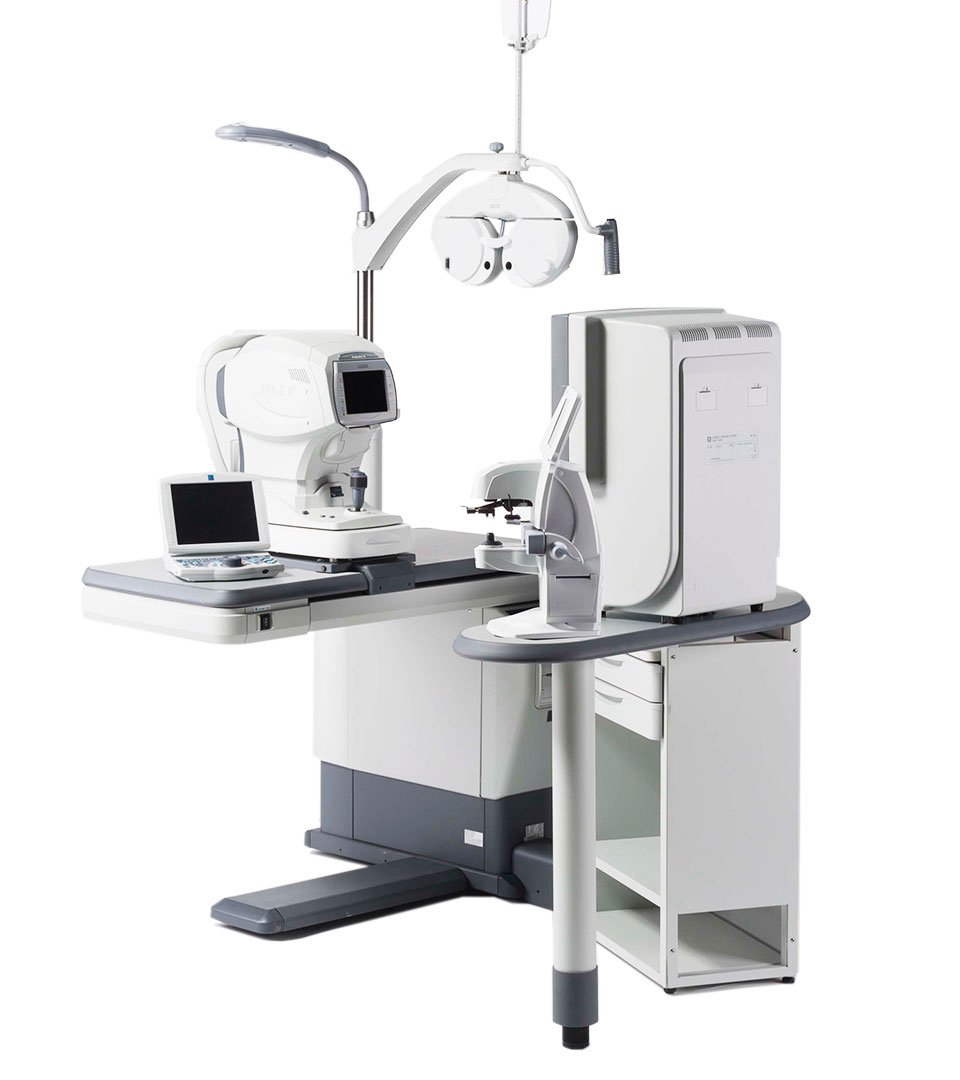

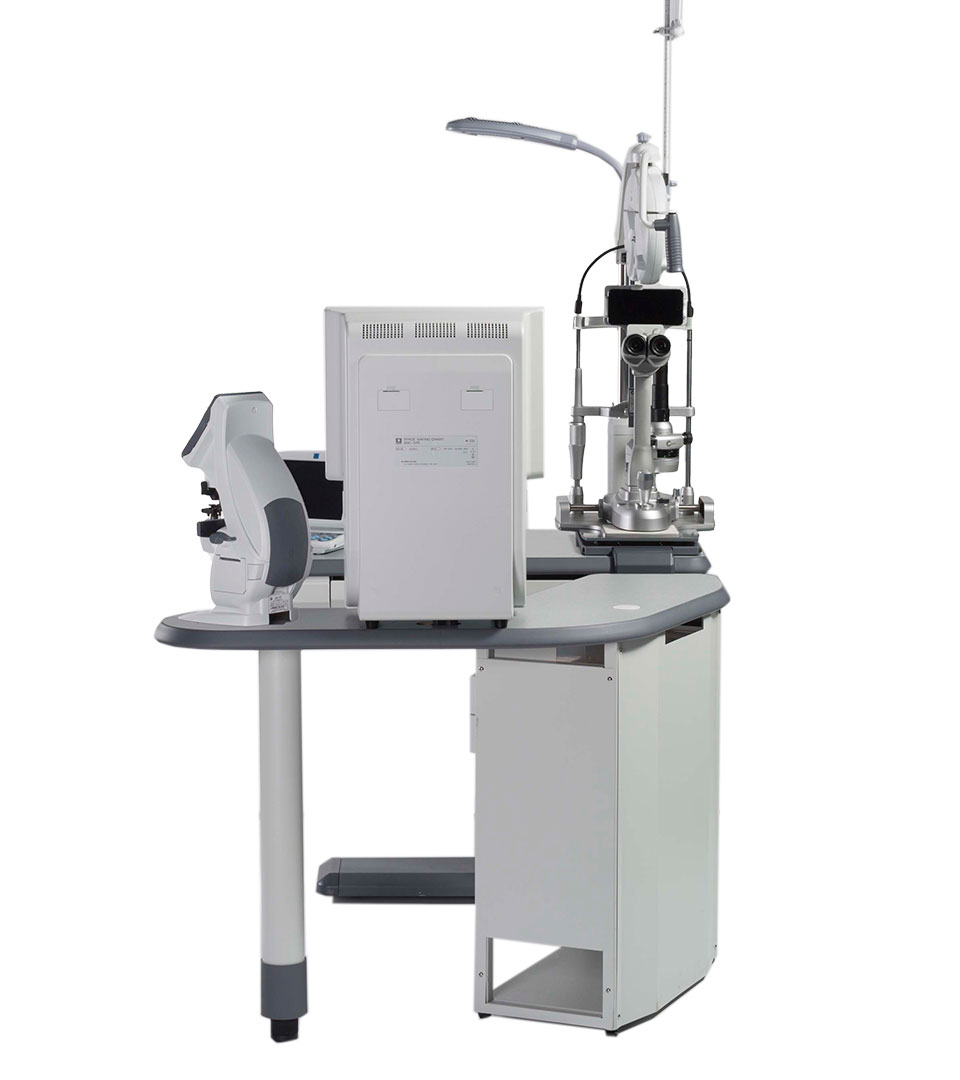

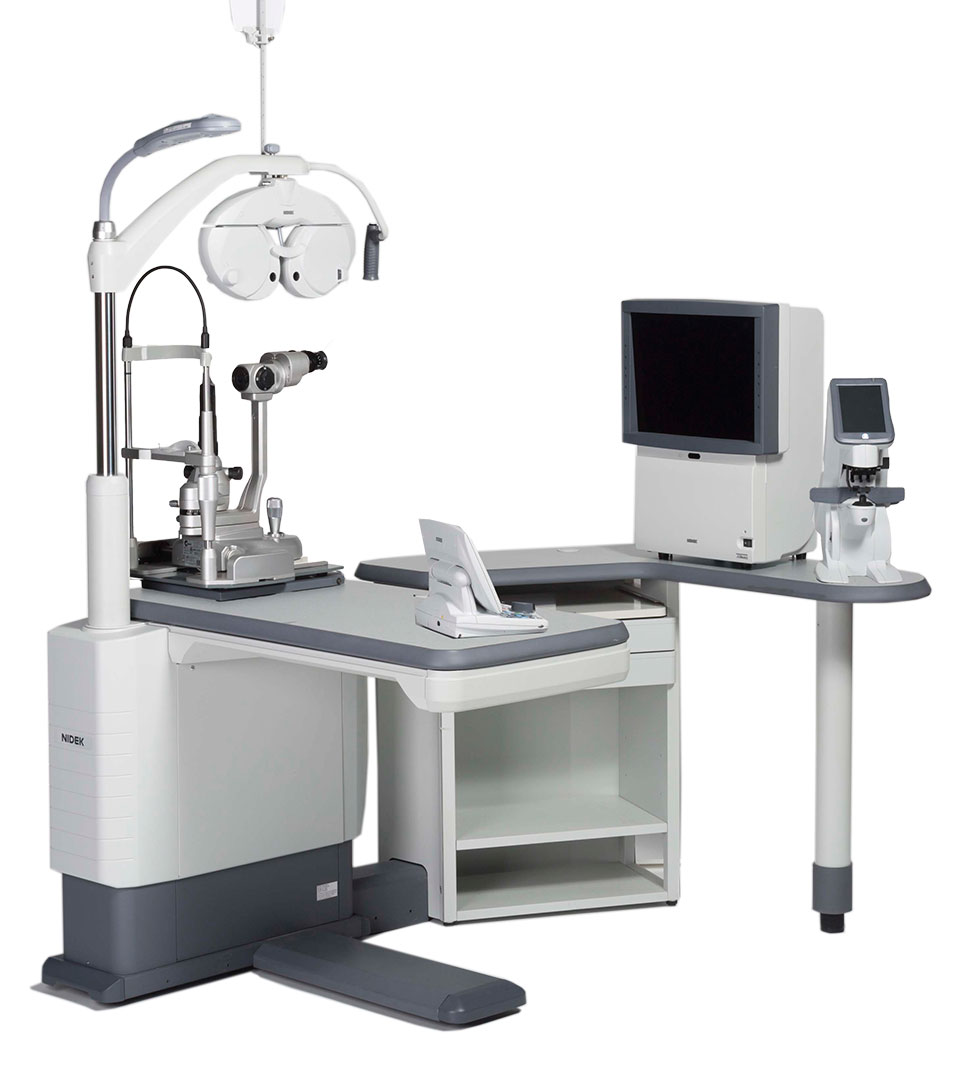

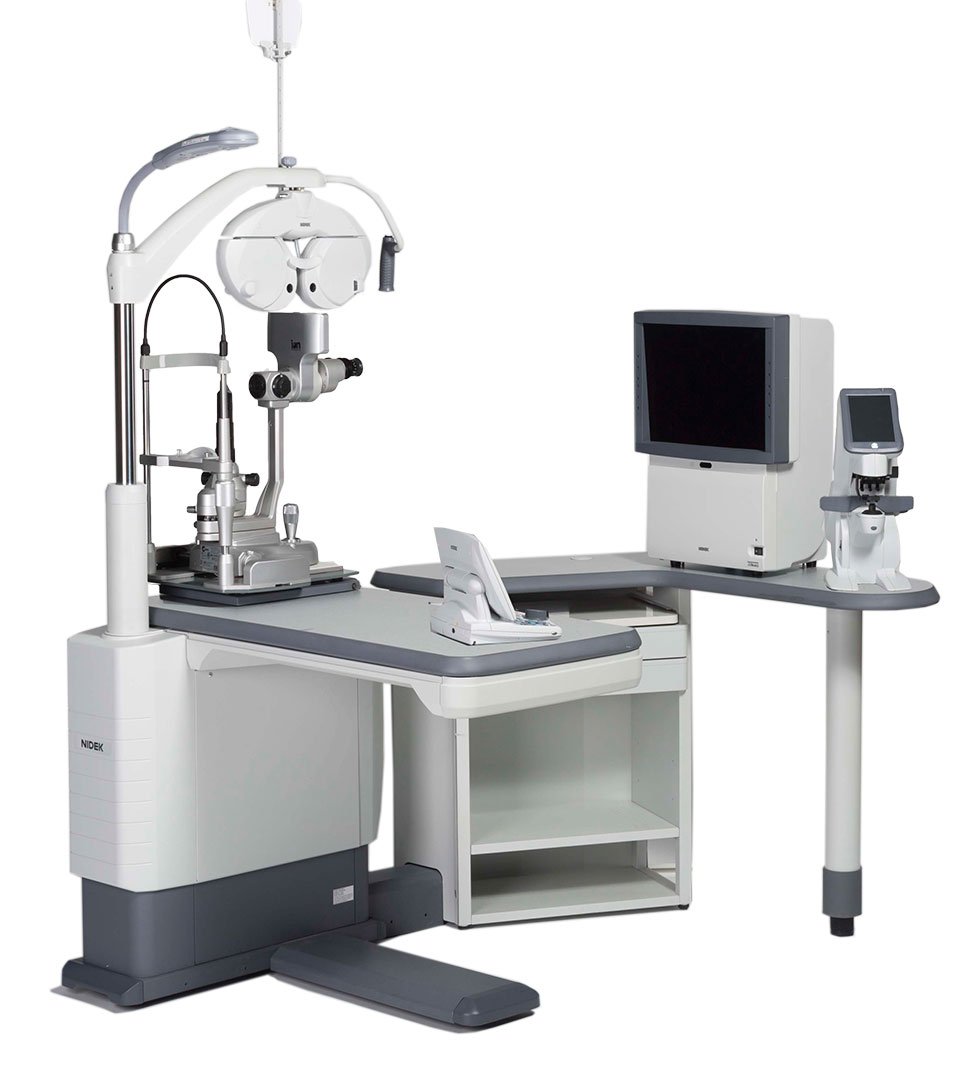

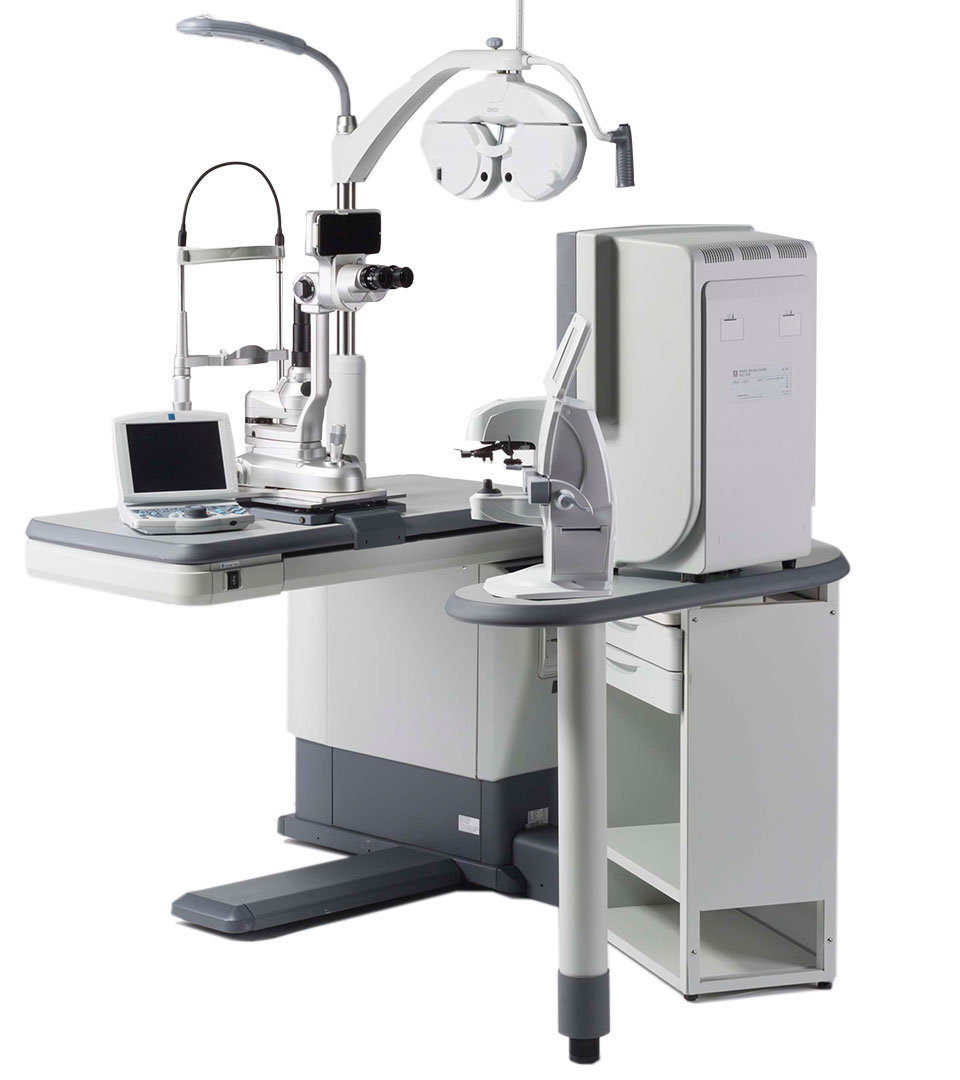

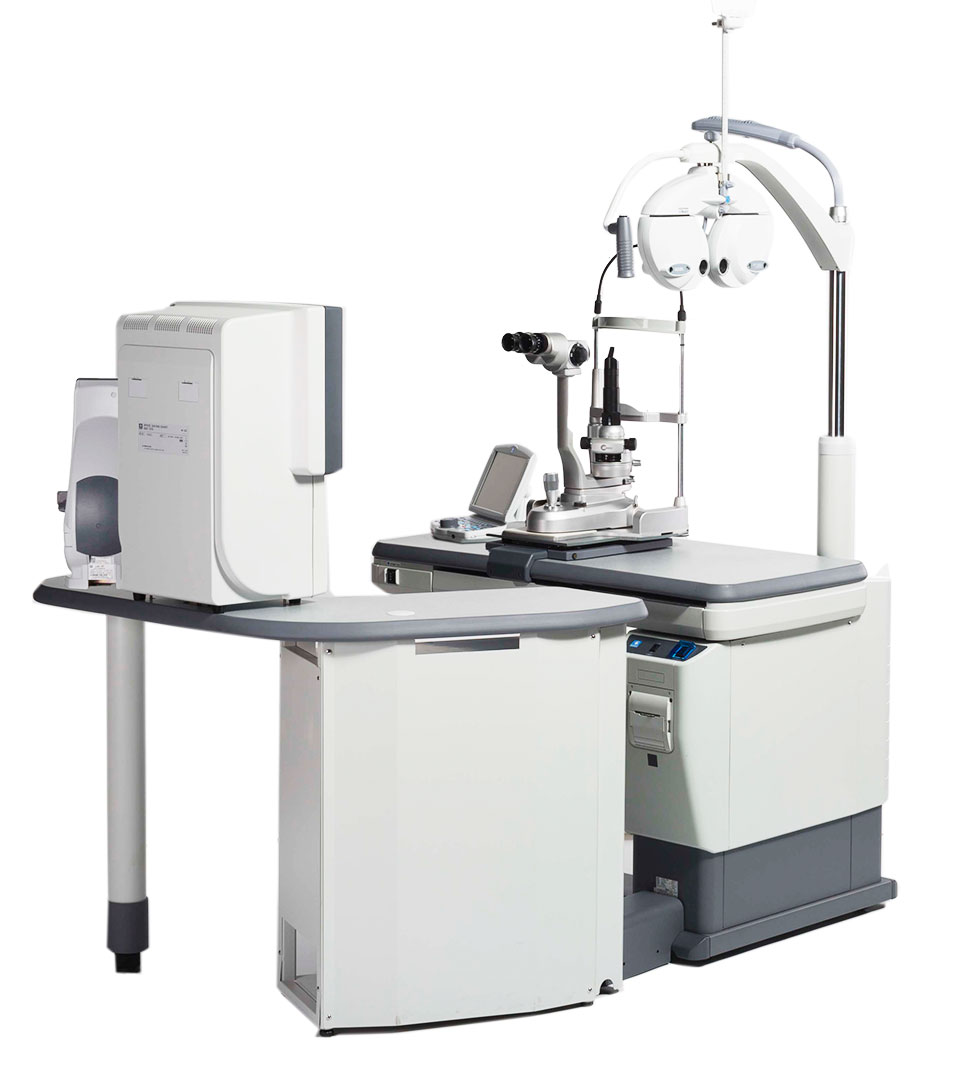

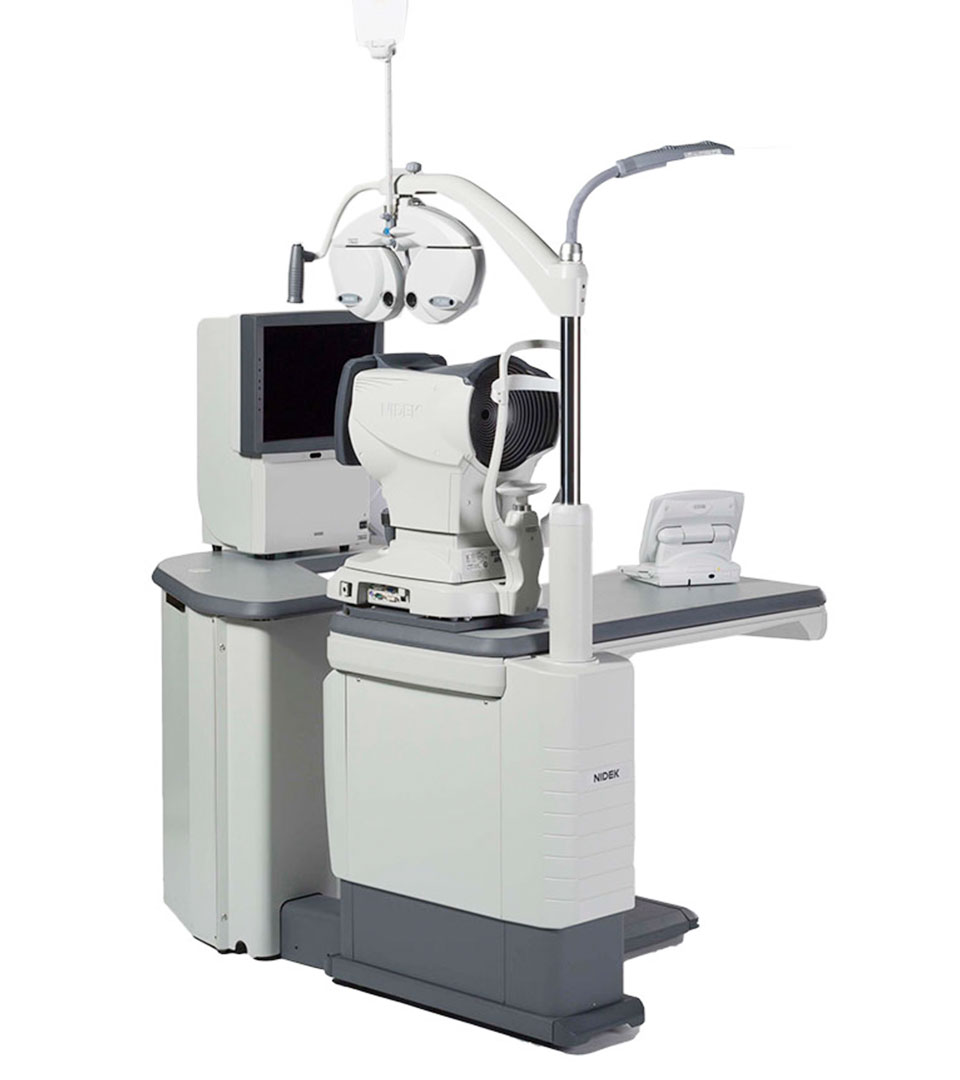

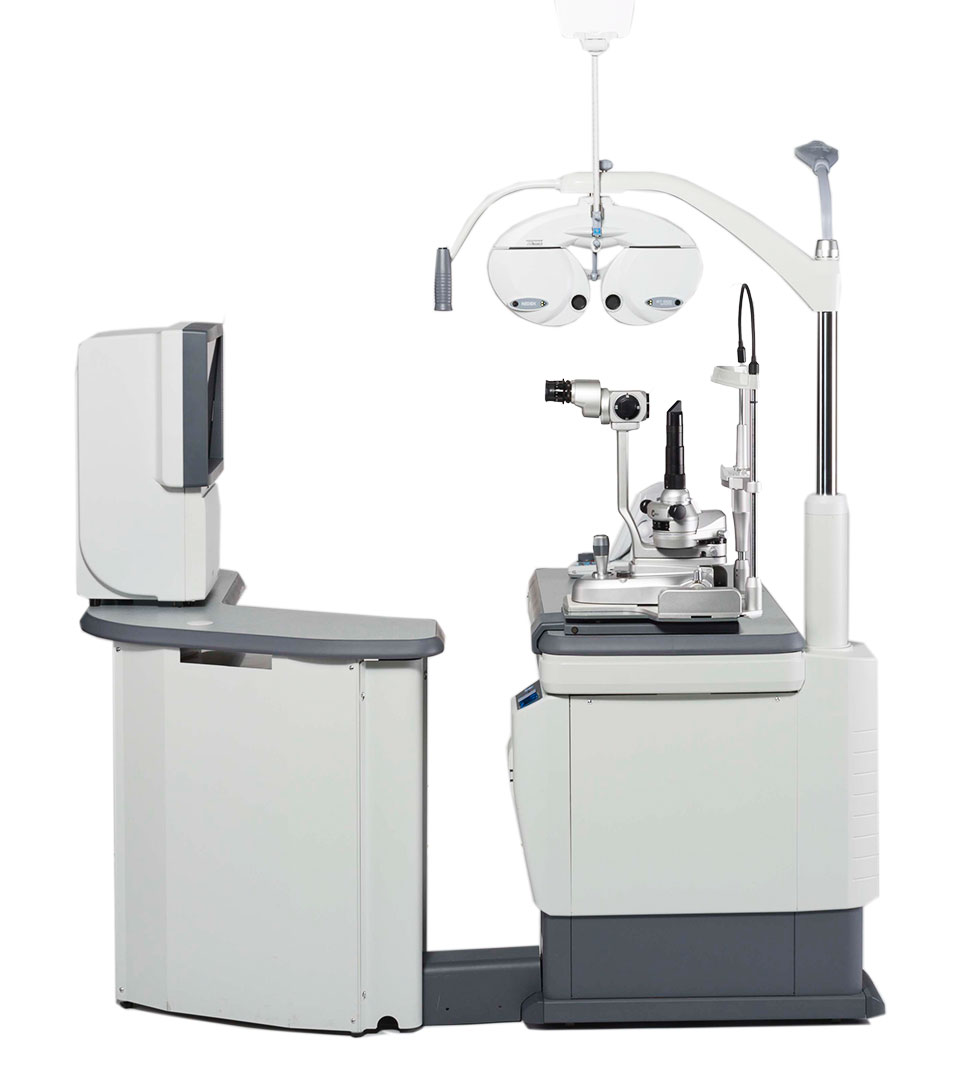

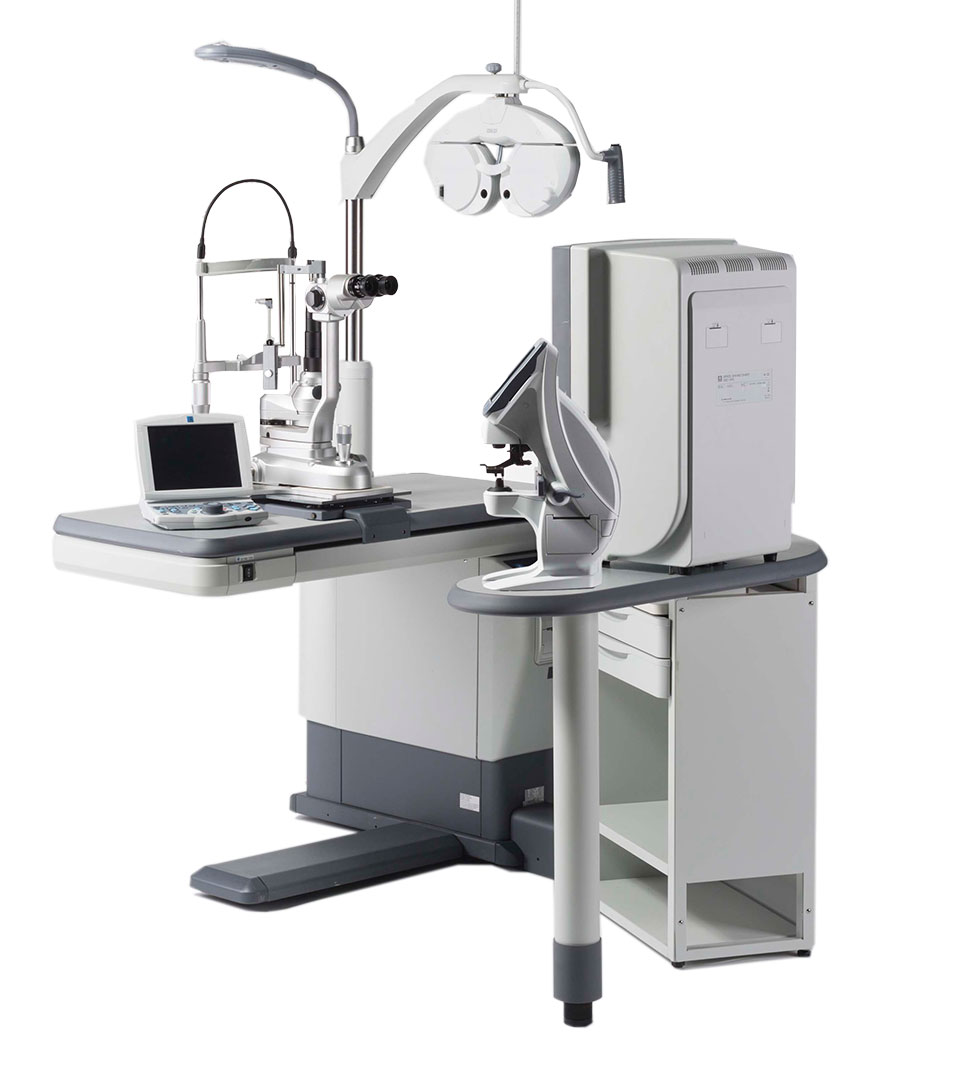

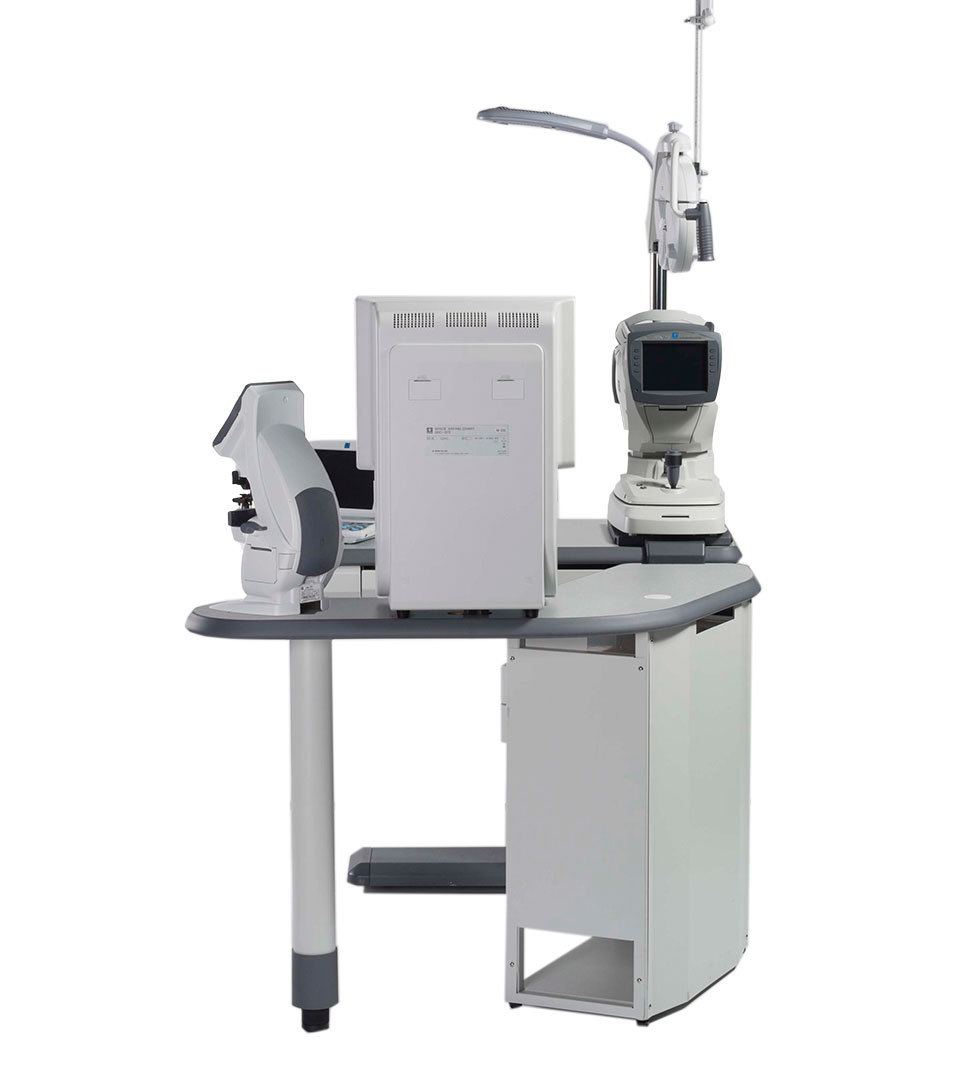

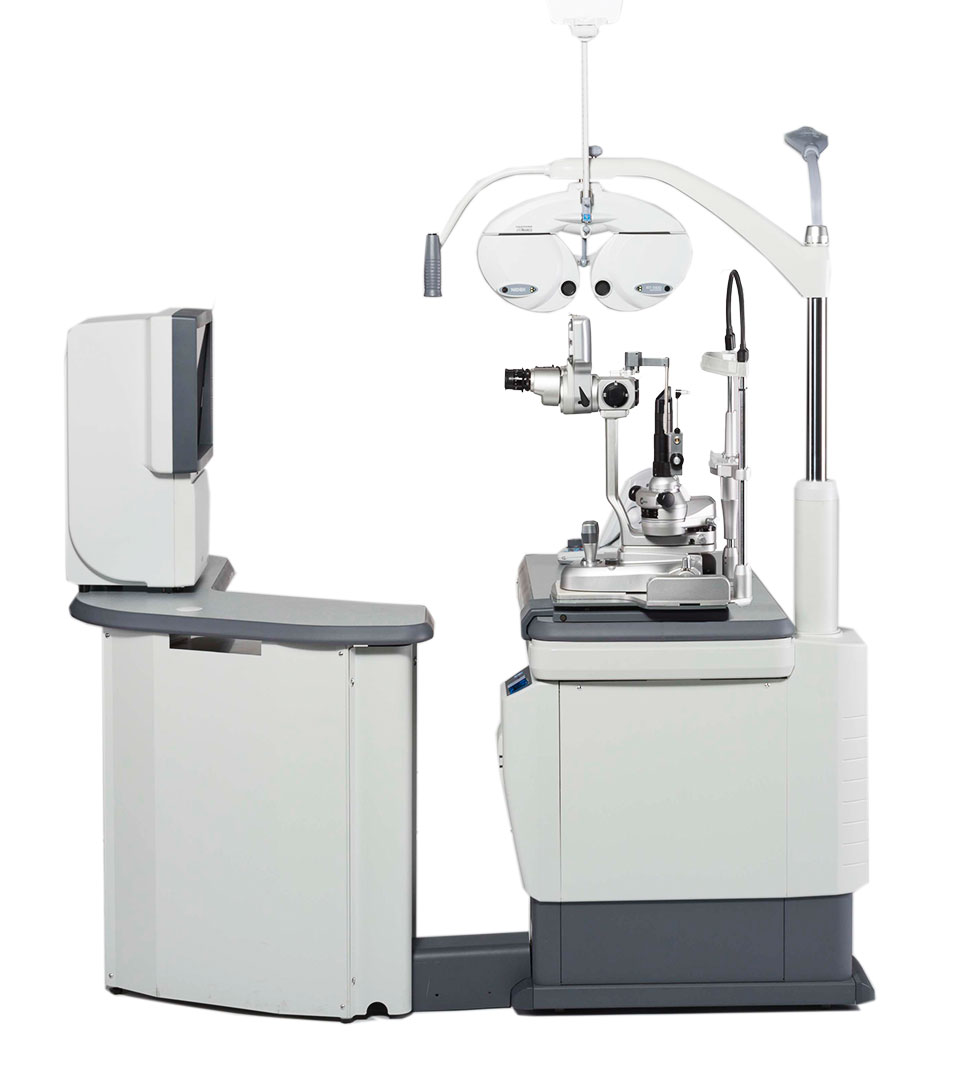

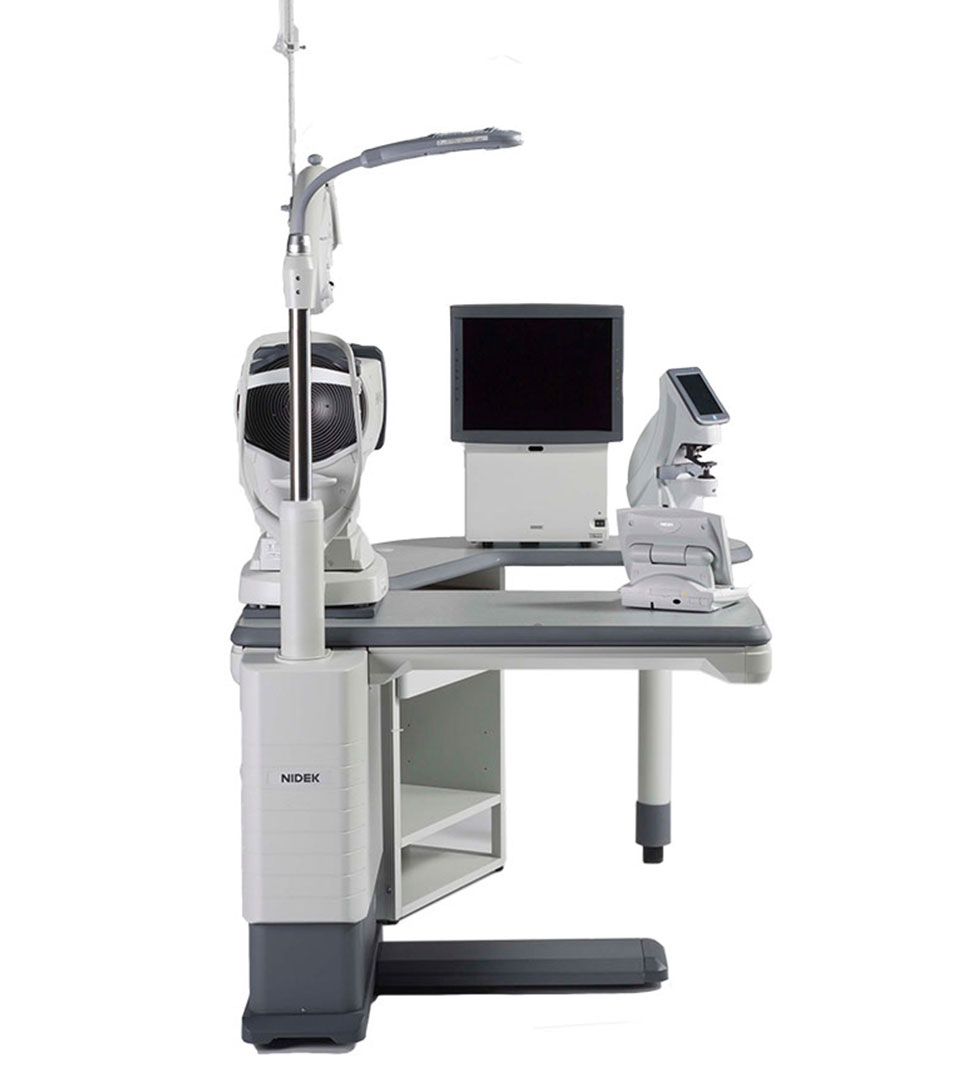

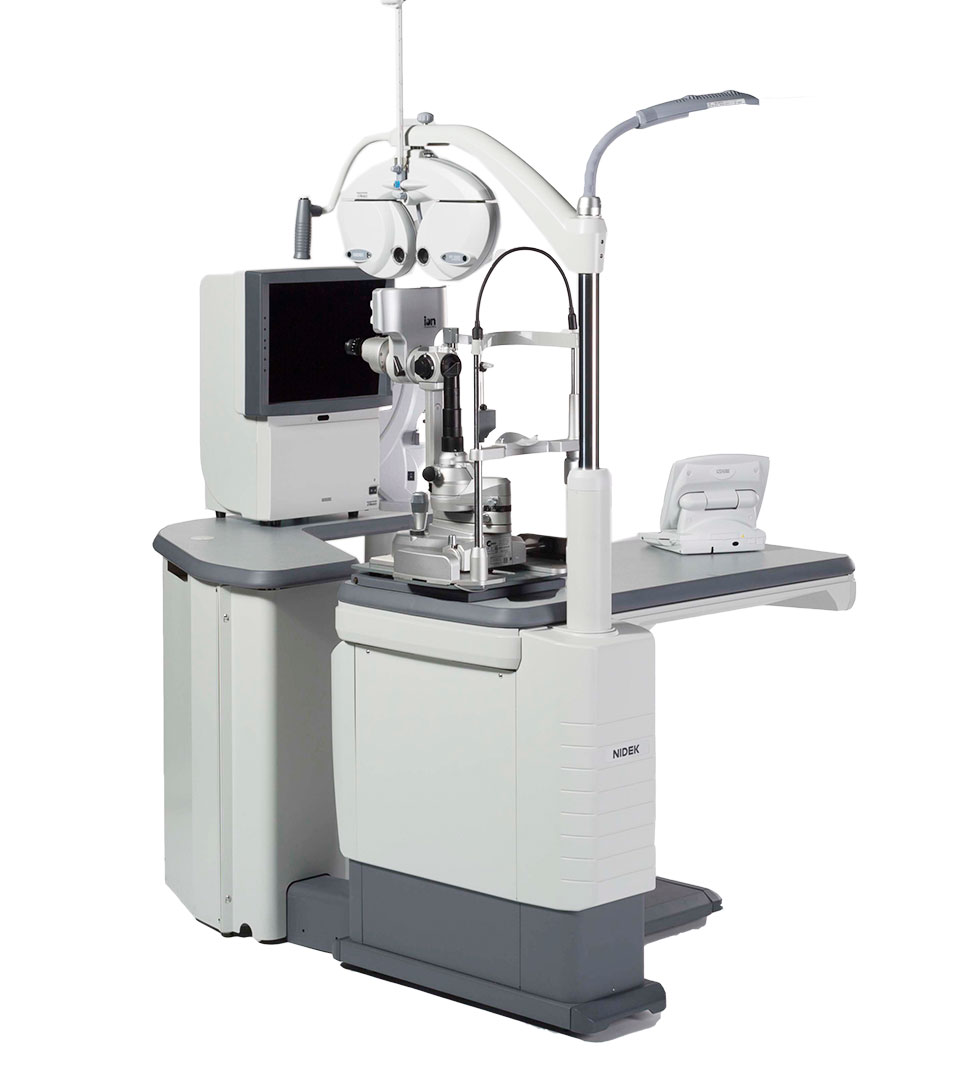

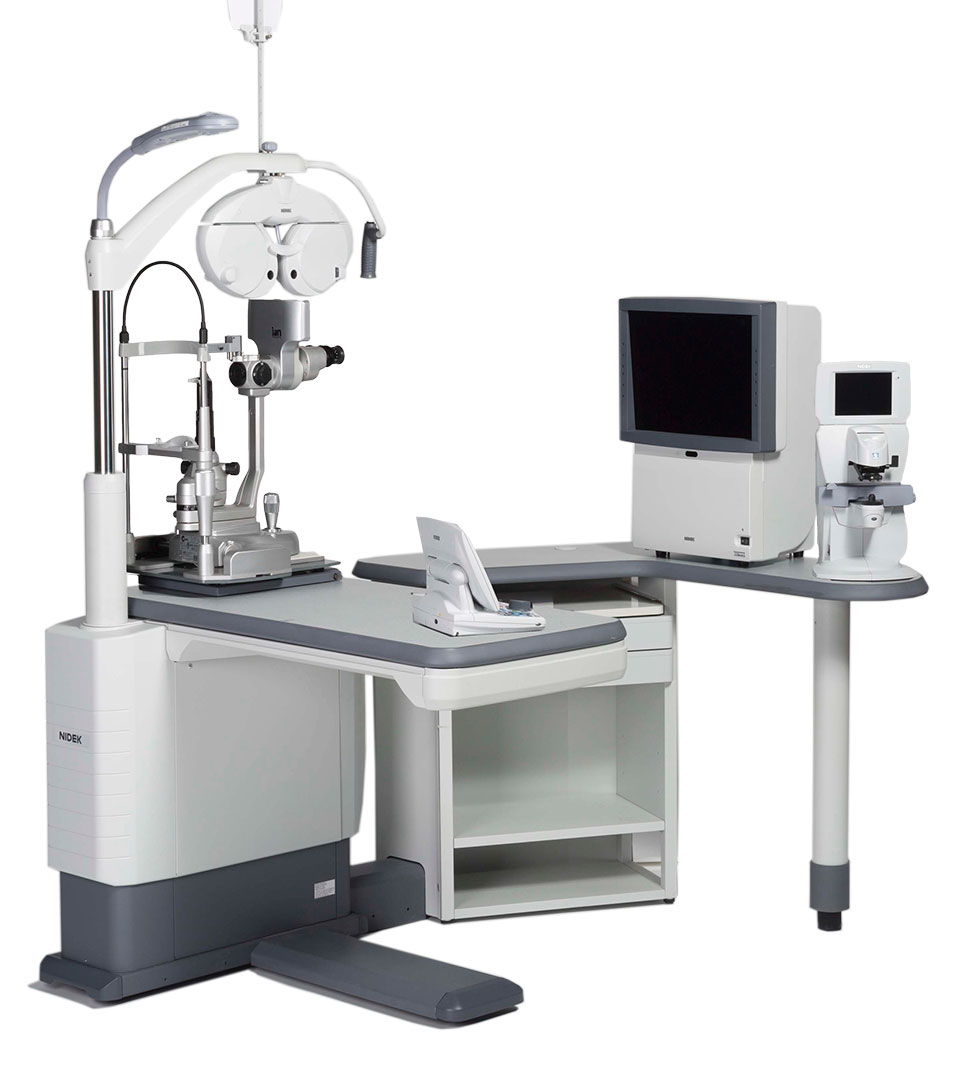

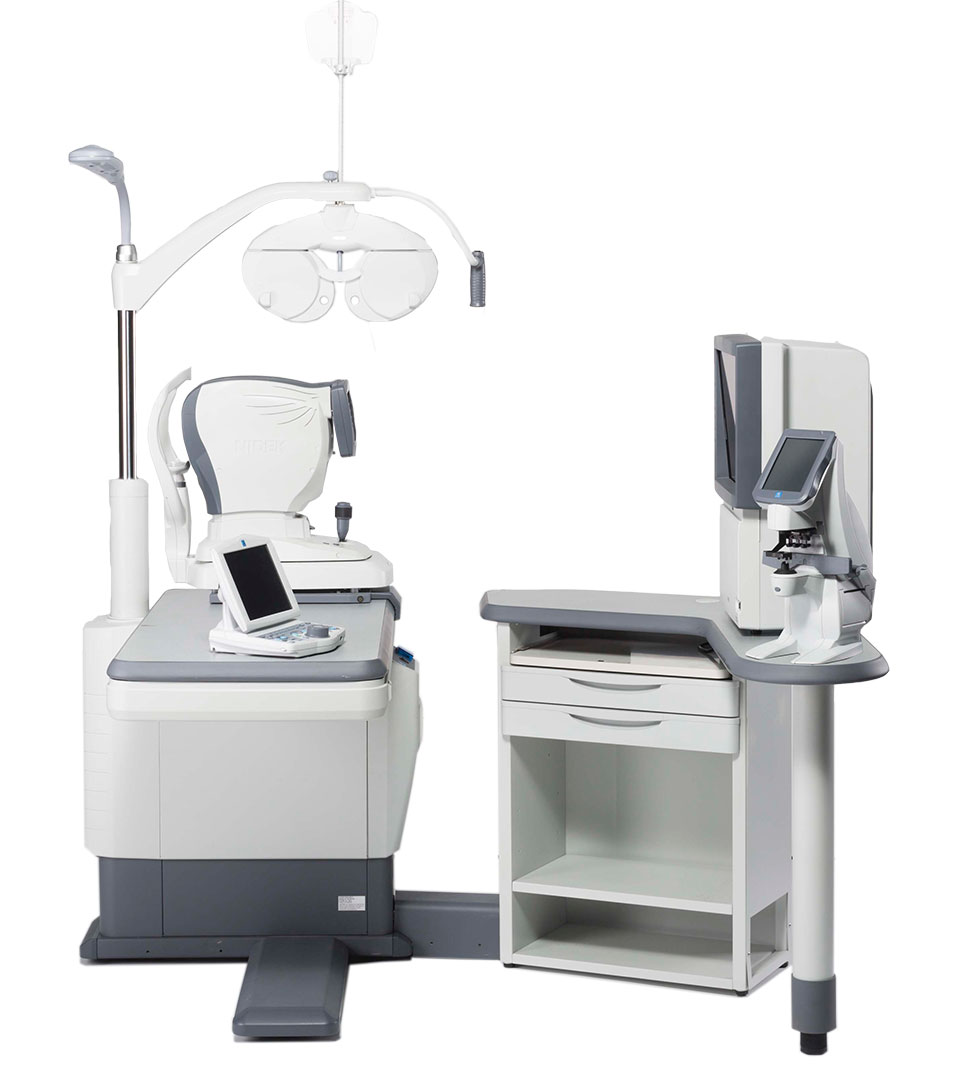

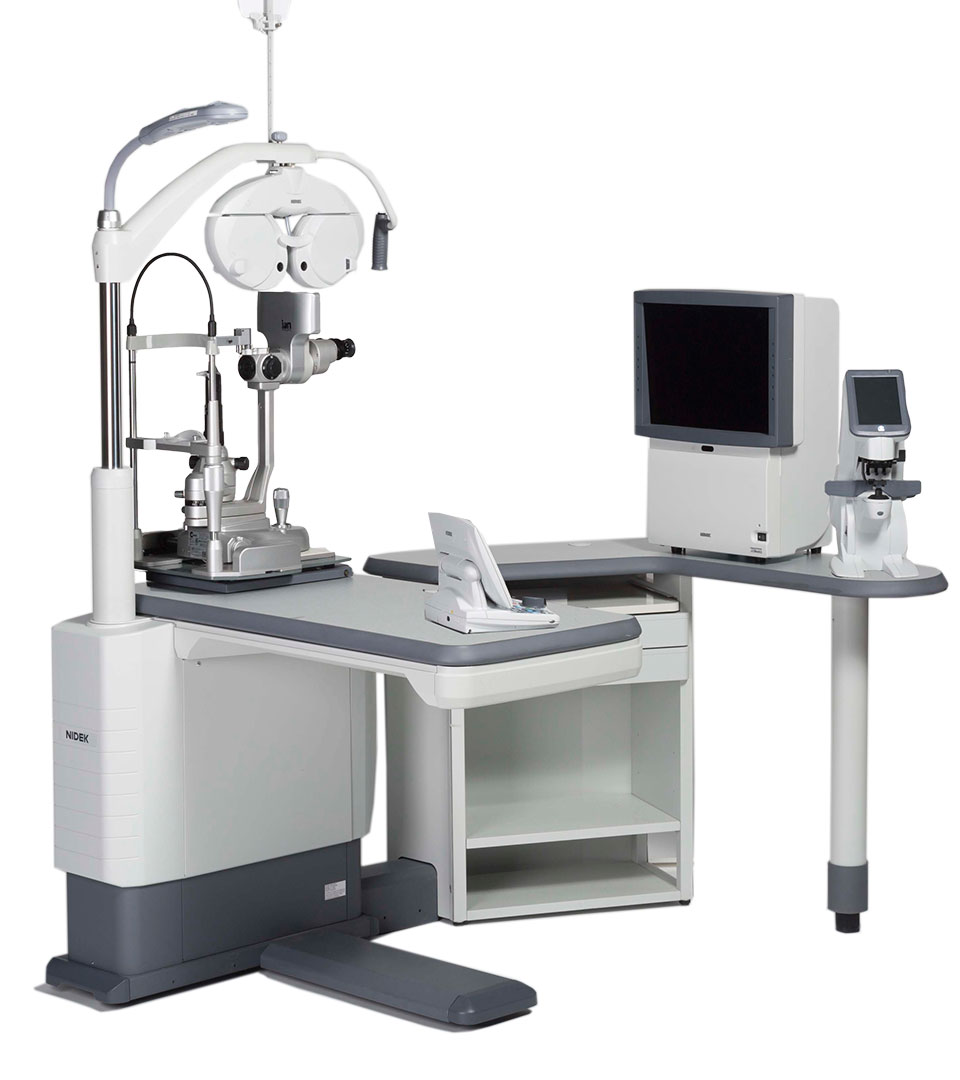

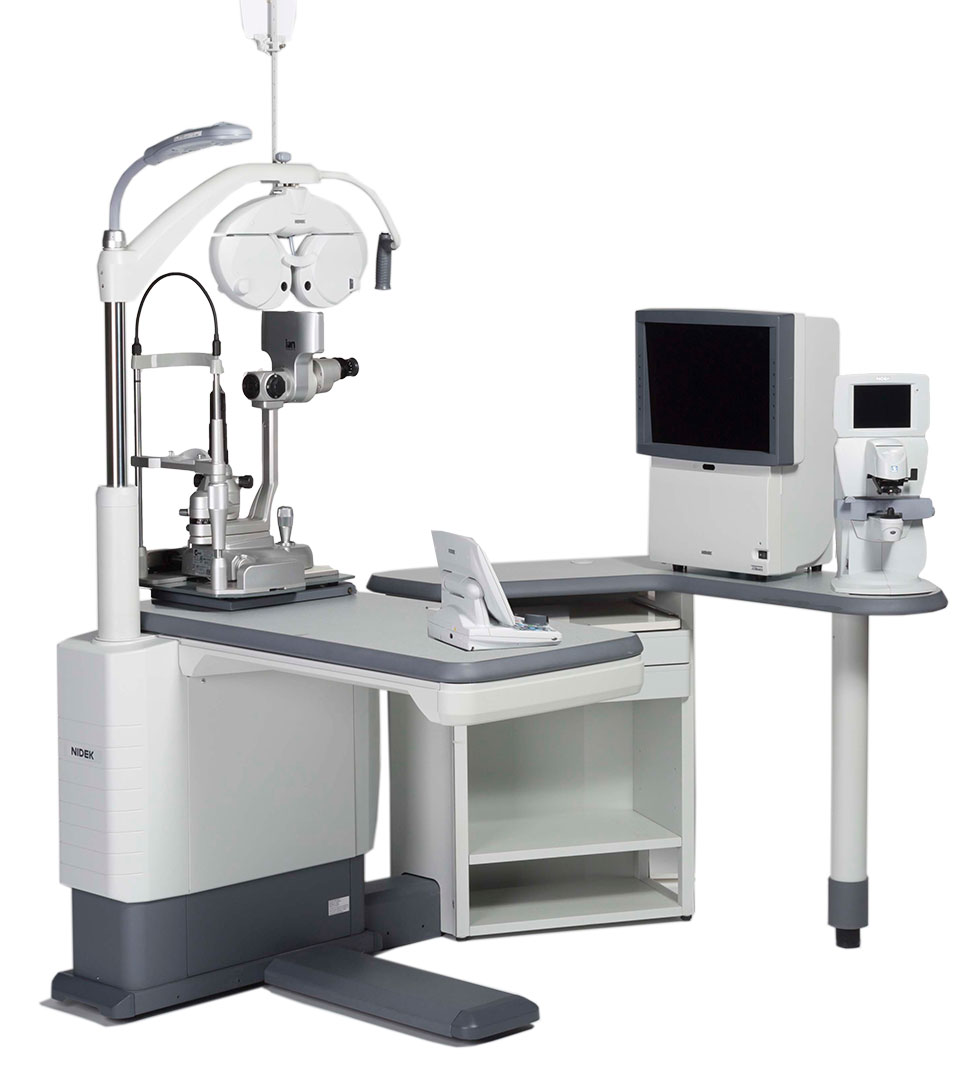

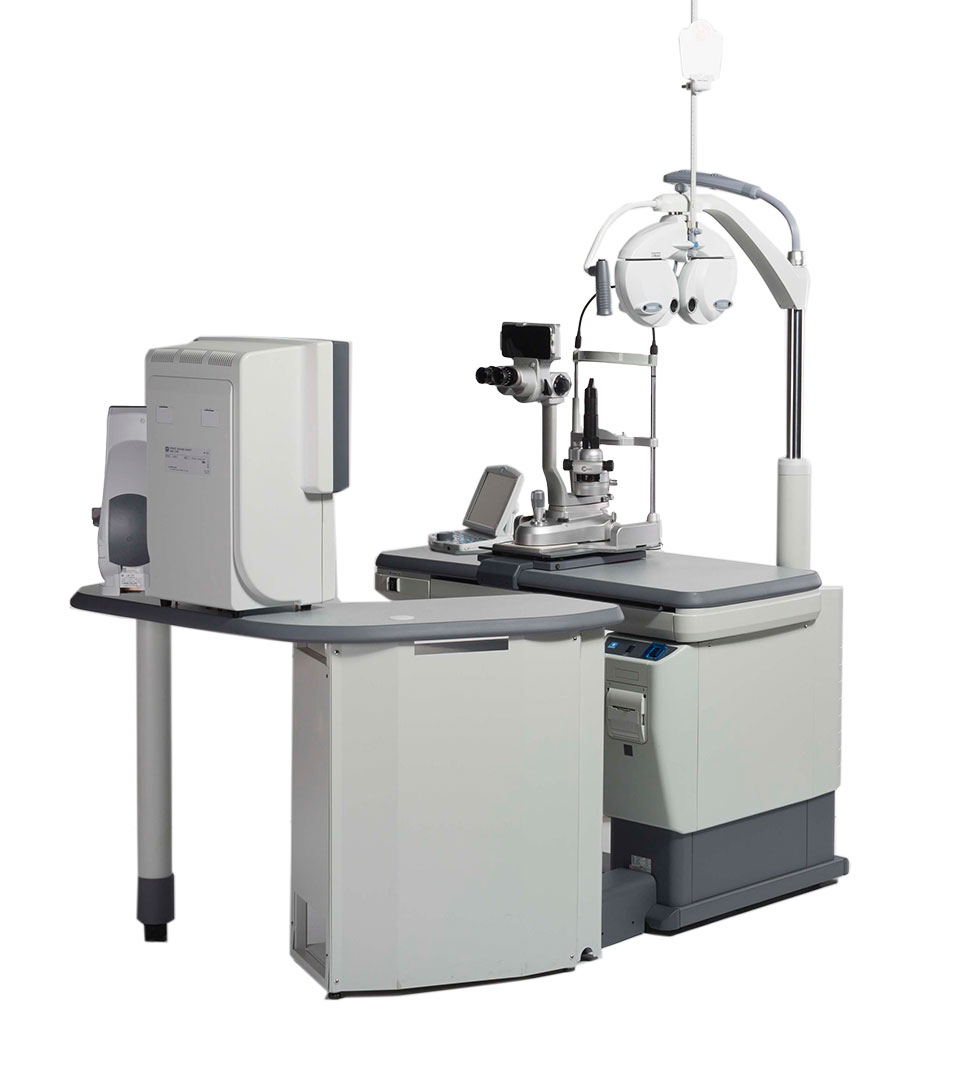

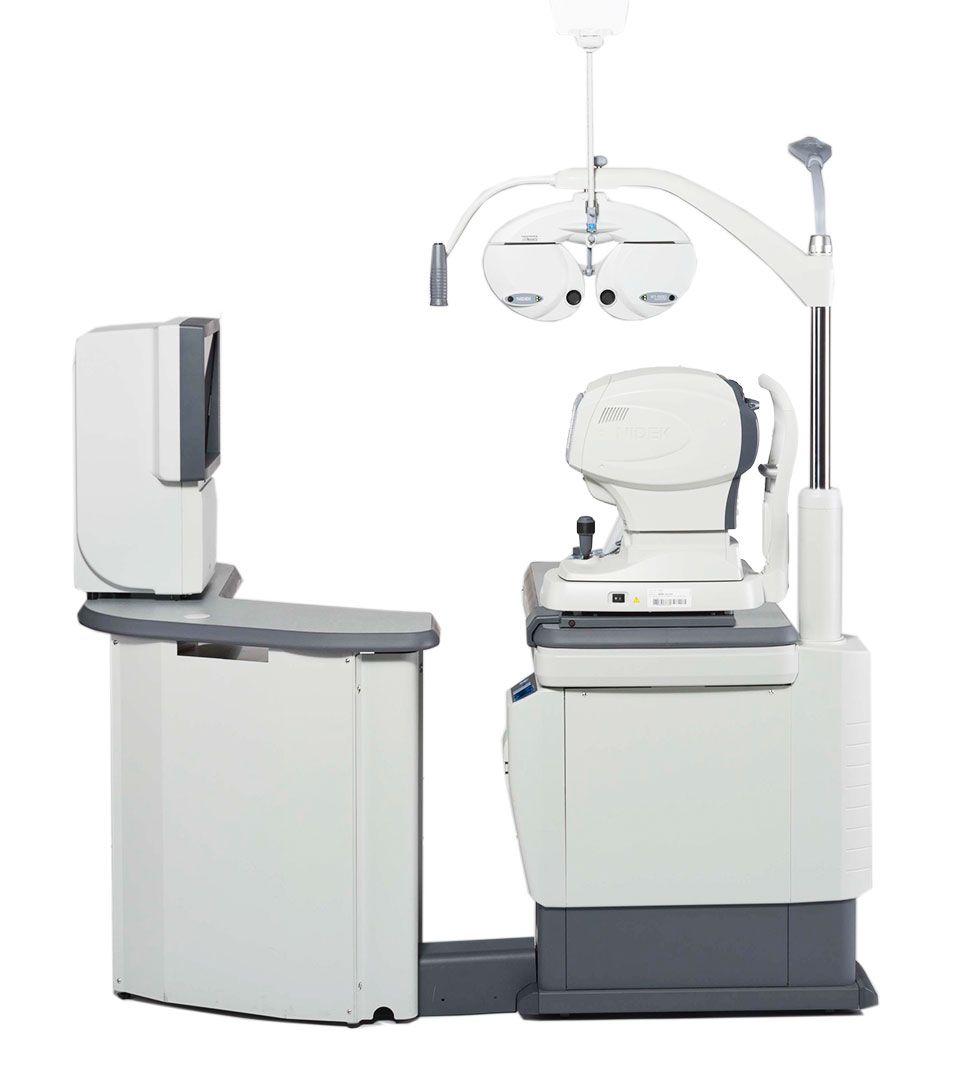

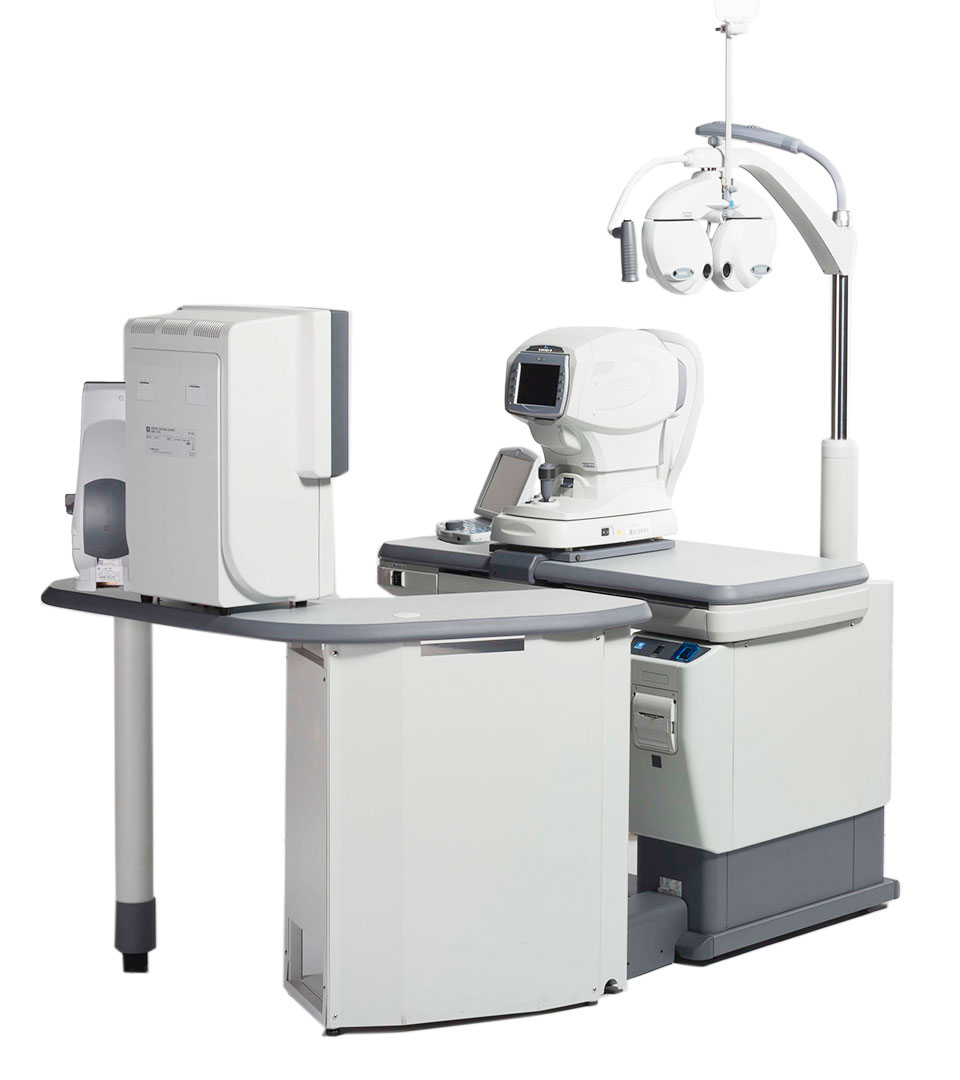

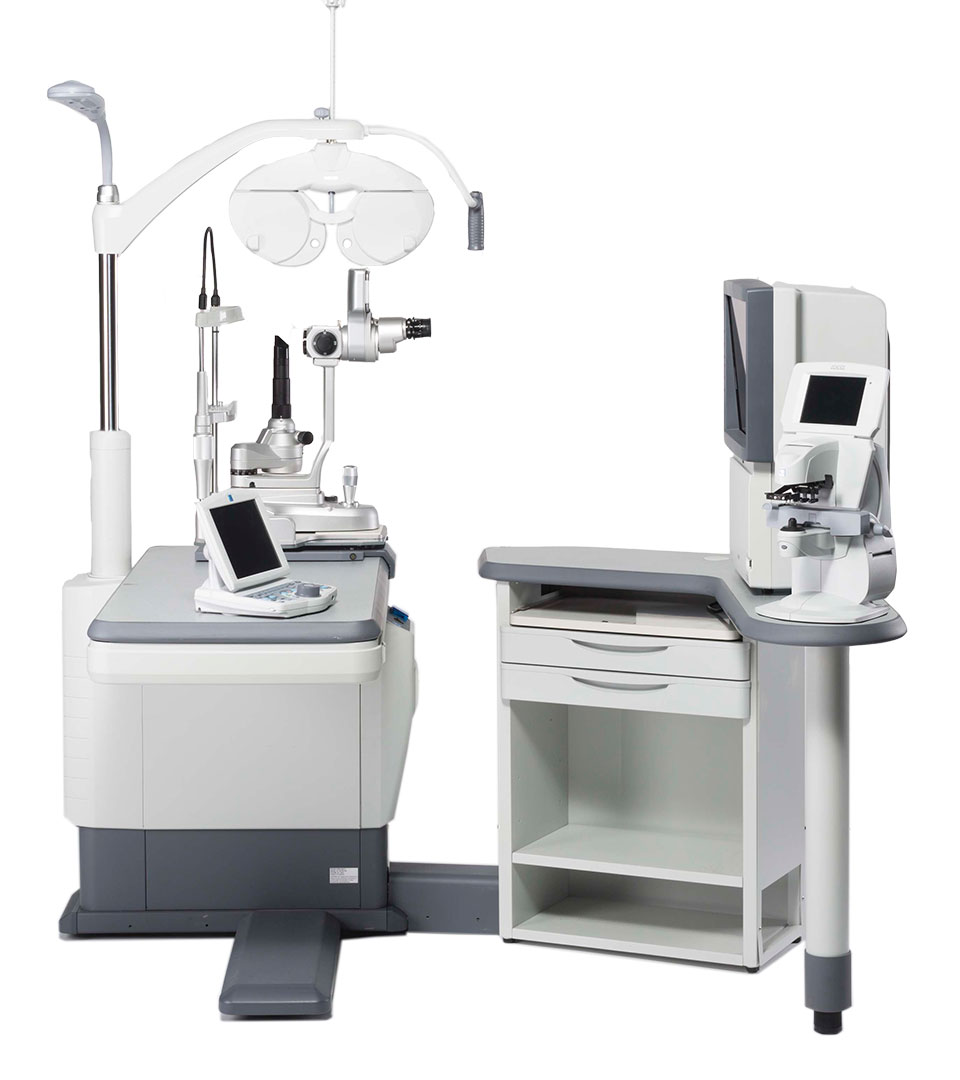

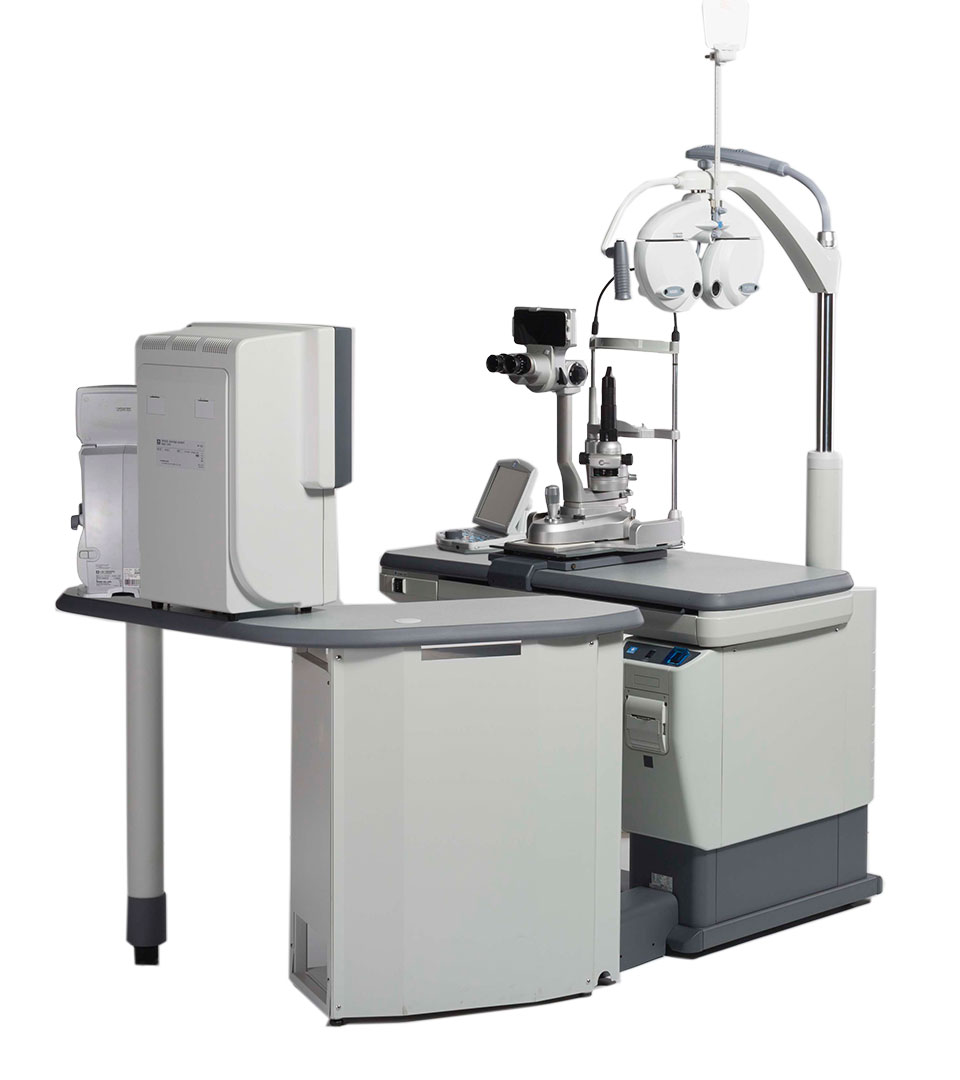

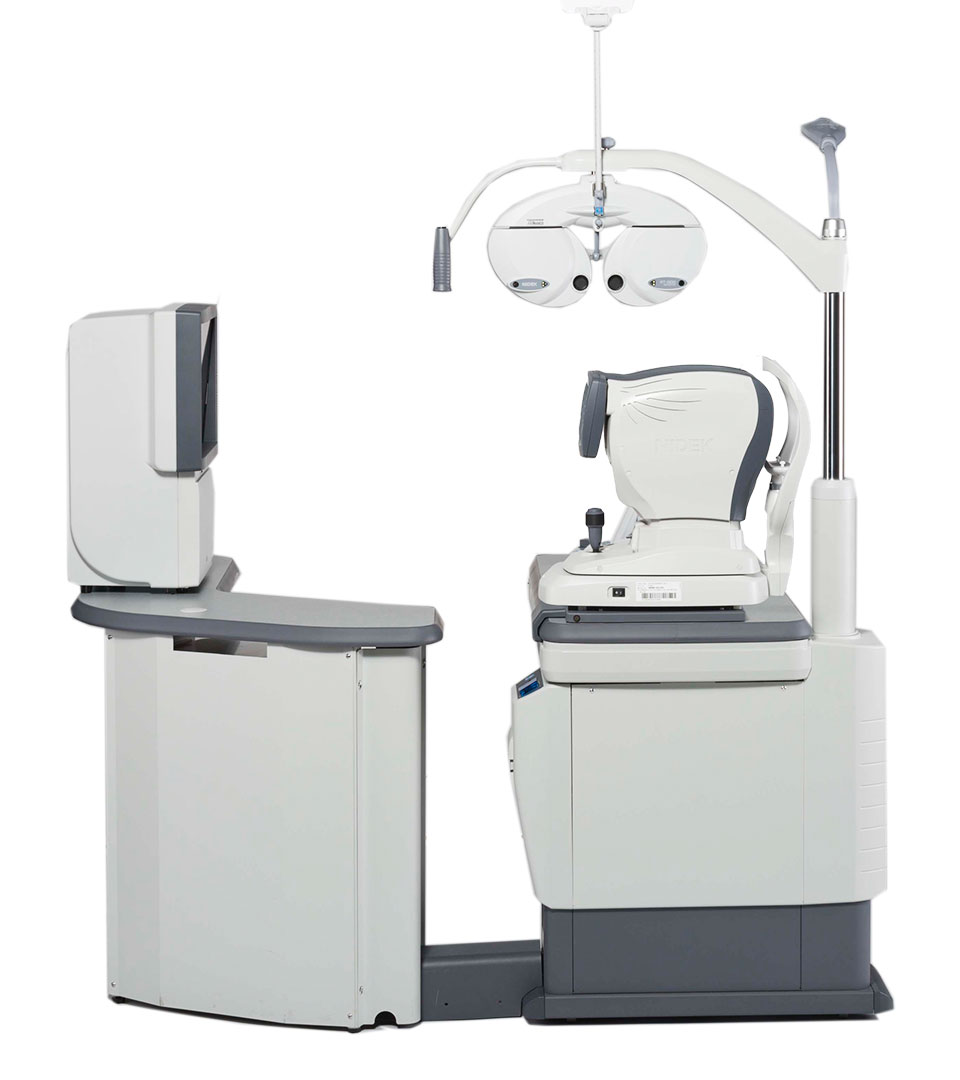

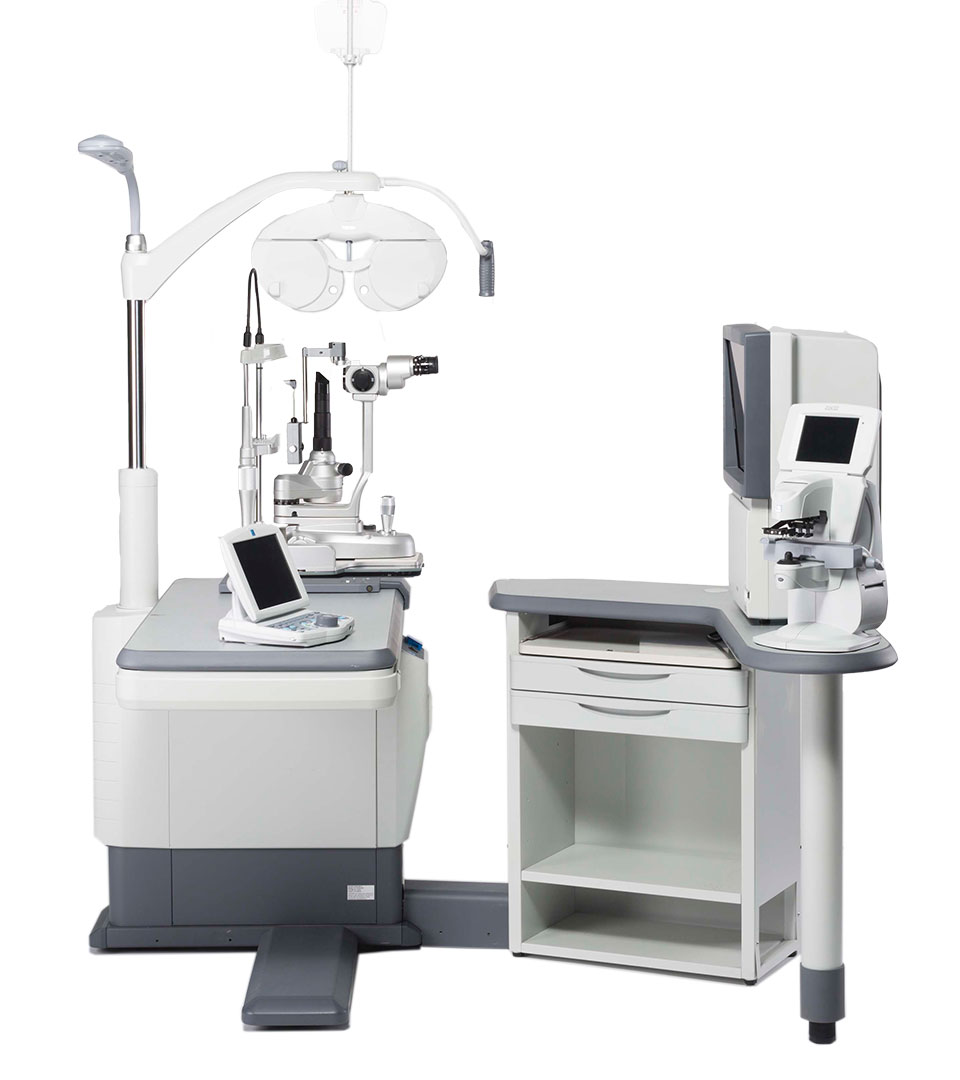

Choose from multiple ARK, NCT, OPD, and lensmeter configurations. The optional extra table allows for another device, such as a slit lamp, to be added to the unit.
Unparalleled and Interconnected Technology
Marco’s revolutionary TRS-6100 automated refraction technology is at the core of the EPIC-6100. By integrating digital refraction with NCT, ARK, lensmeter, and OPD, Marco has created the ultimate refraction workstation, connecting all data and transferring it easily to your EMR/EHR.
![Marco EPIC-6100 Connectivity](https://marco.com/wp-content/uploads/2019/08/2024_Marco-EMR-Graphic.png)
EPIC-6100 Refraction Workstation Specifications
Measurement Range
Spherical Power | -29.00 to +26.75 D (0.12, 0.25, 0.5, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.25, 2.50, 2.75, 3.00 D increments) |
---|---|
Cylindrical Power | 0.00 to ±8.75 D (0.25/1.00/2.00/3.00 D increments) |
Cylinder Axis | 0 to 180° (1, 5, 15° increments) |
Pupillary Distance | Distance PD: 48 to 80 mm Near PD (35 cm): 50 to 74 mm Full convergence Distance PD: 54 to 80 mm |
Prism | 0.00 to 20.00Δ (0.1/0.5/2Δ increments) |
Refractor Head
Auxiliary lenses | Cross cylinder: ±0.25D, ±0.50D, ±0.25 D auto cross Occluder: Available Pinhole: 2.0 mm in diameter Color filter: Right red, Left green Polarizing filter: Right 135° / Left 45°, Right 45° / Left 135° Fixed cross cylinder: ±0.50 D (fixed with the Axis set at 90º) Spherical lens for retinoscope: 0D, +1.5D, +2.0 D (selectable by setting) Maddox rod (red): Right horizontal, Left vertical Dispersion prism (fixed): Right 6ΔBU, Left 10ΔBI Dispersion prism for binocular balance: Right 3-10ΔBD, Left 3-10ΔBU Dispersion prism for horizontal phoria: Right 3-10ΔBU, Left 3-10ΔBD Dispersion prism for vertical phoria: Right 5-15ΔBI, Left 5-15ΔBI Binocular open fogging: 0.00 to +9.00 D |
---|---|
Near Gaze Distance | 350 to 700 mm (can be changed in 50 mm increments) |
Field of Vision | 40° (VD = 12mm) 39° (VD = 13.75mm) |
Pupillary Distance | Distance PD: 48 to 80 mm Near PD (35 cm): 50 to 74 mm Full convergence Distance PD: 54 to 80 mm |
Forehead Rest Adjustment | 25±2 mm |
Vertex Distance Scale | 12, 13.75, 16, 18, 20 mm |
Horizontal Level Adjustment | ±2.5° |
Control Box
Touch Screen | 10.4-inch color LCD |
---|
Dimensions & Mass
Refractor Head | 16.06 x 4.21 x 10.91” / 7.1 lbs |
---|---|
Control Box | 10.23 x 9.06 x 8.15” / 4.6 lbs |
Relay Box | 7.44 x 8.7 x 2.87 / 3.1 lbs |
Printer | 3.98 x 3.39 x 4.76 / 1.3 bs |
Epic-6100 Table
Main Table | Dimensions – 39” (W) x 20” (D) x 27” to 34” (H) Drawer Space – 28” (W) x 9.5” (D) x 2” (H) inside space Vertical Movement – Motorized |
---|---|
Refractor Head Lift Arm Vertical Movement Range |
25” to 37” from the top of the table |
Near Point Lamp Light Source |
White LED |
Full Dimensions and Weight | 39” (W) x 62” (D) x 52” to 71” (H), 264.5 lbs |
Power Supply | Voltage – 100 to 120 V AC Frequency – 50/60 Hz Power Consumption – 600 VA at maximum (including power consumption of connected devices) |
Footprint
EPIC WORKSTATION SUCCESS STORIES
The Marco EPIC-6100 combines all components of the refraction process into a compact, 5’x6’ workstation for optimal efficiency.
