ARK-1s Autorefractor & Keratometer

The ARK-1s is a multimodality device that includes autorefraction/keratometry/glare testing combinations. This automated instrument measures with objective accuracy and features accommodation testing and retro-illumination.

ARK-1s Autorefractor & Keratometer

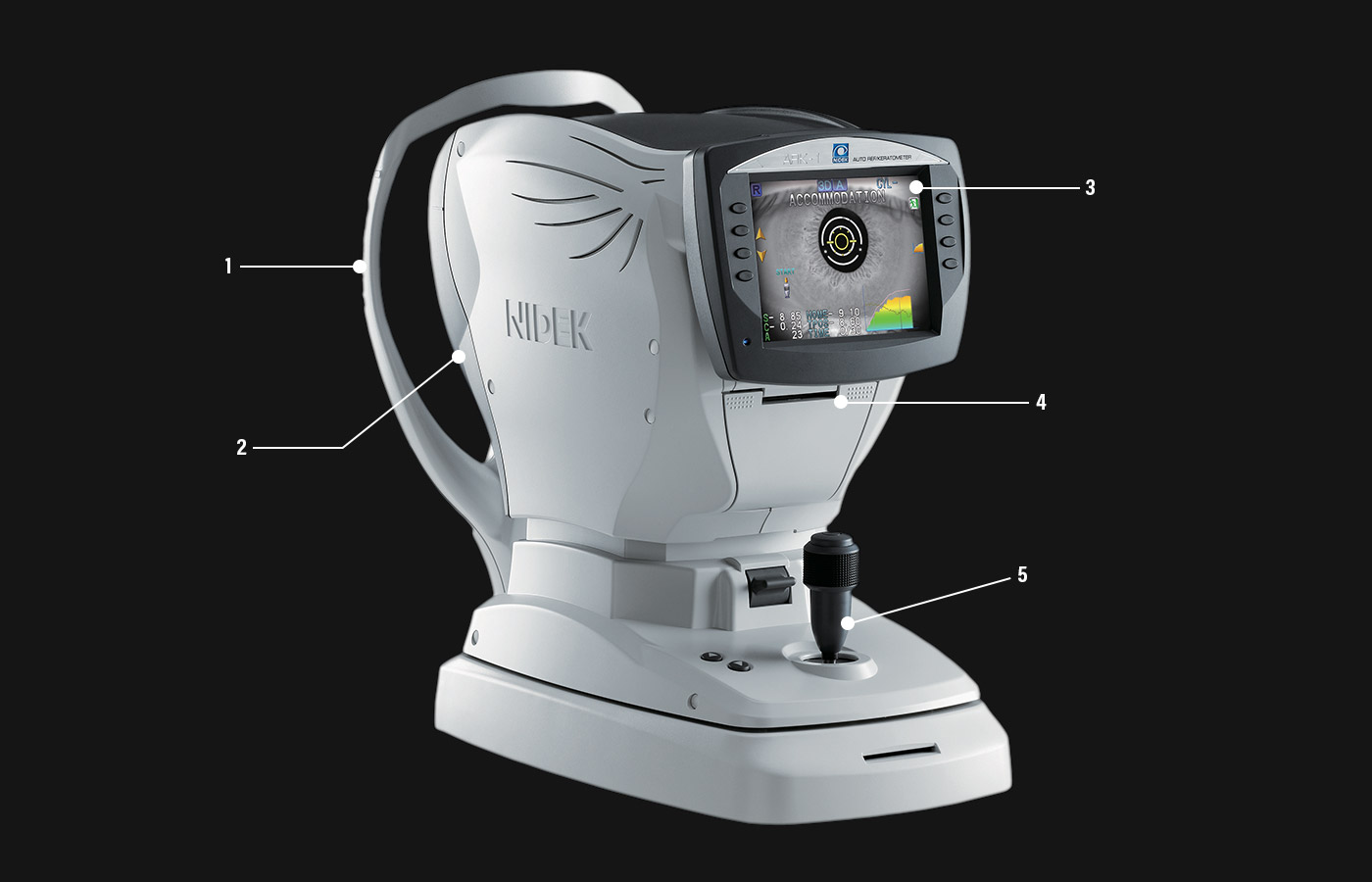

The ARK-1s is a multimodality device that includes autorefraction/keratometry/glare testing combinations. This automated instrument measures with objective accuracy and features accommodation testing and retro-illumination. The accommodation helps to detect early presbyopia, latent hyperopia and children with reading difficulty. The retro-illumination benefits patients in viewing and understanding their cataracts. Super Luminescent Diode (SLD) makes it possible to accurately measure patients with cataracts, corneal opacities, IOLs, and post LASIK procedures. It also utilizes a multiple pupil zone imaging method combined with rotary prism technology, and auto alignment Eye Tracking System on the X-Y-Z axes ensuring consistent, accurate, reliable and repeatable data.

  • SLD technology
  • Double ring technology
  • Confidence index indicator
  • Automatic pupil (2mm min.) and cornea size
  • Sphere measurement range -30D to +25D
  • Cyl 0.00D to ±12D
  • Auto X, Y, Z eye tracking
  • Glare Testing
  • Low Contrast Testing
  • Visual acuity chart –unaided/aided/glasses/near
  • Subjective sphere refinement
  • Accommodation
  • Retro-illumination
  • Tilt, LCD Screen

Glare Testing

Simulates real life glare situations to evaluate your patients media opacities including cataracts.

Super Luminescent Diode

It uses the high power and brightness of laser diodes providing a sharper image compared to LED. This measures patients, quickly and accurately, with cataracts, corneal opacities, IOL’s, and post LASIK

Tilt LCD Screen

Tiltable 6.5″ high quality full color LCD screen

High Speed Printer

Measurement values are printed out using a high-speed printer. Contact lens data can be included, as can eyeprint illustrations to aid in explaining myopia, hyperopia, or astigmatism to the patient.

User Friendly Features

The ARK-1s delivers the best combination of automated technology today for rapid testing, controlled for accommodation and a precise way to measure small and large pupils especially on eyes with media opacities

  • Glare Testing

    Simulates real life glare situations to evaluate your patients media opacities including cataracts.

  • Super Luminescent Diode

    It uses the high power and brightness of laser diodes providing a sharper image compared to LED. This measures patients, quickly and accurately, with cataracts, corneal opacities, IOL’s, and post LASIK

  • Tilt LCD Screen

    Tiltable 6.5″ high quality full color LCD screen

  • High Speed Printer

    Measurement values are printed out using a high-speed printer. Contact lens data can be included, as can eyeprint illustrations to aid in explaining myopia, hyperopia, or astigmatism to the patient.

  • User Friendly Features

    The ARK-1s delivers the best combination of automated technology today for rapid testing, controlled for accommodation and a precise way to measure small and large pupils especially on eyes with media opacities

    The ARK-1s delivers the best combination of automated technology today for rapid testing, controlled for accommodation and a precise way to measure small and large pupils especially on eyes with media opacities

    Super Luminescent Diode (SLD)

    Super Luminescent Diode is an edge-emitting semiconductor light source based on super luminescence. It uses the high power and brightness of laser diodes providing a sharper image compared to LED. This measures patients, quickly and accurately, with cataracts, corneal opacities, IOL’s, and post LASIK.

    Marco Ion Slit Lamp Imaging System

    Marco Ion Anterior Segment Imaging For Slit Lamps

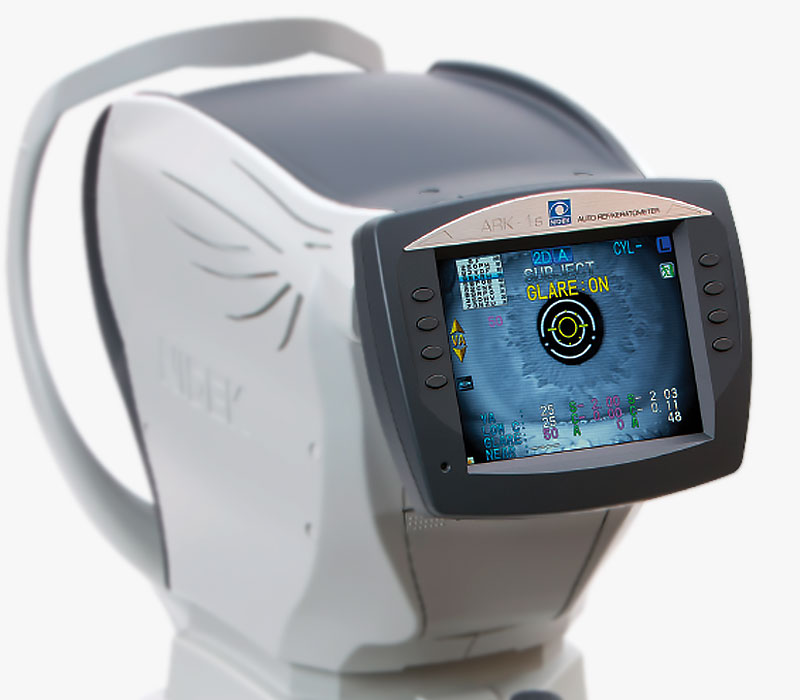

    Glare Testing

    The ARK-Series offers a suite of testing chat allows you to drive higher levels of accuracy, efficiency, and enhanced patient flow. The glare testing capability takes questionable accuracy out of the equation and is less cumbersome for the patient. Simulates real life glare situations to evaluate your patients media opacities including cataracts.

    The EyeTracking System

    The EyeTracking System provides X, Y, Z axes tracking for superior alignment and focusing. The ARK-1s automatically initiates measurement at the optimal alignment.

    Marco ARK-1S Autorefractor & Keratometer Eye Tracking System

    Marco Ion Anterior Segment Imaging For Slit Lamps

    Acuity Testing

    A visual accuity chart give the Practitioner the ability to subjectively refine sphere, compare LM and AR results. It also allows for the measurement of uncorrected vision distance, uncorrected near vision, distance vision corrected with AR, and near vision corrected with AR.

    Dual Zone

    Exclusive dual zone refractive measurement utilizing double-ring technology to measure two pupil zones supplies information based on pupil size and provides more robust objective data as a starting point for subjective refractions.

    Marco ARK-1S Autorefractor & Keratometer Double-Ring Technology

    Marco ARK-1s Autorefractor Confidence Index Indicator

    Confidence Index Indicator

    The confidence index indicator for each measurement helps to further clarify the reliability of the data obtained and automatic pupil and cornea size is measured. The confidence index number can range from 3 to 9. This gives the operator an indication of the clarity and quality of the ocular media. A value near 9 means the data is very repeatable and consistent. Values of 6 or below indicate media opacity or highly irregular optics.

    Accomodation

    Accomodation testing graphs the accommodation on patients especially with pre-presbyopia symptoms, latent hyperopia and children that have near focusing difficulties.

    Marco ARK-1S Autorefractor & Keratometer Accomodation

    Marco ARK-1s Autorefractor Retro Illumination

    Retro Illumination

    The ARK-1S Autrefractor/Keratometer features retro-illumination which illustrates media opacity in both the cornea and lens.

    ARK-1s Autorefractor & Keratometer Specs

    Technical Details

    Objective Spherical Refractive Error -30.00 to +25.00 D (VD = 12 mm) (0.01/0.12/0.25 D increments)
    Cylindrical Refractive Error 0 to ±12.00 D (0.01/0.12/0.25 D increments)
    Cylinder Axis 0 to 180° (1°/5° increments)
    Minimum Measurable Pupil Diameter ø2 mm
    Subjective Visual Acuity Measurements <0.1 / 0.1 / 0.25 / 0.32 / 0.4 / 0.5 / 0.63 / 0.8 / 1.0 / 1.25 <20/200 / 20/200 / 20/80 / 20/60 / 20/50 / 20/40 / 20/30 / 20/25 / 20/20 / 20/16
    Spherical Refractive Error -20.00 to +20.00 D (VD = 12 mm) (0.25 D increments)
    Cylindrical Refractive Error 0 to ±8.00 D (Max.) (0.25 D increments)
    Cylinder Axis 0 to 180° (1°/5° increments)
    Near Addition Power 0 to +9.75 D (0.25 D increments)
    Corneal Curvature Radius 5.00 to 13.00 mm (0.01 mm increments)
    Corneal Refractive Power 25.96 to 67.50 D (n = 1.3375) (0.01/0.12/0.25 D increments)
    Corneal Cylindrical Power 0 to ±12.00 D (0.01/0.12/0.25 D increments)
    Corneal Cylinder Axis 0 to 180° (1°/5° increments)
    Pupillary Distance Measurement 30 to 85 mm (1 mm increments)
    Corneal Size Measurement 10.0 to 14.0 mm (0.1 mm increments)Fixation TargetN/A
    Pupil Size Measurement 1.0 to 10.0 mm (0.1 mm increments)
    Accomodation Measurement 0 to 10.00 D (0.01/0.12/0.25 D increments)
    Observation/Display Method 6.5-inch color LCD
    Printer Thermal line printer with auto cutter
    Interface Connectors RS-232C: Two ports USB: One port LAN: One port

    Power

    Power Supply AC 100 to 240 V ±10% 50/60 Hz
    Power Consumption 100 VA

    Dimensions

    Measurements 260 (W) mm
    495 (D) mm
    457 (H) mm
    Mass 20 kg

    ARK SUCCESS STORIES

    The ARK-1s is the only autorefractor/keratometer with glare testing. Now you can quickly assess and document vision loss due to glare in your patients.
