OPD-Scan III Wavefront Aberrometer

The OPD-Scan III is an autorefractor, keratometer, pupillometer (up to 9.5mm), corneal topographer, and integrated wavefront aberrometer. The OPD-Scan III completes 20 diagnostic metrics in less than 10 seconds per eye

OPD-Scan III Wavefront Aberrometer

The OPD-Scan III is an autorefractor, keratometer, pupillometer (up to 9.5mm), corneal topographer, and integrated wavefront aberrometer. The OPD-Scan III completes 20 diagnostic metrics in less than 10 seconds per eye (including angle kappa, HOAs, average pupil power, RMS value, and point spread function). Easy alignment and automatic capture of wavefront aberrometry data ensures accurate readings. Wavefront aberrometry data is gathered from available zones up to a 9.5mm area, adding the capability to provide for calculation of mesopic refractions. Blue light, 33 ring, placido disc topography is gathered in one second. Mapping methods include OPD, visual acuity corneal topography/topographer, and more.

  • Wavefront aberrometry with 2,520 light vector data points
  • Corneal topographer/topography with 11,880 data point mapping

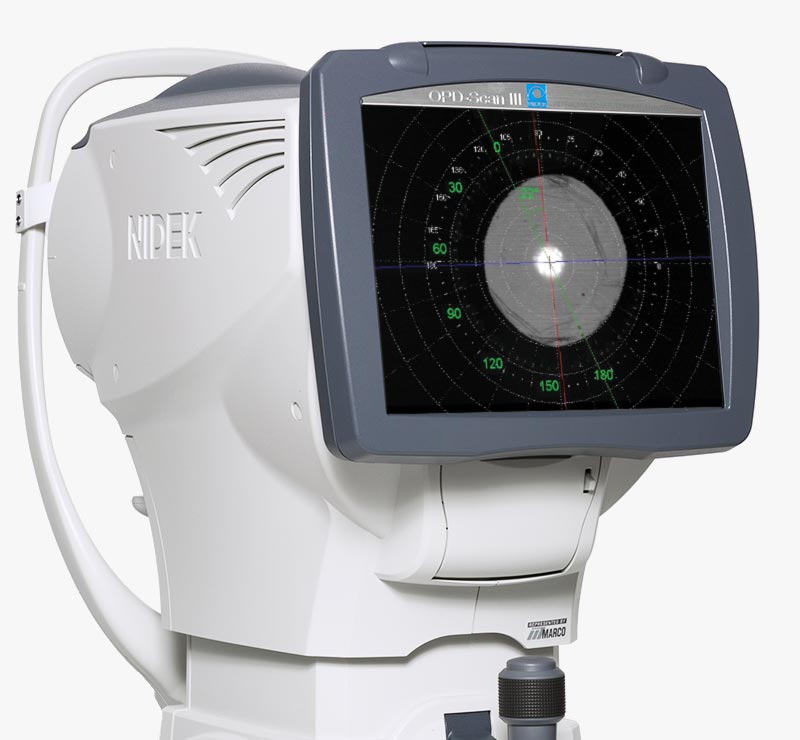

  • Retro-illumination
  • Day/Night Rx
  • Auto X, Y, Z eye tracking
  • Discerns AR vs. WF patients and their starting refraction point
  • Sphere measurement -20D to +22D. Cyl 0.00D to ±12D
  • Large, tilt LCD screen for superior viewing angle and operational position options

Ergonomic Design

A modern design provides patient comfort while easy alignment and automatic capture of data ensures accurate readings.

Wavefront Aberrometry

Wavefront aberrometry with 2,520 light vector data points. Wavefront aberrometry data is gathered from available zones up to a 9.5mm area, adding the capability to provide for calculation of mesopic refractions.

Motorized Chinrest

The OPD-Scan III completes 20 diagnostic metrics in less than 10 seconds per eye (including angle kappa, HOAs, average pupil power, RMS value, and point spread function

Oversized LCD Screen

Large, tilt LCD screen for superior viewing angle and operational position options

Corneal Topography

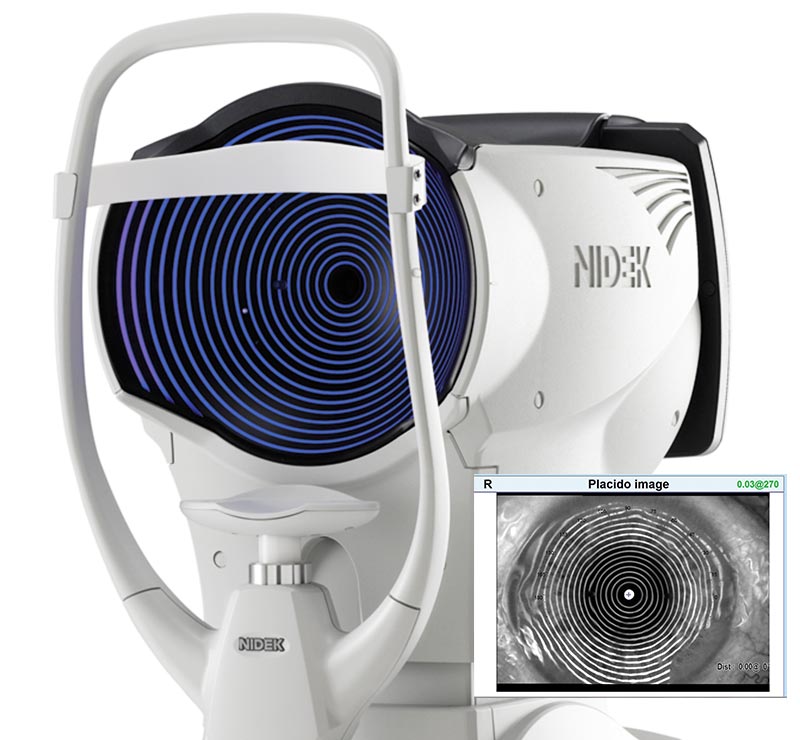

Corneal topographer/topography with 11,880 data point mapping. Blue light, 33 ring, placido disc topography is gathered in one second.

  • Ergonomic Design

    A modern design provides patient comfort while easy alignment and automatic capture of data ensures accurate readings.

  • Wavefront Aberrometry

    Wavefront aberrometry with 2,520 light vector data points. Wavefront aberrometry data is gathered from available zones up to a 9.5mm area, adding the capability to provide for calculation of mesopic refractions.

  • Motorized Chinrest

    The OPD-Scan III completes 20 diagnostic metrics in less than 10 seconds per eye (including angle kappa, HOAs, average pupil power, RMS value, and point spread function

  • Oversized LCD Screen

    Large, tilt LCD screen for superior viewing angle and operational position options

  • Corneal Topography

    Corneal topographer/topography with 11,880 data point mapping. Blue light, 33 ring, placido disc topography is gathered in one second.

    The new OPD-Scan III is the latest diagnostic/refractive instrument that serves the practice as an autorefractor, keratometer, pupillometer, corneal topographer and wavefront aberrometer

    Accurate Diagnostics

    Over 20 diagnostic measurements are acquired in 10 seconds. Easy alignment and automatic capture of data ensures accurate readings. Wavefront data is gathered from available zones up to a 9.5mm area, adding the capability to provide for calculation of mesopic refractions. Blue light, 33 ring, placido disc topography is gathered in one second.

    Marco OPD-Scan III Accurate Diagnostics
    Marco OPD-Scan 3 Wavefront Aberrometer Refraction System

    Data View Options

    Axial, gradient, instantaneous, numeric K display, numeric power display, PSF (point spread function), zernike graph (including corneal), contact lens summary, VA-ETDRS simulations, internal OPD, eye image, comparison maps, and difference maps.

    Unique Features

    Cataract and refractive surgeries have now been taken to another dimension. Detailed patient summaries are available in just a matter of seconds. Pre-op toric axis alignment can be mapped to iris or other physical landmark positons. Retro illumination images can be used post-op to verify IOL axis alignment.

    Marco OPD-Scan III Wavefront Abberometer Features
    Marco OPD-Scan III Dysfunctional Lens Syndrome (DLS)

    Dysfunctional Lens Syndrome (DLS)

    The above map is a measurement of a prior myopic LASIK patient with Dysfunctional Lens Syndrome (DLS). The Point Spread Function (PSF) maps show that the cornea is contributing to the problem but the majority of the patient’s issue is lenticular change. The patient thought she needed another LASIK treatment, when in actuality, the lens changed. A refractive lens exchange is recommended.

    Day/Night Wavefront Refractions

    Pupillometry measurements are utilized to allow for the calculation of separate wavefront refractions at 4mm and 6mm pupil sizes (or mesopic if smaller than 6mm). This provides information on the stability of the refractive error as pupil size changes, and the individual starting points for separate day and night refractions, if indicated. Your patients can receive a state-of-the-art printout of their ‘before’ and ‘after correction’ chart or understand why they are not able to achieve 20/20. Welcome to the next generation of refractive eye care.

    Marco OPD-Scan III Wavefront Aberrometer Refractions
    Marco OPD-Scan 3 Wavefront Aberrometer

    Captured In 10 Seconds

    • Corneal SA for Aspheric IOL Selection
    • Lenticular – Residual Astigmatism
    • Angle Kappa/Angle Alpha
    • Pre/Post Toric IOL Measurements
    • Pathologies (Keratoconus, Pellucid)
    • Mesopic/Photopic Pupil Size
    • Retro Illumination Image
    • Zernike Graphs: Total, Cornea, Internal
    • Corneal Refractive Power Map
    • IOL Tilt Eye Image or Decentration

    Functional Highlights

    • 10 second eye measurement
    • Auto alignment
    • Auto tracking
    • Auto capture
    • Electronically adjustable chinrest
    • Touch screen keyboard
    • Verification after each measurement
    • Easily integrates with EPIC and TRS-5100
    • Automatically transmits into EMR/EHR system

    OPD-Scan III Wavefront Aberrometer Specs

    Technical Details

    Power Mapping
    Spherical Power Range -20.00 to +22.00 D
    Cylindrical Power 0.00 to ±12.00 D
    Axis 0 to 180°
    Measurement Area 2.0 to 9.5 mm (7 zone measurement)
    Data Points 2,520 points (7 x 360)
    Measuring time < 1.0 seconds
    Measurement Method Automated objective refraction (dynamic skiascopy)
    Mapping Methods OPD, Internal OPD, Wavefront maps, Zernike graph, PSF, MTF graph, Visual Acuity Corneal Topography
    Measurement Rings 33 vertical, 39 horizontal
    Measurement Area 0.5 to 11.0 mm (r = 7.9)
    Dioptric Range 33.75 to 67.5 D
    Axis Range 0 to 359˚
    Data Points More than 11,880
    Mapping Methods Axial, Instantaneous, “Refractive”, Elevation, Wavefront maps, Zernike graph, PSF, MTF graph, Visual Acuity General Information
    Working Distance 75 mm
    Auto Tracking X-Y-Z directions
    Observation Area 14 x 11 mm

    Specs

    Operating System OPDIII Windows 10
    Display 10.4-inch color LCD touch panel
    Printer Built-in thermal type line printer for data print External color printer (optional) for map print
    Power Supply 100 to 240 Vac 50 / 60 Hz
    Power Consumption 110 VAC

    Dimensions

    Measurements 286 (W) x 525 (D) x 530 (H) mm
    Mass 23kg
