Slit lamp imaging is redefined with our iON℠ imaging system by combining a new intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology.

iON Imaging System

Slit lamp imaging is redefined with our iON℠ imaging system by combining a new intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology. “iON”: intuitive, optimized, and networked – an imaging system for every exam room, to rapidly capture, integrate, and educate every diagnosis. Slit lamp not included. Ion compatible slit lamps include:



Marco: Ultra G2, G4, G5, G5-Zoom, M2, M4, M5, B2, B3
Topcon: SL-D2, SL-D301, SL-D4, SL-D7, SL-D701, SL-2ED, SL-7E, SL-2G, SL-8Z
Zeiss: 100/16, 20SL & 30SL
Woodlyn: HR3; HR5 or SL9803x
Elan: 3 & Elan 5 Slit Lamps
CSO: SL990 & 9900(LED); SL980 & 9800
Haag Streit: BQ 900
Burton: 2000, SL-3MH & SL-3MZ, SL-860
Keeler: KSL-H & KSL-Z
Ibex: 5-Step
Nidek: SL1800
S4Optik: SL-Z3, SL-Z5, SL-ZZ, SL-H3, SL-H5, SL-HZ, H5 Elite, MW-50
Huvitz: HS-5000; HS-5500; HS-7000; HS-7500 (adapter required)
Reichert: Xcel 200, 250, 255, 400 & 455 (requires adapter)

  • Simple but powerful proprietary Slit Lamp Imaging App designed by Ophthalmic Photographers
  • Touch, click or tap to capture high resolution video or still images
  • All controls at your fingertips in heads-up display
  • Speed of acquisition, integration to network and education for patients
  • Unique “intra-optics” beam-splitter/adapter/mount
  • Accommodates most “parallel style” slit lamps
  • Harnessing the power of Apple with its exclusive HDR, “Focus Pixel” technology & more
Category:

Innovative Design

Imagine combining all of the bulky components of the traditional photo slit lamp, into one sleek, attractive all-in-one device, all at your fingertips, never having to leave your slit lamp.

Intra-Optics Beam Splitter

New intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology.

iOS App

An App dedicated to Anterior Segment Imaging that includes: patient demographics, pre-set photography modes maximizing the various lighting techniques for video or still images, auto storage to the Cloud, local network for EMR or PACS integration

Compatibility

ion is compatible with over 25 different (new and old) slit lamp makes / models from many of the major ophthalmic manufacturers

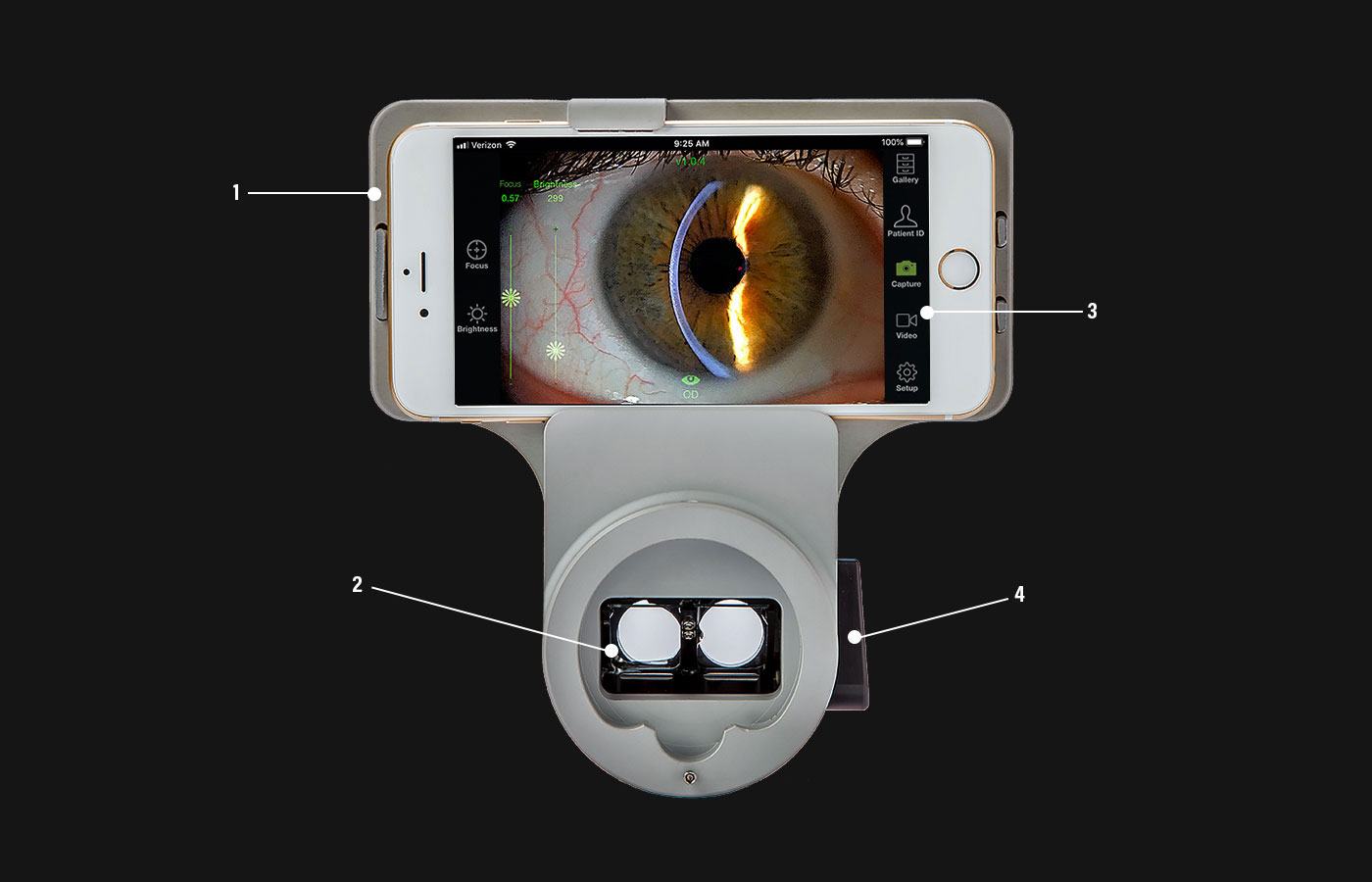

  • Innovative Design

    Imagine combining all of the bulky components of the traditional photo slit lamp, into one sleek, attractive all-in-one device, all at your fingertips, never having to leave your slit lamp.

  • Intra-Optics Beam Splitter

    New intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology.

  • iOS App

    An App dedicated to Anterior Segment Imaging that includes: patient demographics, pre-set photography modes maximizing the various lighting techniques for video or still images, auto storage to the Cloud, local network for EMR or PACS integration

  • Compatibility

    ion is compatible with over 25 different (new and old) slit lamp makes / models from many of the major ophthalmic manufacturers

    Slit lamp imaging is redefined with our Ion℠ imaging system by combining a new intra-optics beam splitter/camera adapter with the tremendous computing and imaging power of Apple technology.

    iON Imaging System

    Utilizing the world’s best known and most user friendly OS. Simple but powerful proprietary slit lamp imaging app designed by ophthalmic photographers. Easily capture high resolution video or still images. Diagnose, image, integrate & educate in seconds. Update software via the App Store. Simply start the App and you’re ready to capture.

    Marco Ion Slit Lamp Imaging System
    Marco Ion Anterior Segment Imaging For Slit Lamps

    Optimized Performance

    All controls at your fingertips in heads-up display. App specifically designed for anterior segment imaging with patient demographics. Speed of acquisition, integration to network and education for patients. Unique “intra-optics” beam-splitter/adapter/mount. Accommodates most “parallel style” slit lamps. Harnesses the power of Apple® with its exclusive HDR, “Focus Pixel” technology & more!

    Seamlessly Networked

    Imaging capability in every exam room. Wirelessly display your images on your exam room monitors. Images instantly available in NAVIS-EX or for uploading to your EHR or PACS. Archive, view, and share images immediately in the Cloud. Bluetooth foot control or joystick capture

    Marco Ion Imaging System Connectivity and Integrations
    Marco Ion Anterior Segment Imaging Slit Lamp Compatability

    Ion Compatible Slit Lamps

    Marco: Ultra G2, G4, G5, G5-Zoom, M2, M4, M5, B2, B3
    Topcon: SL-D2, SL-D301, SL-D4, SL-D7, SL-D701, SL-2ED, SL-7E, SL-2G, SL-8Z
    Zeiss: 100/16, 20SL & 30SL
    Woodlyn: HR3; HR5 or SL9803x
    Elan: 3 & Elan 5 Slit Lamps
    CSO: SL990 & 9900(LED); SL980 & 9800
    Haag Streit: BQ 900
    Burton: 2000, SL-3MH & SL-3MZ, SL-860
    Keeler: KSL-H & KSL-Z
    Ibex: 5-Step
    Nidek: SL1800
    S4Optik: SL-Z3, SL-Z5, SL-ZZ, SL-H3, SL-H5, SL-HZ, H5 Elite, MW-50
    Huvitz: HS-5000; HS-5500; HS-7000; HS-7500 (adapter required)
    Reichert: Xcel 200, 250, 255, 400 & 455 (requires adapter)

    iON IMAGING SYSTEM VIDEOS



    iON Imaging System Specs

    Hardware

    Type Intra-Optics Beam-Splitter/Adapter
    Beam-Splitter 2-Position Lever; Down=100% to oculars; Up=70% to Camera/30% to oculars
    Dimensions 7″ x 2.5″ x 6.5″
    Weight 3 lbs
    Image Capture Via Bluetooth activated Foot-Switch or Joystick Button (Marco Slit Lamps only)
    Camera 12MP camera; ƒ/1.6 aperture (iPhone 12)
    Display Super Retina XDR OLED 6.1″ display
    Camera Resolution 2532 x 1170 pixel resolution at 460 ppi
    Video ResolutionFPS 4K and 1080p HD video recording (30 fps or 60 fps)
    Contrast Ratio 2,000,000:1 contrast ratio
    Processor A14 Bionic chip

    Software

    Operating System Apple® iOS
    Export To Local Network; Cloud Storage & iOS/Photos
    Capture Modes Still image or HD Video
    Security HIPAA Compliant; Password Protected; AES Encryption
    Imaging Technology Apple®’s HDR, Focus Pixel, Optical Image Stabilization technology
    Networking Via Wi-Fi Connection
    Included In The Box ion Beam Splitter/Adapter, ion Imaging App, Bluetooth Control Unit, Power Adapter with 2-USB ports, 6′ USB Cable, Footswitch with 10′ Cable, 10′ Lightning iPhone Charging Cable, 10 Adhesive Cable Tie Mounts, 14 4″ Cable Ties, 2 1″ x 1″ Adhesive Velcro and 2 Vinyl Lens Covers

    iON IMAGING SUCCESS STORIES

    Imagine combining all of the bulky components (digital camera, adapter, computer, monitor, multiple cables, keyboard, mouse, etc.) of the traditional photo slit lamp, into one sleek, attractive all-in-one device, all at your fingertips, never having to leave your slit lamp. Introducing ‘ion Imaging’ from Marco.

    iON IN PUBLICATIONS

    iON Imaging System

    Slit Lamp Integrated
    iOS App
    1920×1080 Resolution
    Full HD Video Capture
    Apple®’s HDR & Focus Pixel
    Wi-Fi Connected
    App Store Updates
    Optical Image Stabilization
