Ultra M4 Slit Lamp

Like our M5 slit lamp model, Our Ultra M4 slit lamp uses parallel (galilean) type binocular stereomicroscope with background illumination, but has compact / horizontal light source configuration.

Ultra M4 Slit Lamp

Like our M5 slit lamp model, our Ultra M4 slit lamp uses parallel (galilean) type binocular stereomicroscope with background illumination, but has compact/horizontal light source configuration. The M4 conventional slit lamp also features blue, red-free, blue LED correction light filters and 5 position rotating drum and 16x wide-field, high-eyepoint eye pieces and includes 5 power magnifications (6.3x, 10x, 16x, 25x, 40x).

  • Single-element, high-luminance LED illumination
  • 0-14mm continuously adjustable aperture
  • Patented, built-in Background Illumination system for digital imaging
  • Completely integrated (cable free) low voltage electronic system
  • Expanded chin rest design for easier patient access
  • Cobalt blue, Red-free, Yellow, Blue LED correction filters
  • Self-contained headrest & baseplate assembly
Category:

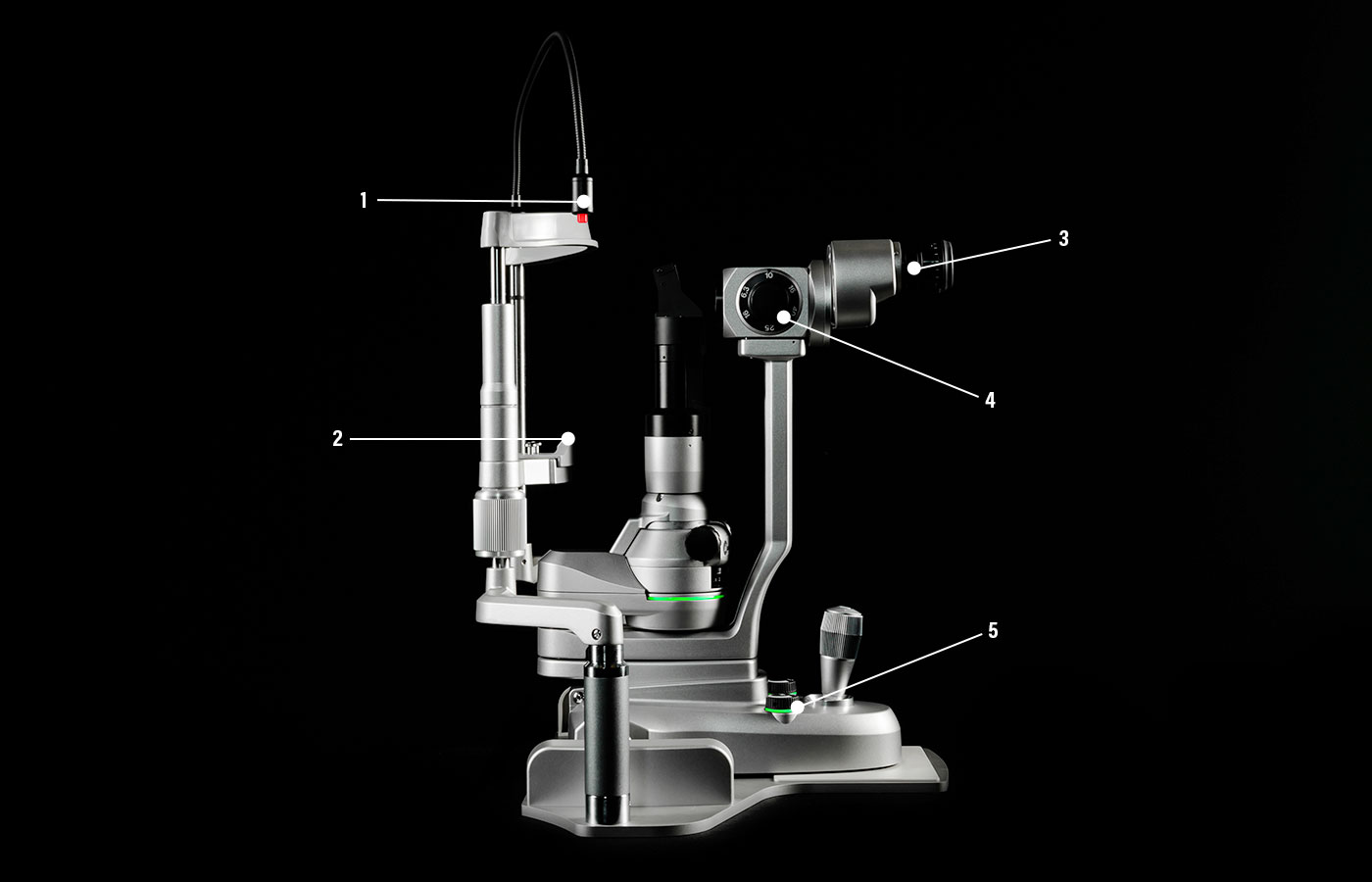

LED Fixation Target

Patient fixation target is a red LED on a continuously flexible shrouded cable.

Expanded Chinrest

A Large patient chinrest is standard equipment. The expanded chin rest design for easier patient access.

Parallel/Galilean Optics

Parallel (Galilean) Type Binocular Stereomicroscope

5 Power Magnification

The M5 slit lamp features Blue, Red-free, Blue LED Correction, and Yellow Light Filters and includes 5 Power Magnifications (6.3x, 10x, 16x, 25x, 40x).

Background Illumination

The intensity control of the background illumination is easily found and adjusted with a single, illuminated knob, conveniently placed adjacent to the joy stick.

  • LED Fixation Target

    Patient fixation target is a red LED on a continuously flexible shrouded cable.

  • Expanded Chinrest

    A Large patient chinrest is standard equipment. The expanded chin rest design for easier patient access.

  • Parallel/Galilean Optics

    Parallel (Galilean) Type Binocular Stereomicroscope

  • 5 Power Magnification

    The M5 slit lamp features Blue, Red-free, Blue LED Correction, and Yellow Light Filters and includes 5 Power Magnifications (6.3x, 10x, 16x, 25x, 40x).

  • Background Illumination

    The intensity control of the background illumination is easily found and adjusted with a single, illuminated knob, conveniently placed adjacent to the joy stick.

    20 Years ago, Marco changed the boundaries of conventional slit lamp design and performance with the original Ultra Series. Today, the Ultra M Series introduces a new era of diagnostic empowerment. Marco has again established the latest standard in slit lamp examinations.

    LED Illumination

    The new LED illumination, with a color temperature of 3500 K, allows greater visibility and clarity of anatomy and tissue structure, with brighter and sharper light. A single element, high-luminance LED provides a beautifully consistent and uniform light compared to multiple element LEDs.

    Marco Ultra M2 Slit Lamp LED Illumination

    Marco Ultra M2 Slit Lamp 3 Power Optics

    5 Power Optics

    The M4 uses parallel (Galilean) type binocular stereomicroscope with background illumination, but has compact/horizontal light source configuration. Featuring a 5 position rotating drum, 16x wide-field, high-eyepoint eye pieces, and includes 5 Power Magnifications (6.3x, 10x, 16x, 25x, 40x).

    Cable Free Design

    Ultra M Slit Lamps are neat and compact with no exposed wiring, giving them a noticeably sleek and stylish appearance. Contemporary and durable finishes have been selected both for lasting application and patient appeal.

    Marco Ultra M4 Slitlamp Cable Free Compact Design

    Marco Ultra M4 Slitlamp Self Contained Headrest and Base

    Self Contained Headrest

    A self-contained headrest & baseplate assembly with a comfortable expanded chin rest design for easier patient access.

    ULTRA M4 SLIT LAMP VIDEOS



    Ultra M4 Slit Lamp Specs

    Technical Details

    Type Binocular Stereomicroscope Parallel (Galilean)
    Light Source LED
    Light Source Configuration Compact/horizontal
    Background Illumination Yes
    Light Filters Blue, Red-free, Blue LED Correction
    Slit Width 0-14mm continuous variable
    Aperture Diaphragm Diameter (Ø) 14, 8, 5, 3, 0.3mm
    Total # Power Magnifications 5 (6.3x, 10x, 16x, 25x, 40x)
    Magnification Change 5 Position Rotating Drum
    Eye Pieces 16x wide-field, high-eyepoint
    Real Field of View (Ø) 35.9mm, 23.3mm, 14mm, 8.8mm, 5.5mm
    Interpupillary Adjustment 52-82mm
    Diopter Adjustment Range (+/-) 7 Diopters
    Horizontal Coarse Movement 105mm
    Horizontal Fine Movement 15mm
    Vertical Movement 30mm
    Fixation Light Source Red LED on Flexible Arm
    Large Patient Chin Rest Yes
    Chinrest Elevation 95mm

    Power

    Power Supply AC100V-240V (+/-10%)
    Power Consumption DC5V 2A

    Weight

    Mass (Approximate) 11.5Kg

    SLIT LAMP SUCCESS STORIES

    Experience the uncompromised quality, control, and reliability of the Ultra M Series embodied in the most contemporary and functionally empowering slit lamp design ever.

    ULTRA M4 IN PUBLICATIONS

    PRESS RELEASES

    Ultra M4 Slit Lamp

    LED Illumination
    5 Power Optics
    0-14mm Aperture
    Cable Free Electronics
    Portable Control Pad
    LED Correction Filters
    Self-Contained Headrest
