TS-610 Combined Digital Refractor and Chart System

The TS-610 is versatile with a compact 2’ x 2’ footprint that can easily be installed anywhere. The forehead rest range of 25±2 mm can accommodate more patients. Flexible measurements can be taken from either side for seated or standing patients.

TS-610 Combined Digital Refractor and Chart System

The TS-610 is versatile with a compact 2’ x 2’ footprint that can easily be installed anywhere. The forehead rest range of 25±2 mm can accommodate more patients. Flexible measurements can be taken from either side for seated or standing patients.

  • Combined digital Refractor and Chart System
  • Ambidextrous Controls and dial button with S/C/A mode key
  • Intuitive, high precision color LCD touch screen
  • Same charts for far and near vision measurementv
  • Contrast sensitivity test at 3 levels
  • Ergonomic design with quiet and smooth lens change
  • Flexible standing or seated measurement position
  • Built-in high-speed line printer
  • Versatile & compact footprint with simple installation

Forehead Rest

The forehead rest range of 25±2 mm can accommodate more patients.

Reduces Accommodation

Programmed monocular fogging reduces accommodation and allows more realistic refractions with both eyes open.

Flexible Measurements

Flexible measurements from either side for seated or standing patients

10.4" Touchscreen

Large 10.4” color LCD touch screen

Ambidextrous Controls

Flexible measurements can be taken from either side for seated or standing patients.

  • Forehead Rest

    The forehead rest range of 25±2 mm can accommodate more patients.

  • Reduces Accommodation

    Programmed monocular fogging reduces accommodation and allows more realistic refractions with both eyes open.

  • Flexible Measurements

    Flexible measurements from either side for seated or standing patients

  • 10.4" Touchscreen

    Large 10.4” color LCD touch screen

  • Ambidextrous Controls

    Flexible measurements can be taken from either side for seated or standing patients.

    The TS-610 is versatile with a compact 2’ x 2’ footprint that can easily be installed anywhere

    Operation-Oriented Controls

    The TS-610 has an intuitive, ergonomic keyboard that allows simple, ambidextrous, one-handed operation. The screen is a large 10.4″ color LCD touch display. OPD Wavefront maps can be displayed for more effective diagnostics and patient education.

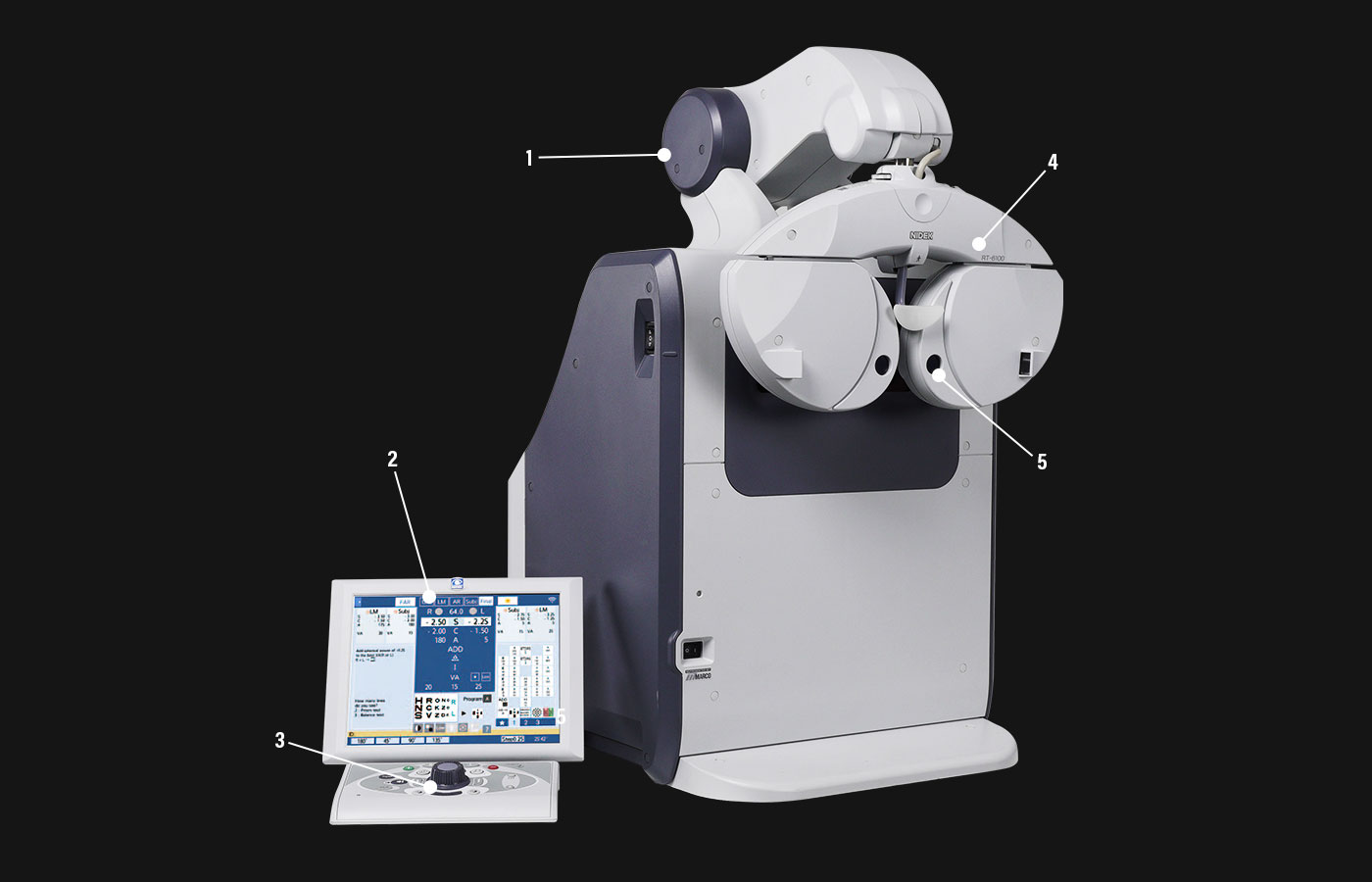

    Marco TS-610 Tabletop Refraction Workstation Control Unit
    Marco TS-610 Tabletop Refraction Workstation Refractor

    Sophisticated Refractor

    The forehead rest range of 25±2 mm can accommodate more patients. Programmed monocular fogging reduces accommodation and allows more realistic refractions with both eyes open.

    Reliable Chart Unit

    All charts needed for both near and far vision measurements are available. Your frequently used charts can be saved as favorites for easy access.

    Marco TS-610 Tabletop Refraction Workstation Reliable Chart Unit
    • Marco TS-610 Tabletop Refraction Workstation Symmetry
    • Marco TS-610 Tabletop Refraction Workstation Flexibility

    User Friendly Features

    Flexible measurements can be taken from either side for seated or standing patients.

    Scalable To Your Needs

    The TS-610 is versatile with a compact 2’ x 2’ footprint that can easily be installed anywhere.

    Marco TS-610 Tabletop Refraction Workstation Footprint Measurements

    Product Specs

    Chart

    Chart Type T, UK, M, P, PhM, C
    Refraction Distance Distance: 5 m, Near: 40 cm
    Mask Horizontal line, Vertical line, Single letter
    Filter Red / Green
    Binocular vision test Red-green, Prism

    Control Box

    Display 10.4-inch Color LCD
    Printer High Speed Line Printer

    Dimensions

    The Refractor Head Vertical Motion Unit Is At The Bottom 446 (W) x 520 (D) x 763 (H) mm
    17.6 (W) x 20.5 (D) x 30.0 (H) in
    The Refractor Head Vertical Motion Unit Is At The Top 446 (W) x 487 (D) x 907 (H) mm
    17.6 (W) x 19.2 (D) x 35.7 (H) in
    Mass 34.3 kg, 75.6 lbs

    Accessories

    Standard Accessories Forehead Rest, Face Shields, VD Check Adapter, Stylus Pen, Printer Paper, Dust Cover, Power Cord, Cover Plate, Cap, Screw, Hexagonal Wrench, Phillips Screwdriver, Communication Cable
    Optional Accessories Eye Care card, Wireless LAN module, Magnetic card reader, Barcode scanner, Memory box, LAN cable, Control console tray, Control console – printer adapter

    Refractor

    Measurable range Sphere: -29.00 to +26.75 D (0.12/0.25/0.50 to 3.00 D increments)
    -19.00 to +16.50 D (cross cylinder test, prism test)
    Cylinder: 0.00 to ±8.75 D (0.25/1.00/2.00/3.00 D increments)
    Axis: 0 to 180º (1º/5º/15º increments)
    PD: 48 to 80 mm, 54 to 80 mm (100% convergence possible PD)
    Prism: 0 to 20Δ (0.1 / 0.5 / 2Δ increments)
    Visual Field 40º (VD = 12 mm), 39º (VD = 13.75 mm)
    Forehead Rest Adjustment 25±5 mm
    Vertex Distance Marking 12, 13.75, 16, 18, 20 mm
    Level Adjustment ±2.5°
    Refractor Arm Electrically-Driven
    Up-&-Down Of Refractor Arm 190 mm

    Auxiliary Lens Visual Field

    Cross Cylinder Lens ±0.25, ±0.50, ±0.25 D auto cross
    Occluder Available
    Pinhole Plate ø2 mm
    Red / Green Filter Right Eye: Red, Left Eye: Green
    PD check lens Available
    Fixed Cross Cylinder Lens ±0.50 D (fixed with the Axis set at 90º)
    Spherical Lenses For Retinoscope 0/+1.5/+2.0 D (selectable by setting)
    Red Maddox Rod Right Eye: Horizontal, Left Eye: Vertical
    Dissociation Prism Right eye: 6ΔBU / Left eye: 10ΔBI
    Dissociation prism for binocular balance Right eye: 3 to 10ΔBD / Left eye: 3 to 10ΔBU
    Dissociation prism for horizontal phoria Right eye: 3 to 10ΔBU / Left eye: 3 to 10ΔBD
    Dissociation prism for vertical phoria Right eye: 5 to 15ΔBI / Left eye: 5 to 15ΔBI
    Fixed cross cylinder & dissociation prism for horizontal phoria Right eye: 3 to 10ΔBU / Left eye: 3 to 10ΔBD
    Binocular open fogging 0.00 to +9.00 D

    Power

    Power Supply AC 100 to 240 V, 50 / 60 Hz
    Power Consumption 200 VA

    Programmed monocular fogging reduces accommodation and allows more realistic refractions with both eyes open
