The Marco Ultra M Series of slit lamps expands the boundaries of traditional slit lamp design, function, and performance.

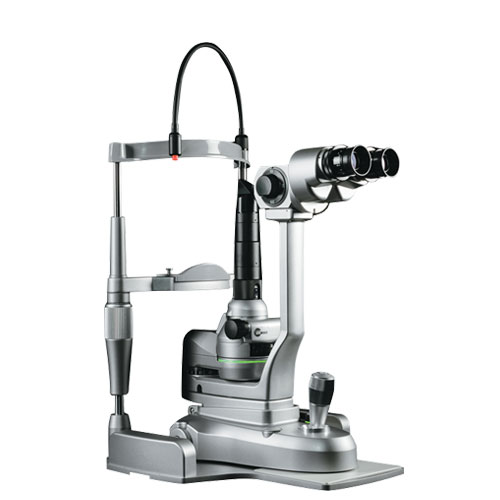

Ultra M2 Slit Lamp
The Marco Ultra M Series of slit lamps expands the boundaries of traditional slit lamp design, function, and performance. Building on the modern methodologies of optical design and engineering that established the original Ultra Series as a market leader, the updated Ultra M Series pays special attention to overall functionality, feel, and movement which was paramount to complementing the sleek new design.
- Galilean optics with 6° converging binocular tubes and 5-step rotating magnification drum
- High-eyepoint, wide-field eyepieces
- Standard 10x and 16x magnification, 25x magnification with 16x eyepiece
- Single-element, high-luminance LED illumination
- Built-in background illumination system for digital imaging
- Lower “compact” light source configuration
- Completely integrated (cable free), low-voltage electronic system
- 0–14mm continuously variable aperture
- Special blue-correction LED, red-free, and cobalt blue filters
- Single-handed joystick control with image-capture trigger switch
- Power/rheostat control conveniently located next to joystick
- Flexible LED patient fixation device
- Self-contained headrest and baseplate assembly
- Accommodates a variety of optional accessories and digital imaging components
- Optional patient handrests available
Slit Lamps /
Ultra M2 Slit Lamp
Features:
- Galilean optics with 6° converging binocular tubes and 5-step rotating magnification drum
- High-eyepoint, wide-field eyepieces
- Standard 10x and 16x magnification, 25x magnification with 16x eyepiece
- Single-element, high-luminance LED illumination
- Built-in background illumination system for digital imaging
- Lower “compact” light source configuration
- Completely integrated (cable free), low-voltage electronic system
- 0–14mm continuously variable aperture
- Special blue-correction LED, red-free, and cobalt blue filters
- Single-handed joystick control with image-capture trigger switch
- Power/rheostat control conveniently located next to joystick
- Flexible LED patient fixation device
- Self-contained headrest and baseplate assembly
- Accommodates a variety of optional accessories and digital imaging components
- Optional patient handrests available
Cutting-edge engineering, elegant design, and loaded with intelligent features

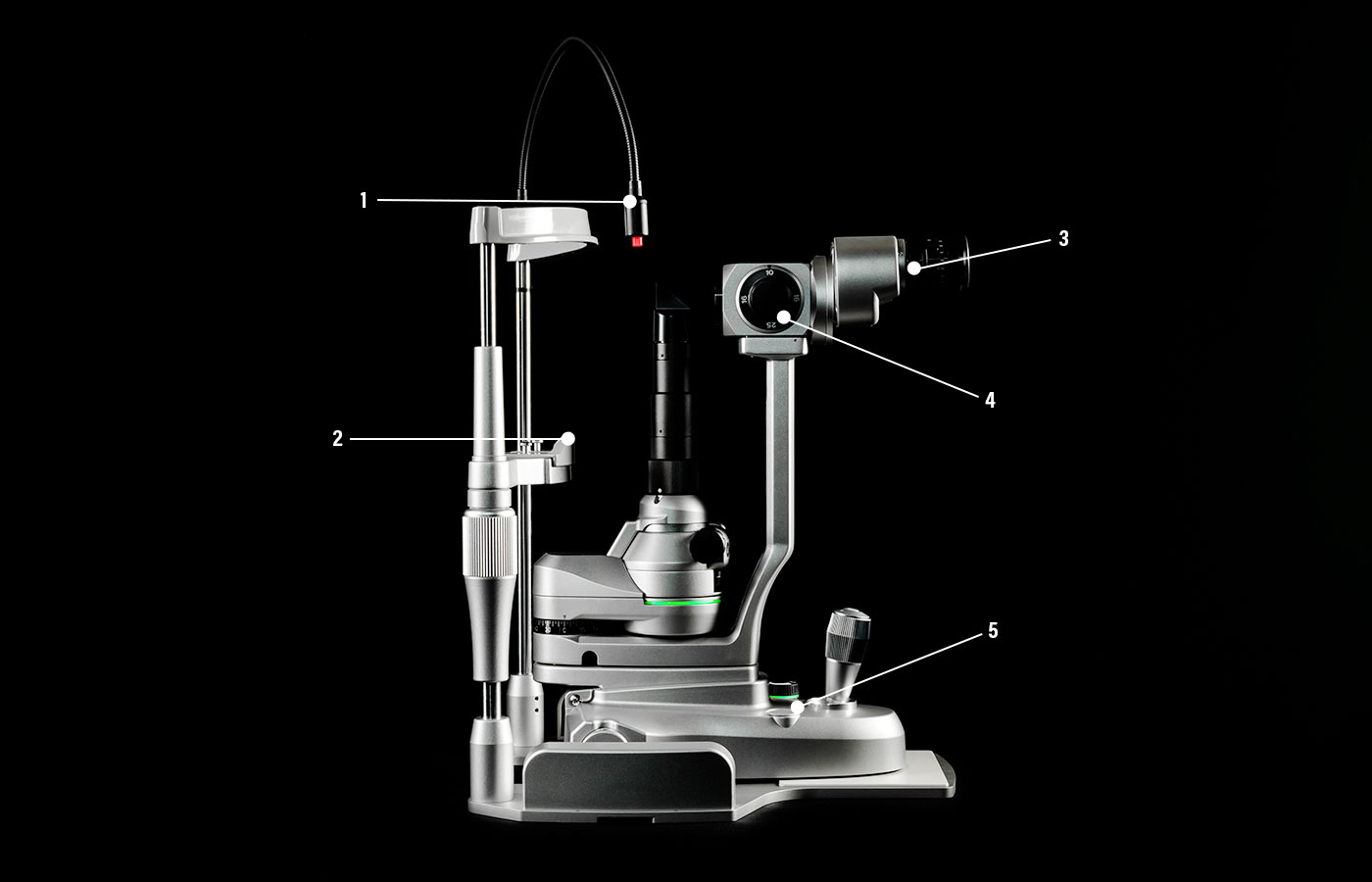

Excellence in Design
Ultra M Series slit lamps feature a sophisticated, elegant design that breaks from conventional philosophies to embrace a more modern appearance. The entire dual LED system of the Ultra M Series has been integrated into the base of the slit lamp, eliminating bulky external transformers and exposed cables. While high-quality materials, paint and finish were carefully selected for lasting durability, the placement of primary functions and controls were left in comfortable, traditional locations.
Ultra Optics Quality
Marco’s legendary Ultra Optics are precision-ground to the highest specifications, utilizing a multi-layered, multi-coated system which transmits light more efficiently while improving contrast, color, and brightness of the viewed image. This sophisticated process not only produces superior light-gathering transmission, but measurably expands the field of view and increases the depth of focus.
Physician Comfort & Control
The Galilean microscope head on the Ultra M2 slit lamp features a natural 6° convergence angle on the binocular tubes to assist with binocular fusion, reduce fatigue, and improve physician comfort. Another unique detail of the Ultra M Series is a flattened area on the magnification knob that helps identify low and high mag positions, allowing the operator to adjust power simply by feel.
Ultra-Clear Anterior & Posterior Observations
Increased light transmission is paramount when utilizing digital slit lamp imaging systems, and the highest possible resolution is essential when quality images need to be captured and integrated into EHR systems. Ultra M Series slit lamps maintain superior resolution and clarity of the anterior segment while improving visibility of the fundus, resulting in the brightest, sharpest images. Plus, the continuously variable 0–14mm slit aperture provides a wider area of anterior segment illumination.
The Marco Ultra M2 Slit Lamp eliminates bulky external transformers and exposed cables.
Optimized LED System
The Ultra M Series illumination system has been engineered to maximize the benefits of superior LED technology: greater visibility and clarity of anatomy and tissue structure. The single-element, high-luminance LED produces a beautifully consistent and uniform light compared to multiple-element LEDs. With a color temperature of 3500K, the LED provides a much brighter, clearer, and sharper image.
Built-In Background Illumination
The Ultra M Series is optimized for advanced anterior segment imaging, documentation, and patient education. A unique, built-in background illumination system is creatively integrated into the primary LED light source and is independently controlled by an additional rheostat located next to the joystick. Because the background and primary illumination share the same LED light source, the image color balance is not compromised. A joystick capture trigger is also standard for convenient and immediate image acquisition.
Filtered Reduction of Blue Light
The blue LED correction filter offers a softer and more comfortable light as the peak of the blue band spectrum of LED light has been corrected for greater comfort during extended, high intensity exposure.
Discover the Power of Ultra M Series Slit Lamps
Ultra M2 Slit Lamp Specifications
Technical Details
Type Binocular Stereomicroscope | Parallel (Galilean) |
---|---|
Light Source | LED |
Light Source Configuration | Compact/Horizontal |
Background Illumination | Yes |
Light Filters | Blue, Red-free, Blue LED Correction |
Slit Width | 0-14mm continuous variable |
Aperture Diaphragm Diameter | (Ø) 14, 8, 5, 3, 0.3mm |
Total # Power Magnifications | 3 (10x, 16x, 25x) |
Magnification Change | 3 Position Rotating Drum |
Eye Pieces | 16x wide-field, high-eyepoint |
Real Field of View | (Ø) 23.3mm, 14mm, 8.8mm |
Interpupillary Adjustment | 52-82mm |
Diopter Adjustment Range | (+/-) 7 Diopters |
Horizontal Coarse Movement | 105mm |
Horizontal Fine Movement | 15mm |
Vertical Movement | 30mm |
Fixation Light Source | Red LED on Flexible Arm |
Large Patient Chin Rest | Not standard (option only) |
Chinrest Elevation | 85mm |
Power
Power Supply | AC100V-240V (+/-10%) |
---|---|
Power Consumption | DC5V 2A |
Weight
Mass (Approximate) | 11kg |
---|
