Ultra M3 Slit Lamp

Our Ultra M3 slit lamp uses convergent (greenough) type binocular stereomicroscope and tower with tilt for light source configuration.

Ultra M3 Slit Lamp

Our Ultra M3 slit lamp uses convergent (greenough) type binocular stereomicroscope and tower with tilt for light source configuration. The M3 conventional slit lamp also features 2 power magnifications (10x, 16x), blue, red-free, blue LED correction light filters, 2-position switch revolving objective magnification change, and 10x eye pieces.

  • Single-element, high-luminance LED illumination
  • Standard, 2-power convergent Greenough optics
  • 0-14mm continuously adjustable aperture
  • Completely integrated (cable free), low voltage electronic system
  • Cobalt Blue, Red-free, Blue LED correction filters
  • Self-contained headrest & baseplate assembly
Category:
>

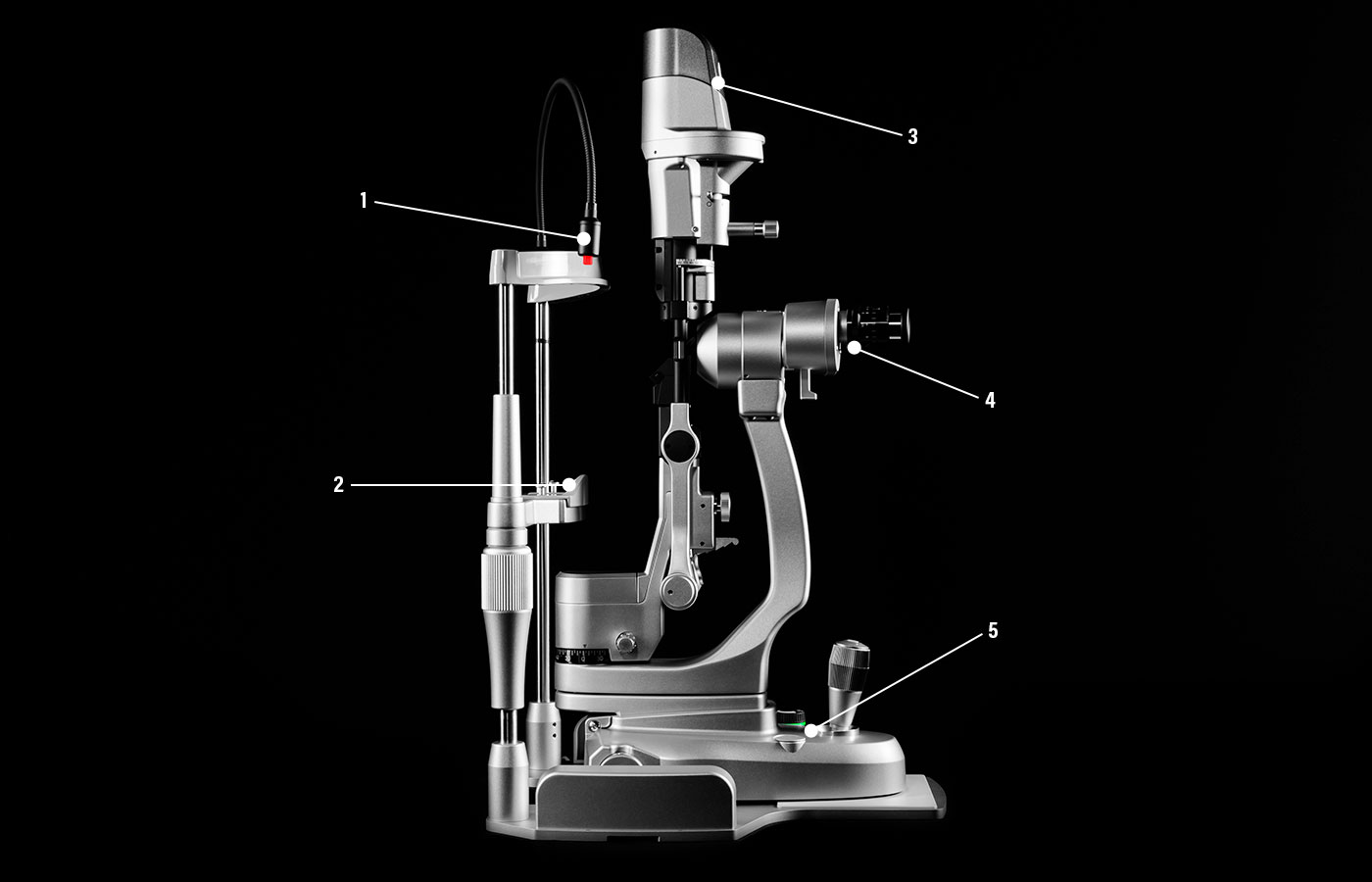

LED Fixation Target

Patient fixation target is a red LED on a continuously flexible shrouded cable.

Headrest/Baseplate

Self-contained headrest & baseplate assembly

Tower Light Source

Tower with Tilt for Light Source Configuration with Background Illumination.

Convergent Type Optics

Standard, 2-power Convergent (Greenough) Type Binocular Stereomicroscope

Background Illumination

The intensity control of the background illumination is easily found and adjusted with a single, illuminated knob, conveniently placed adjacent to the joy stick.
  • LED Fixation Target

    Patient fixation target is a red LED on a continuously flexible shrouded cable.
  • Headrest/Baseplate

    Self-contained headrest & baseplate assembly
  • Tower Light Source

    Tower with Tilt for Light Source Configuration with Background Illumination.
  • Convergent Type Optics

    Standard, 2-power Convergent (Greenough) Type Binocular Stereomicroscope
  • Background Illumination

    The intensity control of the background illumination is easily found and adjusted with a single, illuminated knob, conveniently placed adjacent to the joy stick.

    20 Years ago, Marco changed the boundaries of conventional slit lamp design and performance with the original Ultra Series. Today, the Ultra M Series introduces a new era of diagnostic empowerment. Marco has again established the latest standard in slit lamp examinations.

    LED Illumination

    The new LED illumination, with a color temperature of 3500 K, allows greater visibility and clarity of anatomy and tissue structure, with brighter and sharper light. A single element, high-luminance LED provides a beautifully consistent and uniform light compared to multiple element LEDs.

    Marco Ultra M2 Slit Lamp LED Illumination

    Marco Ultra M2 Slit Lamp 3 Power Optics

    2 Power Optics

    The M3 uses convergent (Greenough) type binocular stereomicroscope and tower with tilt for light source configuration. The M3 features 2 power magnifications (10x, 16x), 2-position switch revolving objective magnification Change, and 10x eye pieces.

    Cable Free Design

    The Ultra M Slit Lamps are neat and compact with no exposed wiring, giving them a noticeably sleek and stylish appearance. Contemporary and durable finishes have been selected both for lasting application and patient appeal.

    Marco Ultra M3 Slitlamp Cable Free Compact Design

    Marco Ultra M2 Slitlamp Self Contained Headrest and Base

    Self Contained Headrest

    A self-contained headrest & baseplate assembly with a comfortable expanded chin rest design for easier patient access.

    ULTRA M3 SLIT LAMP VIDEOS



    Ultra M3 Slit Lamp Specs

    Technical Details

    Type Binocular Stereomicroscope Convergent (Greenough)
    Light Source LED
    Light Source Configuration Tower with Tilt
    Background Illumination Not standard (option only)
    Light Filters Blue, Red-free, Blue LED Correction, Yellow
    Slit Width 0-14mm continuous variable
    Aperture Diaphragm Diameter (Ø) 14, 10, 5, 3, 2, 1, 0.2mm
    Total # Power Magnifications 2 (10x, 16x), (3 (25x with 16x eyepieces))
    Magnification Change 2-position switch revolving objective
    Eye Pieces 10x, (16x optional)
    Real Field of View (Ø) 18, 11.25 (with 10x eyepieces) 15, 9.3mm (with 16x eyepieces)
    Interpupillary Adjustment 52-82mm
    Diopter Adjustment Range (+/-) 8 diopters w 10x eyepieces (+/-) 10 diopters w 16x eyepieces
    Horizontal Coarse Movement 105mm
    Horizontal Fine Movement 15mm
    Vertical Movement 30mm
    Fixation Light Source Red LED on Flexible Arm
    Large Patient Chin Rest Not standard (option only)
    Chinrest Elevation 95mm

    Power

    Power Supply AC100V-240V (+/-10%)
    Power Consumption DC5V 2A

    Weight

    Mass 12.5kg

    SLIT LAMP SUCCESS STORIES

    Experience the uncompromised quality, control, and reliability of the Ultra M Series embodied in the most contemporary and functionally empowering slit lamp design ever.

    ULTRA M3 IN PUBLICATIONS

    PRESS RELEASES

    Ultra M3 Slit Lamp

    LED Illumination
    2 Power Optics
    0-14mm Aperture
    Cable Free Electronics
    Portable Control Pad
    LED Correction Filters
    Self-Contained Headrest
